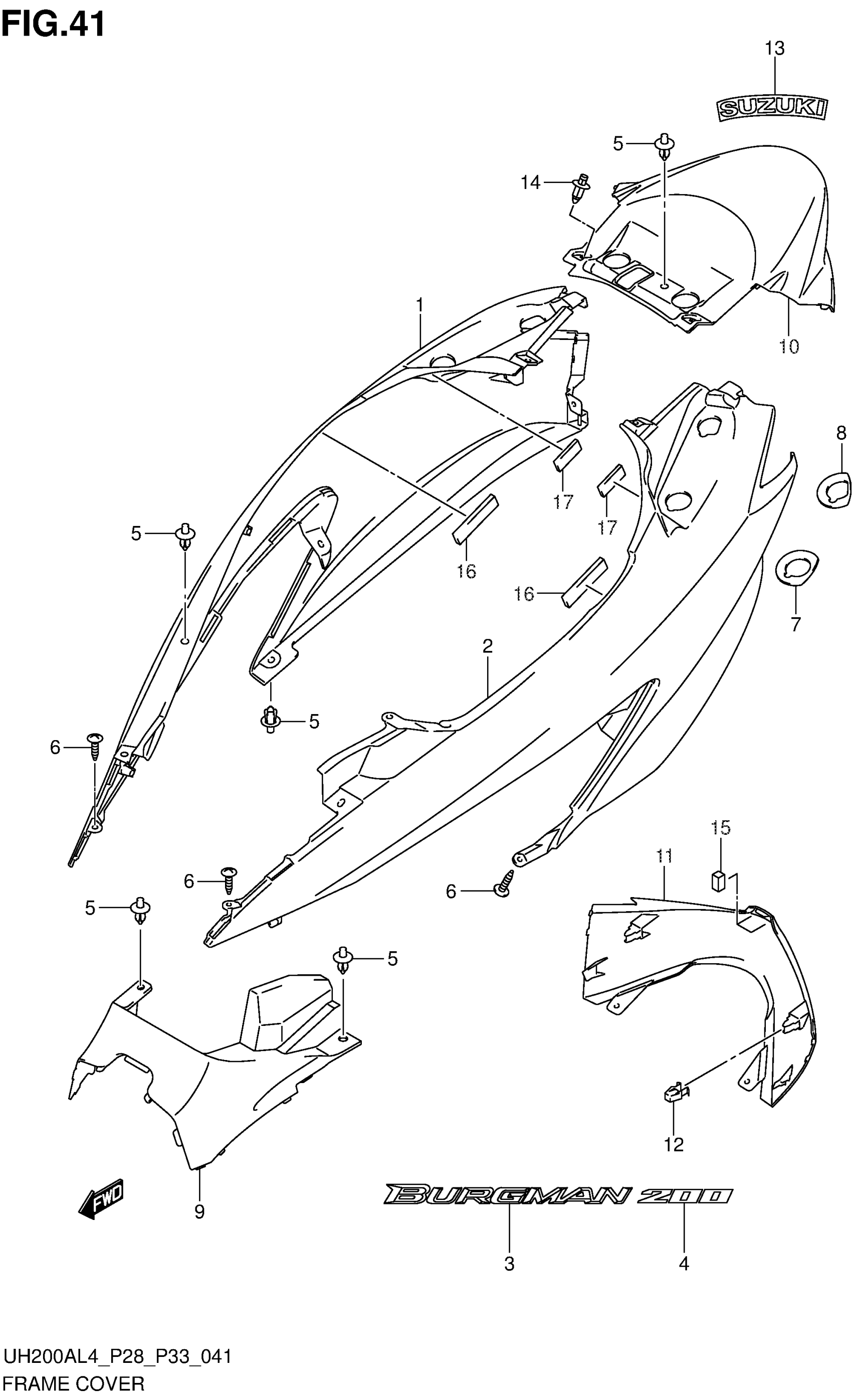

Suzuki UH200AL4 (2014) FRAME COVER Diagram

#

Description
Price

1

COVER,FRAME,R This part replaces 47111-12JA0-W6V.

47111-12JA2-W6V

$135.78

1

COVER, FRAME RH (GRAY)

47111-12JA0-PGZ

Unavailable

1

COVER, FRAME RH (BLACK)

47111-12JA0-YKV

Unavailable

1

COVER, FRAME RH (WHITE) This part replaces 47111-12JA0-YUH.

47111-12JA1-YUH

$127.67

2

COVER,FRAME,L This part replaces 47211-12JA0-W6V.

47211-12JA2-W6V

$113.52

2

COVER, FRAME LH (GRAY)

47211-12JA0-PGZ

Unavailable

2

COVER, FRAME LH (BLACK)

47211-12JA0-YKV

Unavailable

2

COVER, FRAME LH (WHITE) This part replaces 47211-12JA0-YUH.

47211-12JA2-YUH

$120.45

3

EMBLEM,FRAME COVER

68131-12JA0

$44.02

4

EMBLEM "200" (GRAY/SILVER) | FOR W6V

68131-03H30-ALY

Unavailable

4

EMBLEM "200" (SILVER/GRAY) | FOR PGZ

68131-03H30-AJK

$8.41

4

EMBLEM "200" (GRAY/BLACK) | FOR YKV

68131-03H30-AHW

Unavailable

4

EMBLEM,"200" (GRAY/WHITE) | FOR YUH

68131-03H30-ALZ

$10.17

5

CLIP (BLACK)

09409-08308-5ES

$1.97

6

SCREW

03541-0516A

$1.37

7

CUSHION,FRAME COVER FR This part replaces 47161-12JA0.

47161-12JB0

$3.13

8

CUSHION,FRAME COVER RR This part replaces 47162-12JA0.

47162-12JB0

$3.13

9

COVER,FRAME FR (BLACK)

47351-12JA0-291

$53.93

10

COVER, CENTER (SILVER)

47311-12JA0-W6V

Unavailable

10

COVER, CENTER (GRAY)

47311-12JA0-PGZ

$49.98

10

COVER, CENTER (BLACK)

47311-12JA0-YKV

$55.62

10

COVER,FRAME CTR (WHITE)

47311-12JA0-YUH

$73.83

11

COVER, REAR LOWER (SILVER)

47411-12JA0-W6V

Unavailable

11

COVER, REAR LOWER (GRAY)

47411-12JA0-PGZ

$45.62

11

COVER, REAR LOWER (BLACK)

47411-12JA0-YKV

Unavailable

11

COVER,FRAME LWR (WHITE)

47411-12JA0-YUH

$84.27

12

CLIP

09409-08326

$2.45

13

EMBLEM "SUZUKI" (GRAY/SILVER) | FOR W6V

68131-03HB0-ALY

Unavailable

13

EMBLEM "SUZUKI" (SILVER/GRAY) | FOR PGZ

68131-03HB0-AJK

Unavailable

13

EMBLEM "SUZUKI" (GRAY/BLACK) | FOR YKV

68131-03HB0-AHW

$9.48

13

EMBLEM,"SUZUKI" (GRAY/WHITE) | FOR YUH

68131-03HB0-ALZ

$11.78

14

CLIP

09409-06329

$2.80

15

CUSHION, FR BOX NO.4

92152-03H00

Unavailable

16

CUSHION, FRAME COVER UPPER NO.1

47163-12JA0

$3.24

17

CUSHION, FRAME COVER UPPER NO.2

47164-12JA0

$3.80
