2014 Suzuki UH200AL4 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2014 Suzuki UH200AL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

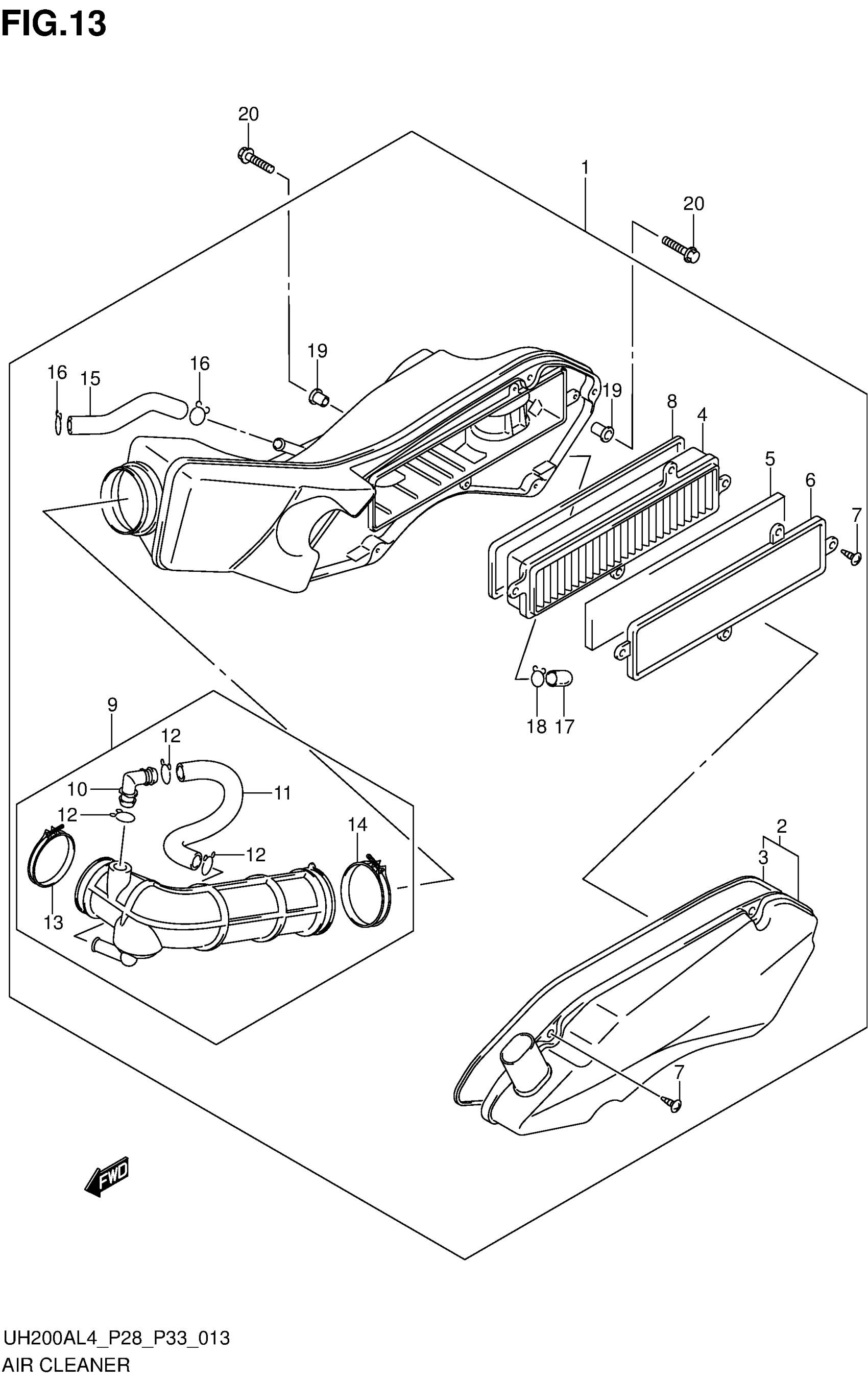

2014 Suzuki UH200AL4 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY,AI This part replaces 13700-03H01.

13700-03H03

1
Out of stock

2

.CAP This part replaces 13740-03H00.

13740-03H30

1
Out of stock

3

GASKET

13747-03H00

1
Out of stock

4

.FILTER This part replaces 13780-03H00.

13780-03H30

1
Out of stock

5

PREFILTER This part replaces 13782-03H00.

13782-03H50

1
Out of stock

6

HOLDER

13791-03H00

1
Out of stock

7

SCREW

03141-0516A

9
Out of stock

8

GASKET This part replaces 13746-03H00.

13746-03H50

1
Out of stock

9

TUBE, OUTLET

13880-03H00

1
Out of stock

10

JOINT, BREATHER TUBE

13858-14D20

1

$7.41

In stock

11

HOSE, CHAMBER

13884-03H00

1
Out of stock

12

CLIP

09401-14301

3
Out of stock

13

CLAMP

09402-50208

1
Out of stock

14

CLAMP

09402-62208

1
Out of stock

15

TUBE, BREATHER

13853-03H00

1
Out of stock

16

CLIP

09401-14301

2
Out of stock

17

PLUG, DRAIN

19878-10G00

1
Out of stock

18

CLIP

09401-14301

1
Out of stock

19

COLLAR

13912-20E00

2
Out of stock

20

BOLT

01550-0625B

2
Out of stock
