1972 Yamaha U7E (U7E) Front Panel Steering Diagram

← All diagrams

Find the part on the Front Panel Steering diagram for your 1972 Yamaha U7E (U7E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

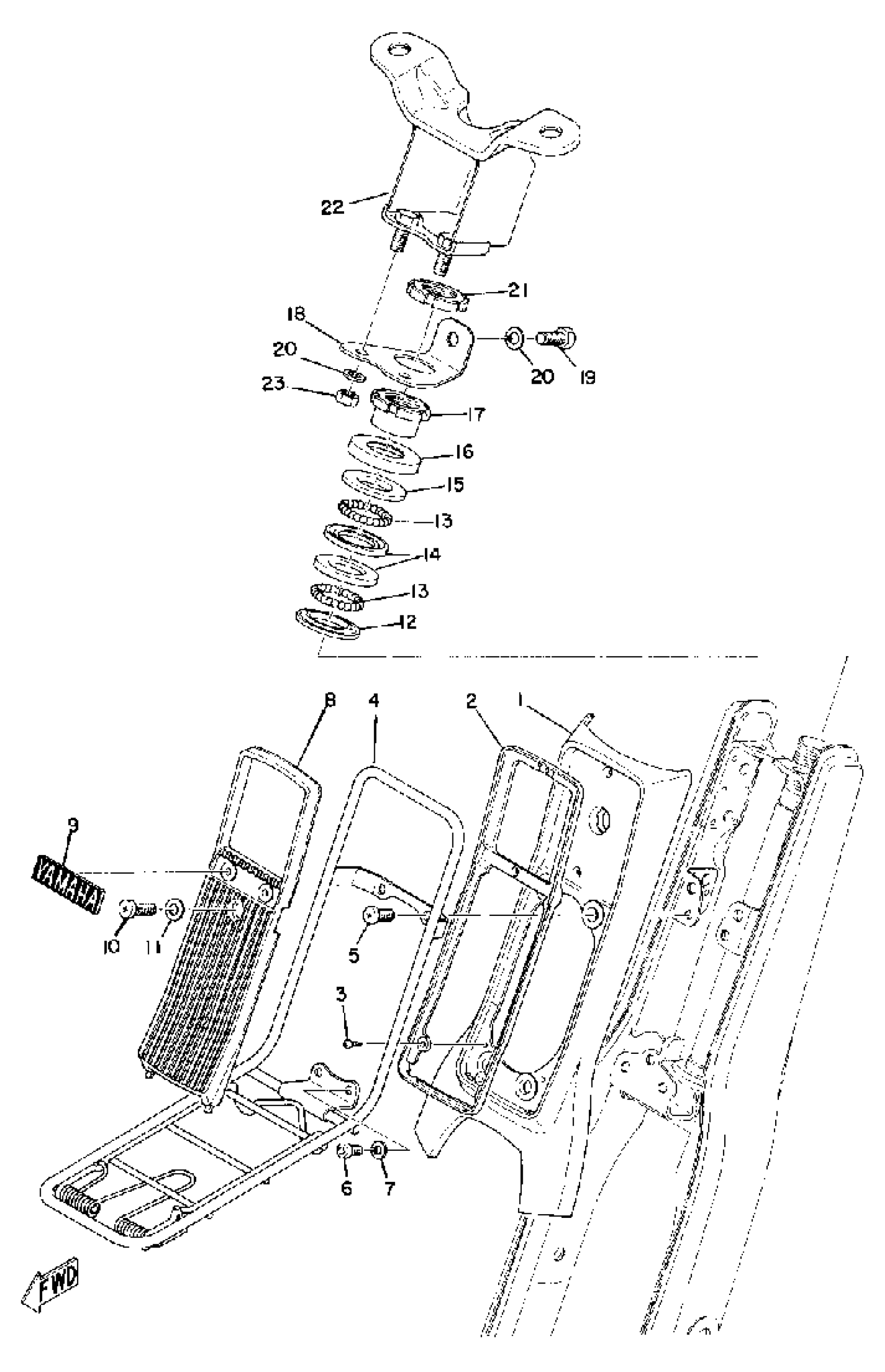

1972 Yamaha U7E (U7E) Front Panel Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL, FRONT

(296-23391-21-71)

1
Out of stock

2

MOLD, FRONT

(296-23398-00-00)

1
Out of stock

3

SCREW, SPECIAL

(120-23396-00-00)

1
Out of stock

4

FRONT CARRIER ASSEMBLY

(296-24800-00-00)

1
Out of stock

5

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

6

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

PANEL, FRONT 2

(296-23397-00-00)

1
Out of stock

9

EMBLEM

(296-23395-00-00)

1
Out of stock

10

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

11

WASHER, PLATE (371)

90201-06431-00

1
Out of stock

12

RACE, BALL 4

BP2-23414-00-00

1
Out of stock

13

BALL

93503-16003-00

1

$2.14

In stock

14

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

15

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

16

COVER, BALL RACE

122-23416-00-00

—

$6.40

In stock

17

NUT, SPEC''L SHAPE

(90179-25050-00)

1
Out of stock

18

PLATE, HANDLE

(296-23463-01-00)

1
Out of stock

19

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

20

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

21

NUT

90179-25004-00

—

$20.78

In stock

22

BRACKET, HANDLE

(296-23461-02-33)

1
Out of stock

23

NUT(6L2)

95333-08600-00

—

$3.20

In stock
