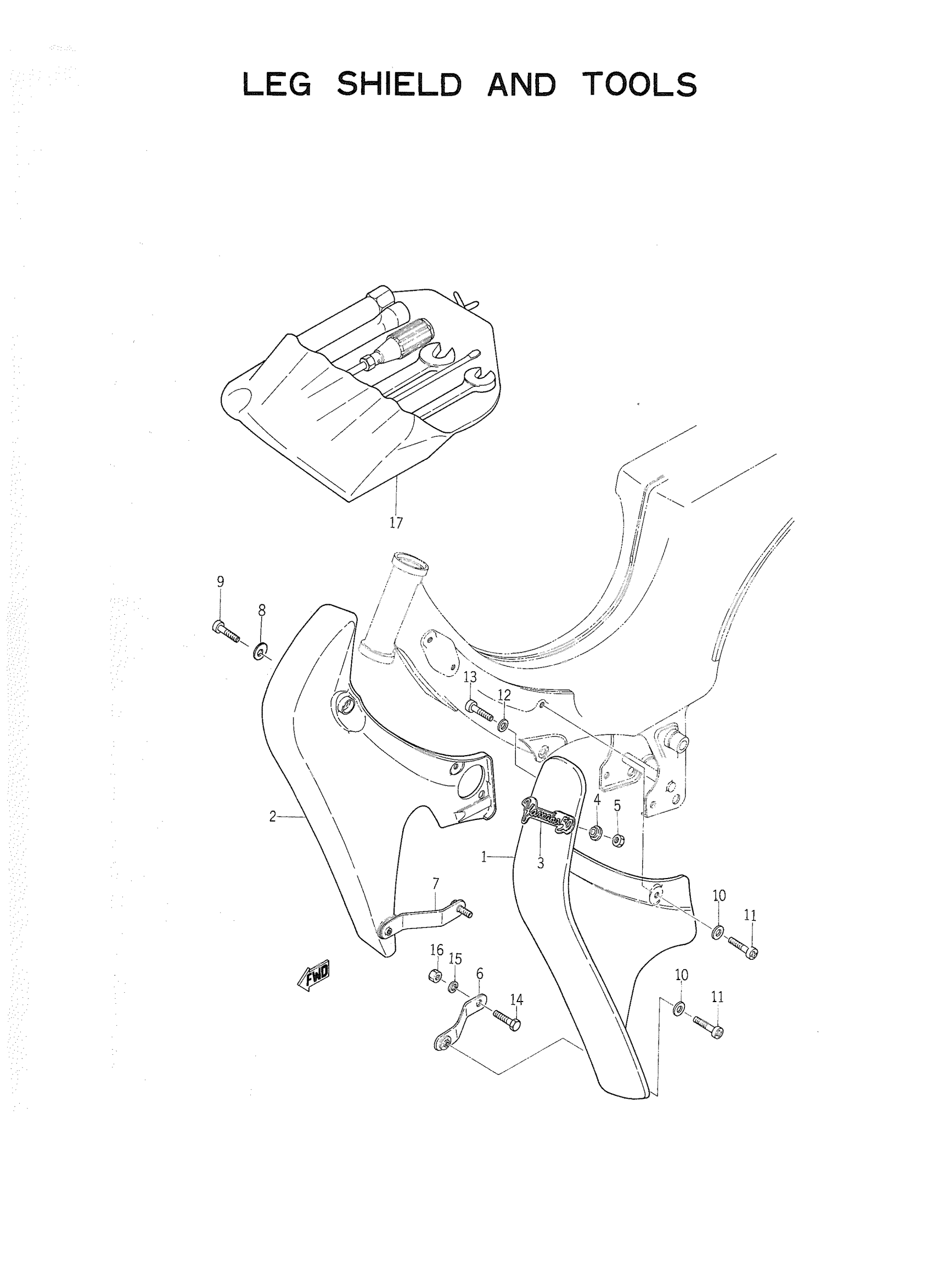

Yamaha U5 (U5) 116 1966 LEG SHIELD Diagram

#

Description

Price

1

LEG SHIELD LH

116-28311-01-00

Unavailable

2

LEG SHIELD RH

116-28312-00-00

Unavailable

3

EMBLEM

116-28315-00-00

Unavailable

4

DAMPER, EMBLEM

116-28316-01-00

Unavailable

5

NUT SPRING 116283170100

90183-04005-00

Unavailable

6

STAY (LH)

116-28321-00-00

Unavailable

7

STAY (RH)

116-28322-00-00

Unavailable

8

WASHER, LEG SHIELD

116-28323-01-00

Unavailable

9

NUT, HEXAGON

95380-06600-00

$4.13

10

WASHER, PLATE

90201-06380-00

$0.57

11

SCREW, PAN

98507-06014-00

$6.18

12

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

13

SCREW PAN HEAD

98580-06010-00

Unavailable

14

BOLT

91201-08100-00

Unavailable

15

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

16

NUT(6L2)

95333-08600-00

Unavailable

17

TOOL KIT

1E7-W2810-00-00

Unavailable
