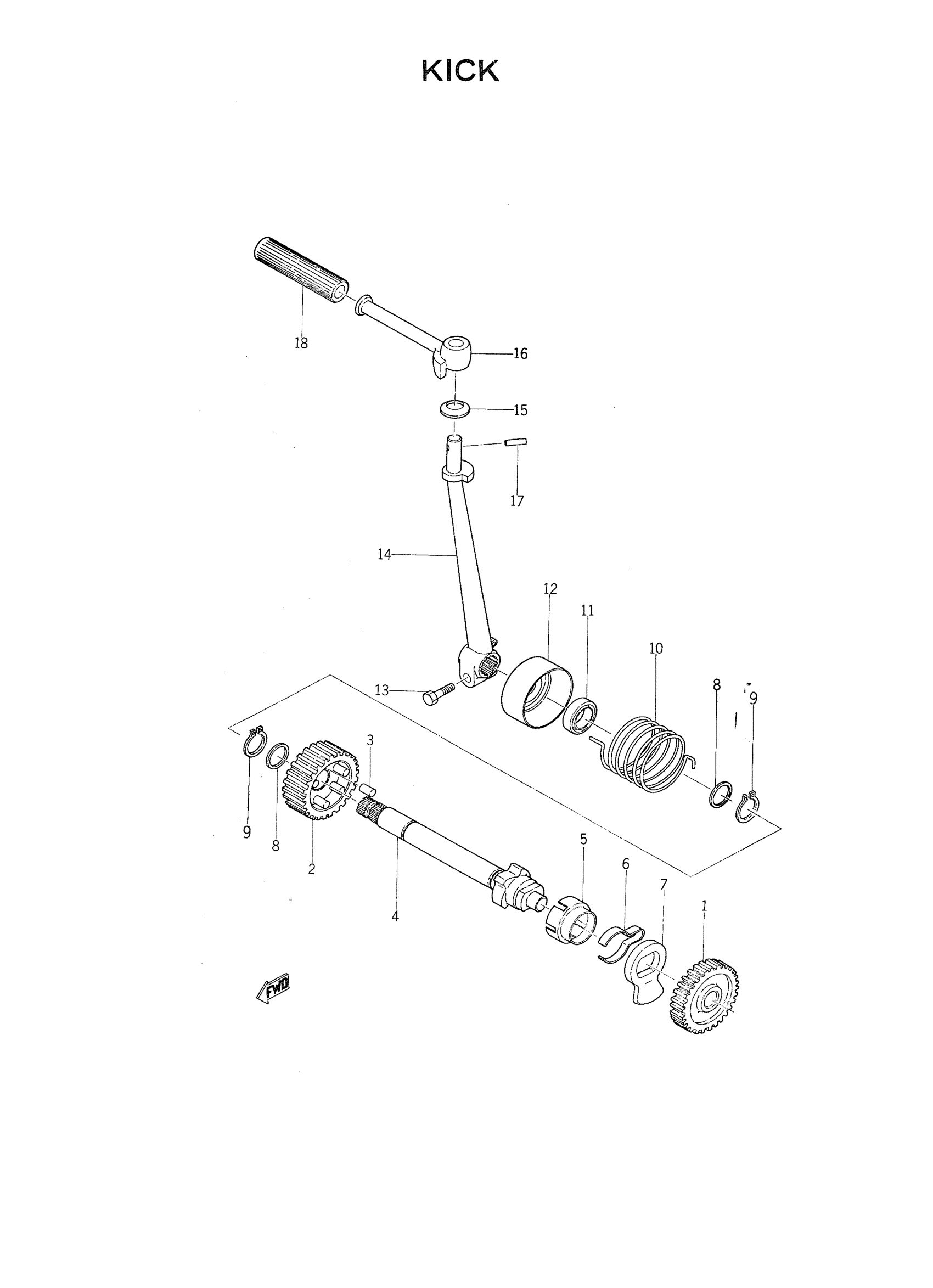

Yamaha U5 (U5) 116 1966 KICK STARTER Diagram

#

Description

Price

1

GEAR, FREE

116-15658-00-00

Unavailable

2

GEAR, KICK

116-15461-00-00

Unavailable

3

PIN, DOWEL (296)

93606-07082-00

$6.68

4

KICK AXLE ASSEMBLY

116-15660-01-00

Unavailable

5

RETAINER, KICK ROLLER

102-15689-00-00

Unavailable

6

SPRING,TORSION

90508-26044-00

Unavailable

7

STOPPER

102-15668-00-00

Unavailable

8

SHIM

131-15644-00-12

Unavailable

9

CIRCLIP(1AR)

99009-15400-00

Unavailable

10

SPRING,TORSION

90508-26043-00

Unavailable

11

OIL SEAL (15X26X6-102)

93109-15001-00

Unavailable

12

GUIDE, SPRING

131-15664-00-00

Unavailable

13

BOLT, HEXAGON

97017-06020-00

$2.55

14

KICK CRANK

102-15610-00-00

Unavailable

15

WASHER,WAVE

90206-10014-00

Unavailable

16

. LEVER, KICK

122-15612-00-00

Unavailable

17

. PIN, DOWEL

93604-18017-00

Unavailable

18

COVER, KICK LEVER

156-15618-01-00

Unavailable
