1977 Yamaha TZ750 (TZ750D) Steering Diagram

← All diagrams

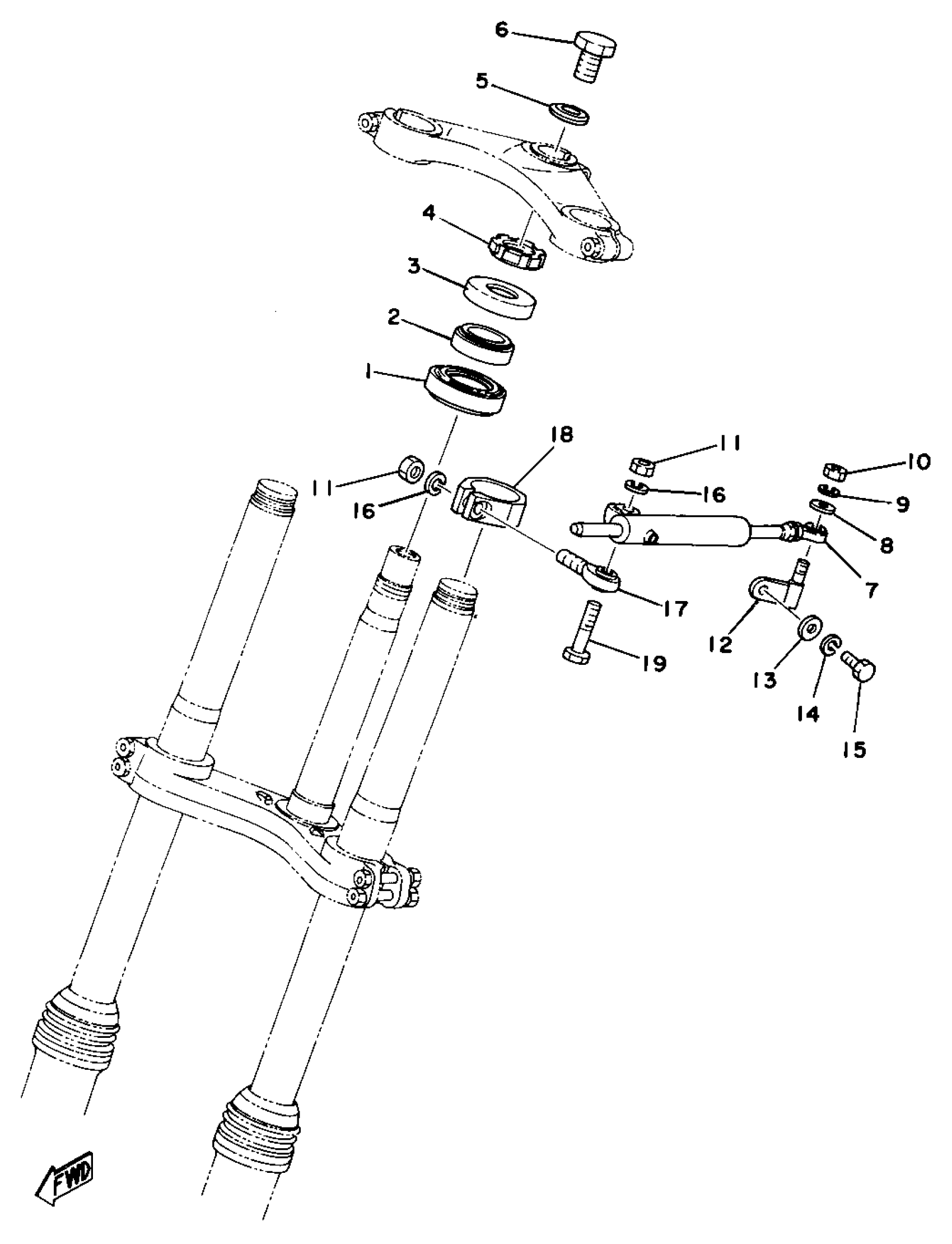

Find the part on the Steering diagram for your 1977 Yamaha TZ750 (TZ750D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha TZ750 (TZ750D) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BEARING, TAPRD #32

93332-00002-00

1
Out of stock

2

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

3

COVER, BALL RACE

136-23415-00-00

1

$7.71

In stock

4

NUT

90179-25004-00

1

$20.78

In stock

5

WASHER, SPECIAL SHAPE

90209-14022-00

1
Out of stock

6

BOLT (322-23451-00)

90109-14235-00

1
Out of stock

7

HDLBR SMY DMPR ASSEMBLY

(1X2-23490-00-00)

1
Out of stock

8

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

NUT(650)

95380-06700-00

1

$6.17

In stock

11

. NUT

95380-08700-00

1

$3.07

In stock

12

PIECE, DISTANCE

(1X2-23494-00-00)

1
Out of stock

13

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

16

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

17

JOINT

(1X2-23491-01-00)

1
Out of stock

18

STAY, DAMPER

(1X2-23495-00-00)

1
Out of stock

19

BOLT

97014-08040-00

—

$5.26

In stock
