1977 Yamaha TZ750 (TZ750D) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1977 Yamaha TZ750 (TZ750D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

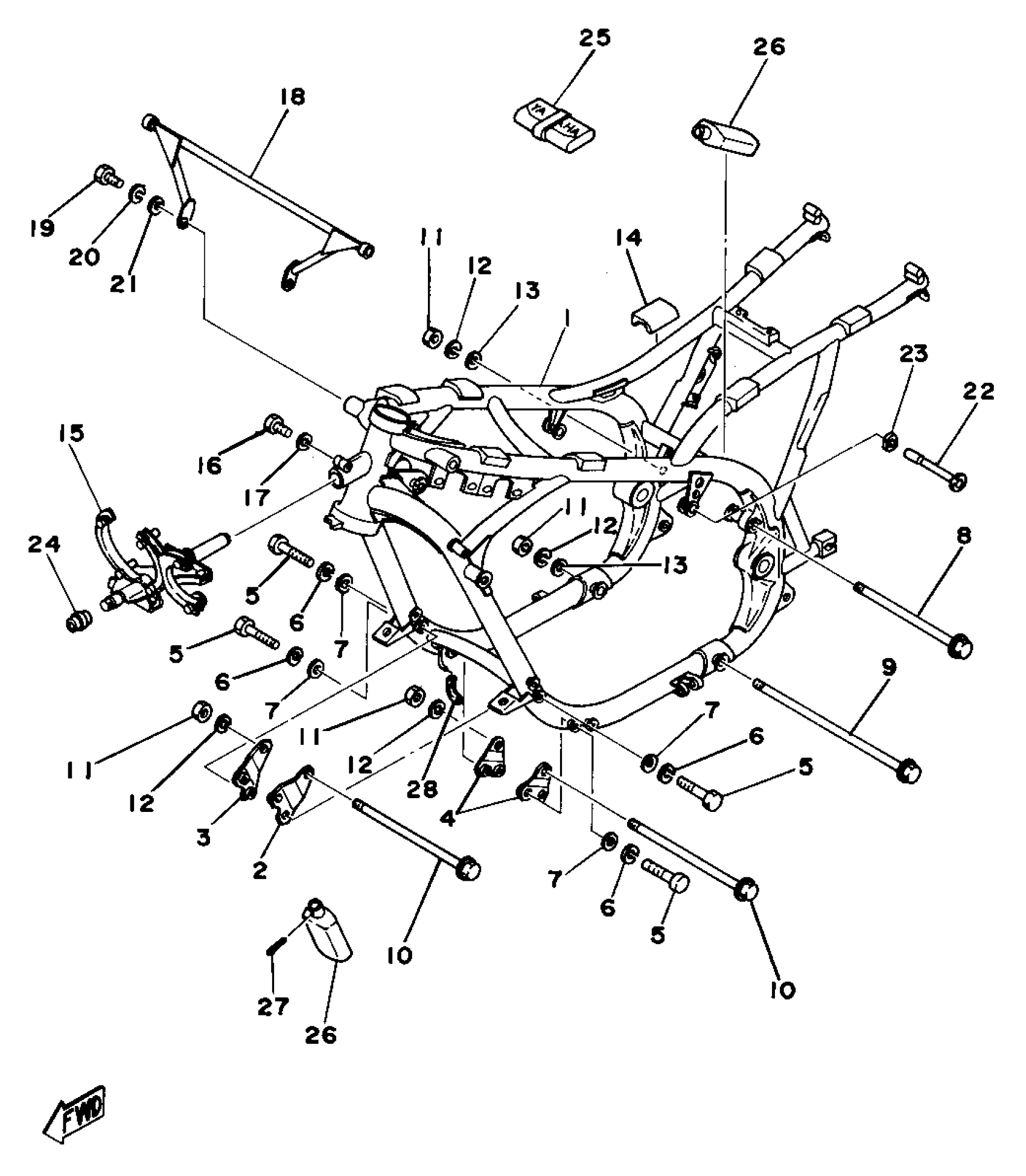

1977 Yamaha TZ750 (TZ750D) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(1X2-21110-00-33)

1
Out of stock

2

BRACKET, ENGINE 1

(1X2-21411-01-00)

1
Out of stock

3

BRACKET, ENGINE 2

(1X2-21419-01-00)

1
Out of stock

4

BRACKET, ENGINE 3

(1X2-21429-01-00)

1
Out of stock

5

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

8

BOLT, ENG MNTNG 1

(1X2-21481-01-00)

1
Out of stock

9

BOLT, ENG MNTNG 2

(1X2-21482-01-00)

1
Out of stock

10

BOLT, ENG MNTNG 3

(1X2-21483-01-00)

1
Out of stock

11

NUT (682)

95380-10700-00

1

$5.78

In stock

12

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

12

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

13

WASHER, PLATE

92990-10600-00

1

$2.61

In stock

14

DAMPER,LOCATING 1

240-24181-00-00

1

$11.58

In stock

15

STAY 1

(1X2-28356-00-00)

1
Out of stock

16

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

17

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

18

STAY 2

(1X2-28357-00-00)

1
Out of stock

19

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

22

STAY 3

(1X2-28358-00-00)

1
Out of stock

23

NUT

(1X2-28362-00-00)

1
Out of stock

24

DAMPER

240-28371-00-33

1
Out of stock

25

TOOL, SPECIAL

(1X2-28116-00-00)

1
Out of stock

26

TANK, OIL

(1X2-21751-00-00)

1
Out of stock

27

PIN, COTTER

91490-20025-00

—

$1.31

In stock

28

HOSE (L180)

90445-094K7-00

—
Out of stock
