1977 Yamaha TZ750 (TZ750D) Crankcase Diagram

← All diagrams

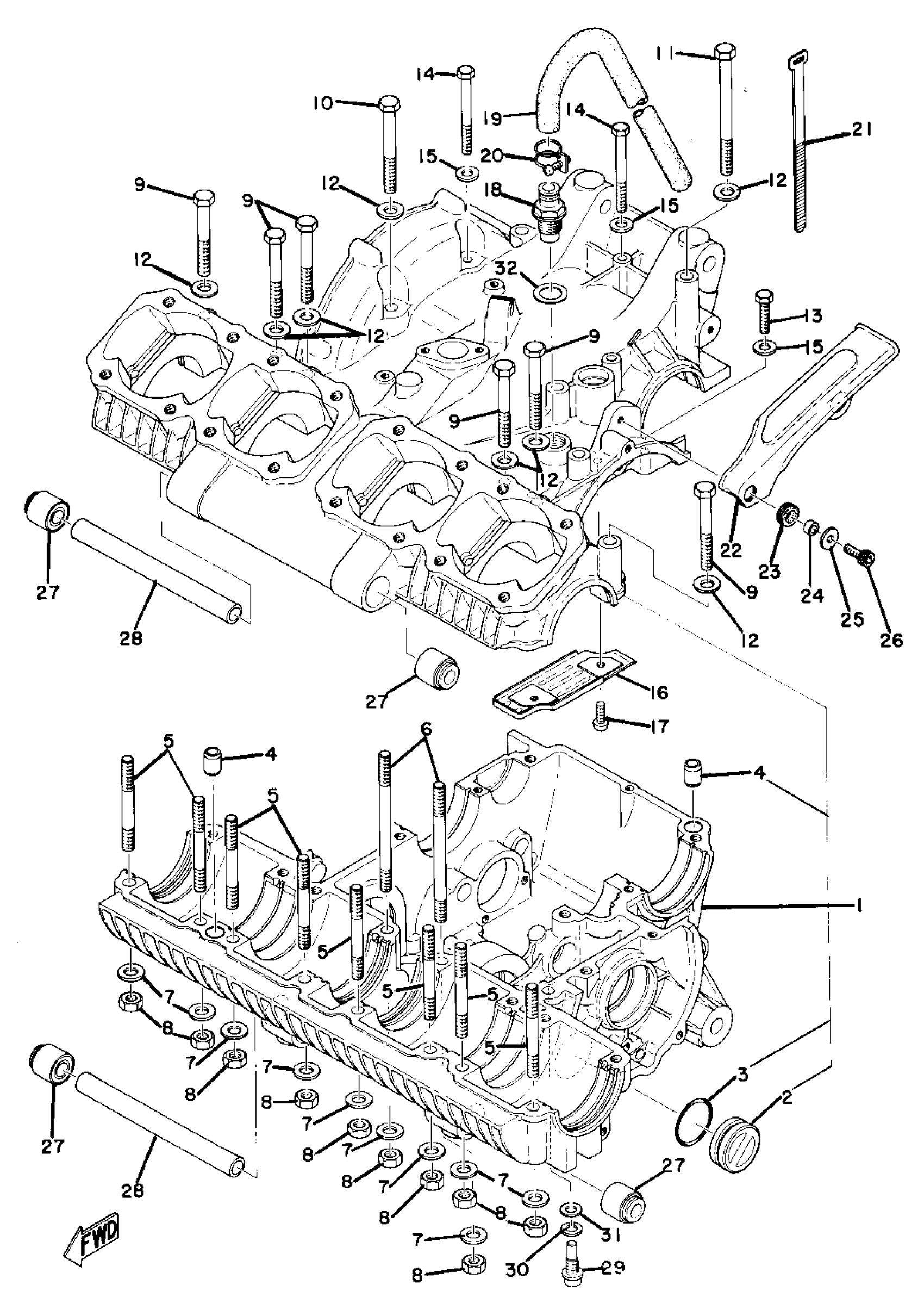

Find the part on the Crankcase diagram for your 1977 Yamaha TZ750 (TZ750D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha TZ750 (TZ750D) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY (1X2-15100-00)

409-15100-01-00

1
Out of stock

2

PLUG, SPEC''L SHAPE

(90338-35019-00)

1
Out of stock

3

O-RING (371)

93210-29196-00

1
Out of stock

4

PIN, DOWEL

99530-12016-00

1
Out of stock

5

BOLT,STUD

90116-08371-00

1
Out of stock

6

BOLT, STUD (1A1)

90116-08232-00

1
Out of stock

7

WASHER, PLAIN

92990-08200-00

1
Out of stock

8

NUT(6L2)

95333-08600-00

1
Out of stock

9

BOLT (663)

97013-08060-00

1
Out of stock

10

BOLT(6TC)

97027-08070-00

—
Out of stock

11

BOLT, HEXAGON

97027-08100-00

1
Out of stock

12

WASHER, PLAIN

92990-08200-00

1
Out of stock

13

BOLT(3RV)

97014-06035-00

1
Out of stock

14

BOLT(62J)

97013-06065-00

1
Out of stock

15

YBS66-6 WASHER, PLAIN

92990-06200-00

1
Out of stock

16

PLATE, BREATHER

(409-11165-01-00)

1
Out of stock

17

SCREW PAN HEAD

98580-06010-00

—
Out of stock

18

BREATHER

(409-15371-01-00)

1
Out of stock

19

HOSE

(90445-16202-00)

1
Out of stock

20

CLAMP, HOSE

(90460-16072-00)

1
Out of stock

21

BAND, SWITCH CORD

437-83936-11-00

—
Out of stock

22

COVER, CHAIN CASE

(409-15418-01-00)

1
Out of stock

23

GROMMET (141-82596-00)

90480-12096-00

1
Out of stock

24

SPACER

90560-05001-00

1
Out of stock

25

WASHER, PLATE

90201-06M08-00

1
Out of stock

26

BOLT, SOCKET

91317-05010-00

—
Out of stock

27

DAMPER, ENG MOUNT 1

3XV-15316-10-00

1
Out of stock

28

SPACER

(90560-11134-00)

1
Out of stock

29

BOLT

(90109-08259-00)

1
Out of stock

30

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

31

.. WASHER, PLATE

92990-08600-00

1
Out of stock

32

GASKET

90430-16048-00

1
Out of stock
