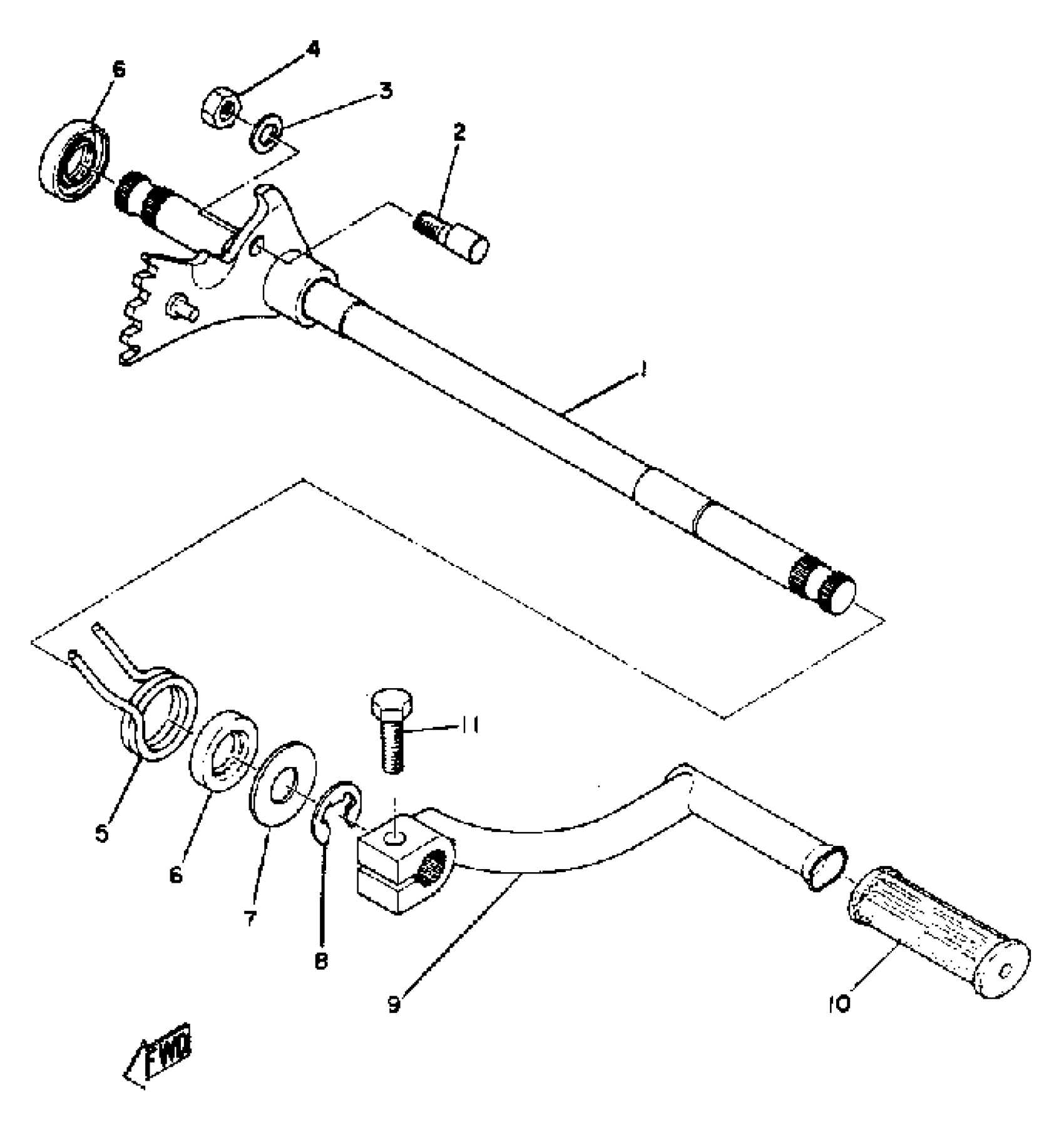

Yamaha TZ750A (TZ750) 1974 SHIFTER 2 Diagram

#

Description
Price

1

SHIFT SHAFT ASSEMBLY.1

(409-18101-01-00)

Unavailable

2

SCREW 214181860000

90149-06017-00

$5.59

3

WASHER, SPRING

92995-06100-00

$2.95

4

NUT, HEXAGON

95380-06600-00

$4.11

5

SPRING TORSION 214181240000

90508-32052-00

$5.23

6

SEAL, OIL (30X)

93102-12321-00

$9.45

7

WASHER, PLATE (353)

90201-12575-00

$5.75

8

CIRCLIP

99006-10600-00

$6.45

9

PEDAL, SHIFT

(409-18111-01-93)

Unavailable

10

COVER

240-18113-00-00

$16.08

11

BOLT, HEXAGON

97017-06020-00

$2.37
