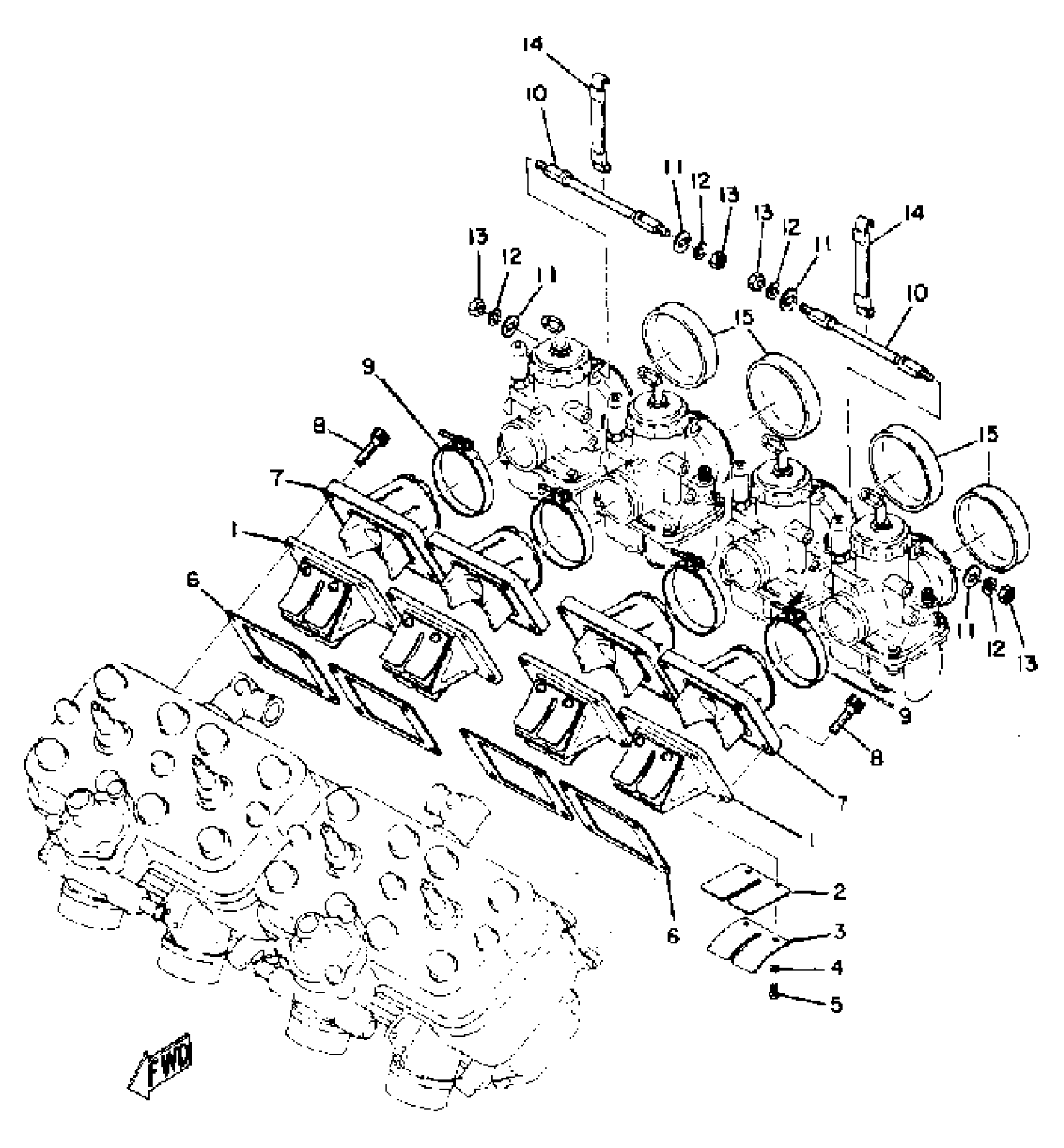

Yamaha TZ750A (TZ750) 1974 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSY

10V-13610-01-00

$128.18

2

REED VALVE 1

10V-13613-01-00

$24.97

3

. STOPPER, REED VALVE (10V-12616-01-00)

1UA-13616-00-00

Unavailable

4

WASHER, SPRING

92990-03100-00

$5.75

5

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

6

GASKET, VALVE SEAT

3TT-13621-00-00

$16.16

7

JOINT, CARBURETOR

409-13565-00-00

Unavailable

8

BOLT,SOCKET

91317-06025-00

$1.91

9

CLAMP HOSE 278144550000

90460-49058-00

$6.29

10

SCREW, ROD

(240-14486-00-00)

Unavailable

11

WASHER, SPEC''L SHAP

(90209-10033-00)

Unavailable

12

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

13

NUT, HEXAGON

95380-06600-00

$4.11

14

HOLDER

(294-14491-00-00)

Unavailable

15

COVER, MIXING

240-14157-00-00

Unavailable
