1974 Yamaha TZ750 (TZ750A) Front Fork Diagram

← All diagrams

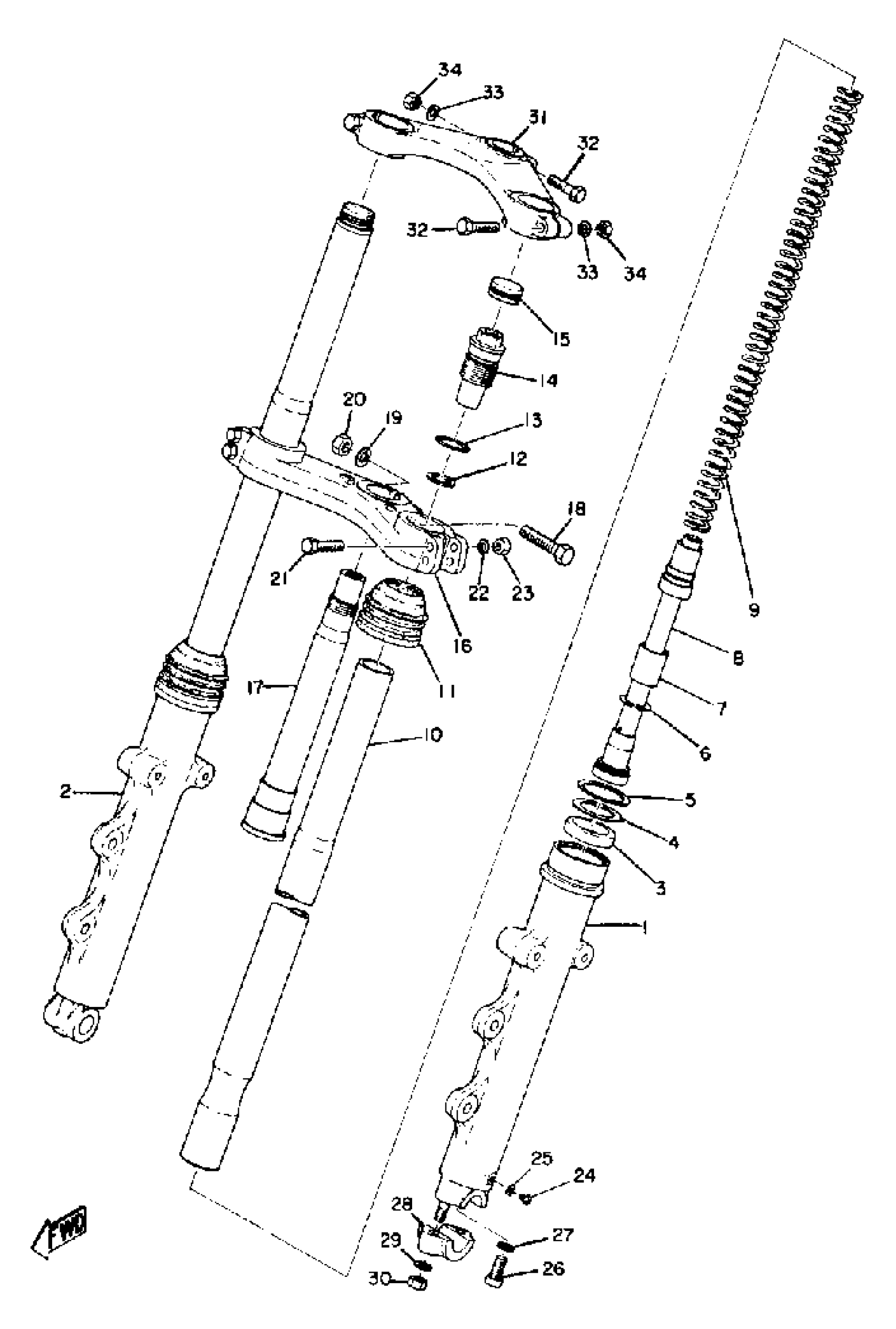

Find the part on the Front Fork diagram for your 1974 Yamaha TZ750 (TZ750A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha TZ750 (TZ750A) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(409-23101-01-00)

1
Out of stock

1

TUBE, OUTER 1

(409-23126-00-00)

1
Out of stock

2

TUBE, OUTER 2

(409-23136-00-00)

1
Out of stock

3

.. OIL SEAL

341-23145-51-00

1
Out of stock

4

WASHER, OIL SEAL

341-23146-50-00

1
Out of stock

5

CLIP, OIL SEAL

341-23156-50-00

1
Out of stock

6

. CIRCLIP, INNER

93450-30033-00

1
Out of stock

7

PISTON, FRONT FORK

(434-23171-00-00)

1
Out of stock

8

CYLINDER, FRTFRK

(409-23170-01-00)

1
Out of stock

9

SPRING, FRONT FORK

(409-23141-00-00)

1
Out of stock

10

TUBE, INNER 1

(409-23124-01-00)

1
Out of stock

11

. SEAL, DUST

341-23144-50-00

1
Out of stock

12

. WASHER, SPRING UPR

2F0-23149-00-00

1
Out of stock

13

. GASKET

214-23114-00-00

1
Out of stock

14

BOLT, CAP

(409-23111-00-00)

1
Out of stock

15

CAP, FRONT FORK

(409-23168-00-00)

1
Out of stock

16

UNDER BRACKET

(409-23340-01-00)

1
Out of stock

17

SHAFT, STEERING

(409-23341-00-00)

1
Out of stock

18

BOLT 2

(322-23356-00-00)

1
Out of stock

19

YBS67-10 WASHER, SPRING

92990-10100-00

—
Out of stock

20

NUT

(322-23357-00-00)

1
Out of stock

21

BOLT, HEXAGON

97013-08055-00

—
Out of stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

23

NUT, OUTER TUBE

(447-23127-00-00)

1
Out of stock

24

SCREW, PAN HEAD (713)

98580-04008-00

—
Out of stock

25

GASKET, DRAIN PLUG

122-23129-00-00

—
Out of stock

26

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—
Out of stock

27

GASKET

509-23158-L0-00

—
Out of stock

28

HOLDER,AXLE

341-23167-50-00

—
Out of stock

29

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

30

NUT, OUTER TUBE

(447-23127-00-00)

1
Out of stock

31

CROWN, HANDLE

(409-23435-01-00)

1
Out of stock

32

BOLT

97014-08040-00

—
Out of stock

33

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

34

NUT, OUTER TUBE

(447-23127-00-00)

1
Out of stock
