1974 Yamaha TZ750 (TZ750A) Frame Diagram

← All diagrams

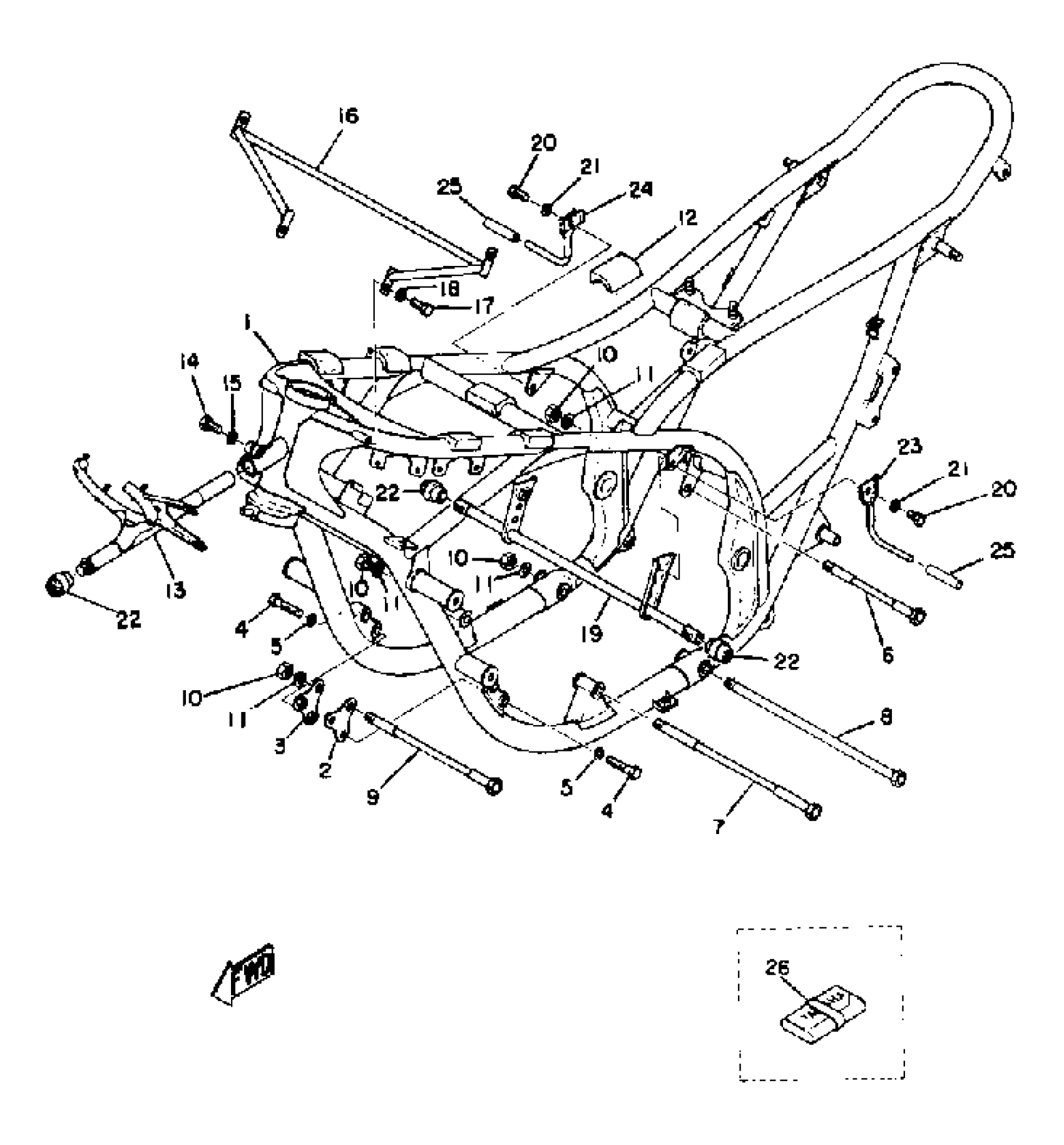

Find the part on the Frame diagram for your 1974 Yamaha TZ750 (TZ750A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha TZ750 (TZ750A) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(409-21110-01-00)

1
Out of stock

2

BRACKET, ENGINE 1

(409-21411-00-00)

1
Out of stock

3

BRACKET, ENGINE 1

(409-21411-00-00)

1
Out of stock

4

BOLT

97014-08040-00

1

$5.26

In stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

NO LONGER AVAILABLE

90105-10054-00

1
Out of stock

7

BOLT, WASHER BASED(1AE)

90105-10401-00

—
Out of stock

8

BOLT, ENGINE MOUNTING

90105-10056-00

—

$17.74

In stock

9

BOLT, FLANGE

90105-10114-00

1
Out of stock

10

NUT(3BM)

95314-10600-00

1

$1.74

In stock

11

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

12

DAMPER,LOCATING 1

240-24181-00-00

1

$11.58

In stock

13

STAY 1

(409-28356-00-00)

1
Out of stock

14

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

STAY 2

(409-28357-00-00)

1
Out of stock

17

BOLT (661)

97013-06012-00

—

$4.71

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

STAY 3

(409-28358-00-00)

1
Out of stock

20

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

22

DAMPER

240-28371-00-33

1
Out of stock

23

STAY 1

(409-14493-00-00)

1
Out of stock

24

STAY 2

(409-14494-00-00)

1
Out of stock

25

PIPE 4

(802-24314-10-00)

1
Out of stock

26

TOOL KIT

(409-28100-10-00)

1
Out of stock
