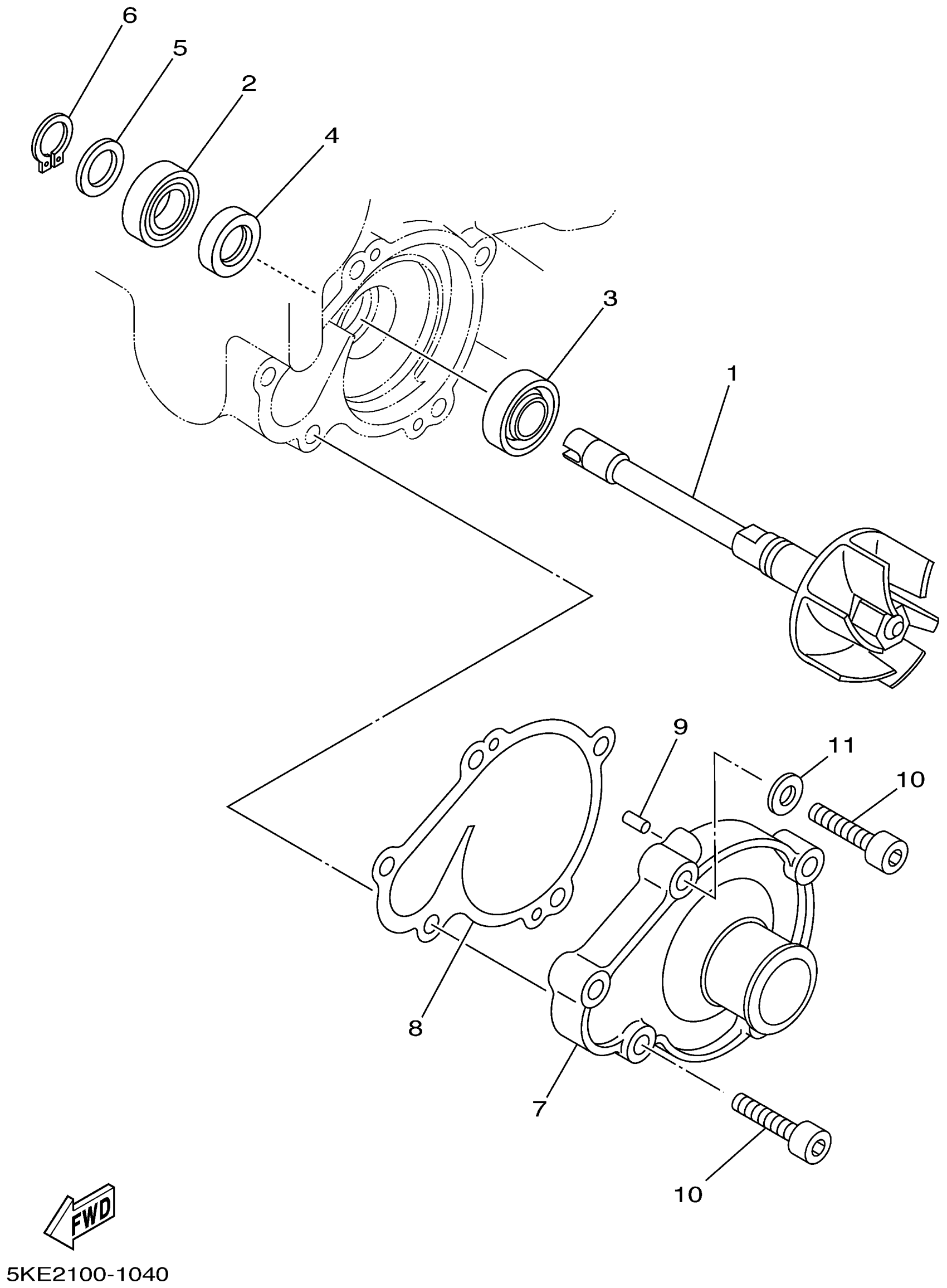

Yamaha TZ250N (TZ250) 5KE2 2001 WATER PUMP Diagram

#

Description
Price

1

IMPELLER SHAFT ASSY

5KE-12450-00-00

Unavailable

2

BEARING

93306-90109-00

Unavailable

3

OIL SEAL

93109-11073-00

$9.00

4

OIL SEAL

93101-12126-00

Unavailable

5

WASHER PLATE 164185720000

90201-12166-00

$5.86

6

CIRCLIP(10Y)

99009-12400-00

$2.87

7

COVER, HOUSING

5KE-12422-01-00

Unavailable

8

GASKET, HOUSING COVER 2

5KE-12428-00-00

Unavailable

9

PIN,DOWEL (603)

93604-10011-00

$4.89

10

BOLT,SOCKET

91317-06025-00

$1.91

11

GASKET (4V2)

90430-06166-00

$3.22
