2001 Yamaha TZ250 (TZ250N) Intake Diagram

← All diagrams

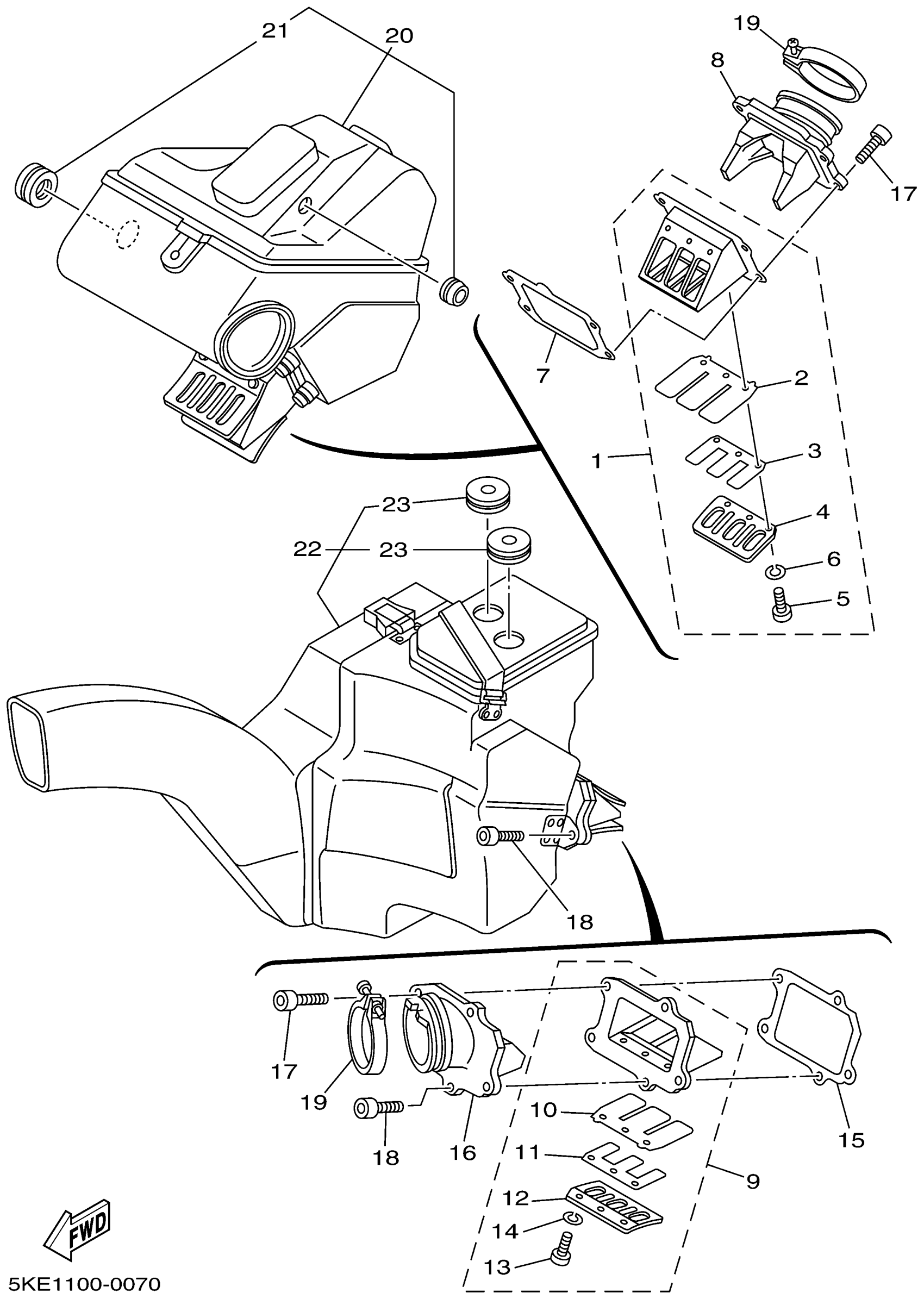

Find the part on the Intake diagram for your 2001 Yamaha TZ250 (TZ250N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha TZ250 (TZ250N) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

5KE-13610-00-00

1
Out of stock

2

REED, VALVE

3XV-13613-01-00

1
Out of stock

3

REED, VALVE 2

2KM-13614-00-00

1
Out of stock

4

STOPPER, REED VALVE 2

3YL-13617-00-00

—
Out of stock

5

SCREW, PAN

98507-03006-00

1

$6.68

In stock

6

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

7

GASKET, VALVE SEAT

5KE-13621-01-00

1
Out of stock

8

MANIFOLD, INTAKE

5KE-13555-00-00

1
Out of stock

9

REED VALVE ASSY

5KE-13620-00-00

1
Out of stock

10

REED, VALVE

3XV-13613-01-00

1
Out of stock

11

REED, VALVE 2

2KM-13614-00-00

1
Out of stock

12

STOPPER, REED VALVE 2

3YL-13617-00-00

—
Out of stock

13

SCREW, PAN

98507-03006-00

1

$6.68

In stock

14

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

15

GASKET, VALVE SEAT

5KE-13622-00-00

1
Out of stock

16

JOINT, CARBURETOR

5KE-13565-00-00

—
Out of stock

17

BOLT,SOCKET

91317-06025-00

—

$2.05

In stock

18

BOLT,SOCKET HEAD

91314-06020-00

—

$2.05

In stock

19

CLAMP,HOSE

90460-52210-00

—
Out of stock

20

BOX COMP.

5KE-2160A-01-00

1
Out of stock

21

GROMMET (3AB)

90480-25482-00

—

$4.11

In stock

22

BOX COMP.

5KE-21240-00-00

—
Out of stock

23

GROMMET (3AB)

90480-25482-00

—

$4.11

In stock
