2001 Yamaha TZ250 (TZ250N) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2001 Yamaha TZ250 (TZ250N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

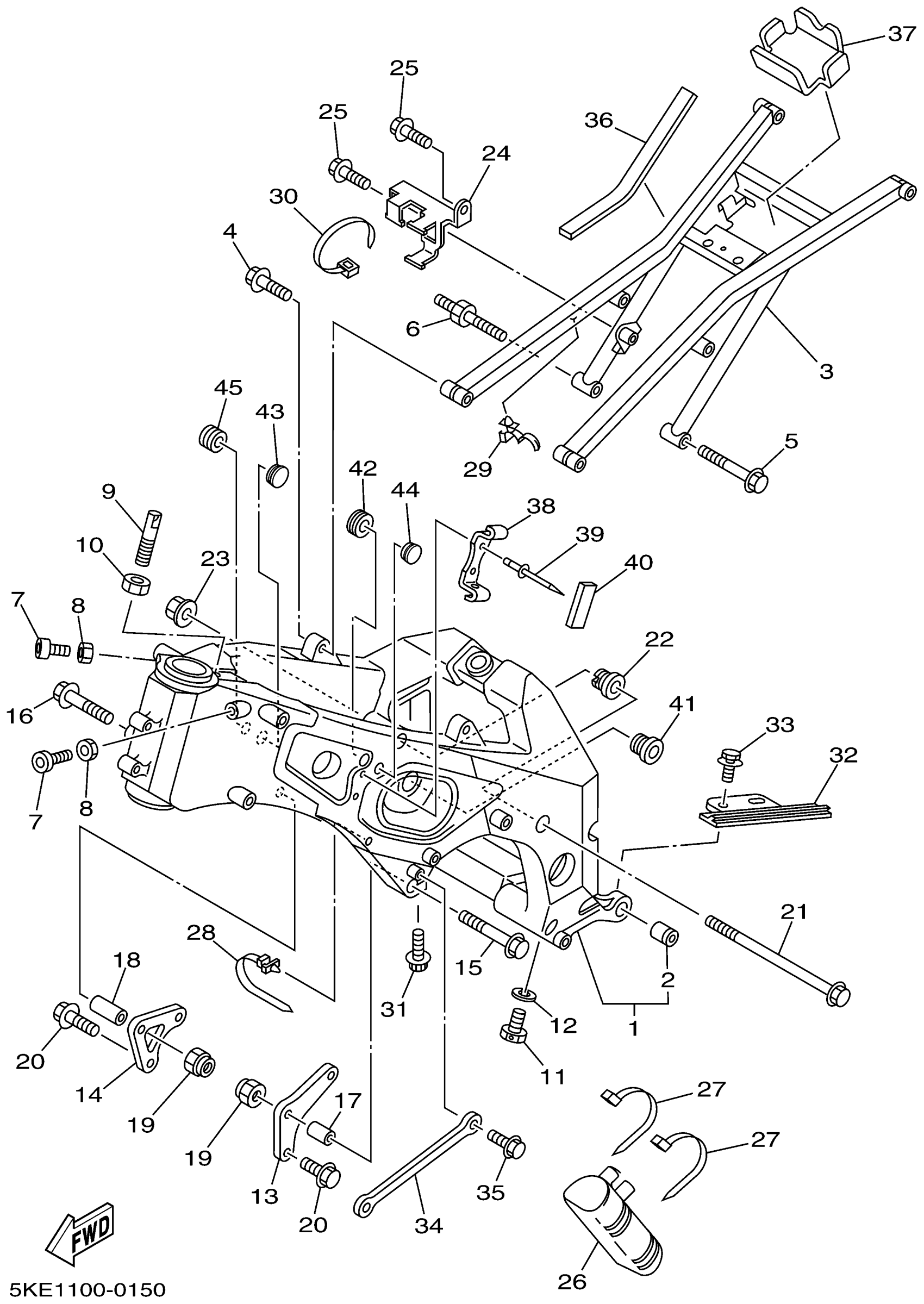

2001 Yamaha TZ250 (TZ250N) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

5KE-21110-00-00

—
Out of stock

2

DAMPER, FOOTREST

36Y-27414-00-00

1

$21.75

In stock

3

REAR FRAME COMP.

4TW-21190-02-00

1
Out of stock

4

BOLT, FLANGE

95817-06025-00

—

$1.46

In stock

5

BOLT, FLANGE

95817-06045-00

1

$6.18

In stock

6

BOLT

5KE-2171V-00-00

1
Out of stock

7

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

8

NUT(6TA)

95317-06600-00

1

$2.69

In stock

9

BOLT, TANK FITTING

5KE-2134T-00-00

—
Out of stock

10

NUT, HEXAGON SMALL

95317-08700-00

1

$7.05

In stock

11

PLUG, WATER CHECK (383)

90338-06041-00

—
Out of stock

12

GASKET (4V2)

90430-06166-00

1

$3.45

In stock

13

BRACKET, ENGINE 1

5KE-21411-00-00

—
Out of stock

14

BRACKET, ENGINE 2

5KE-21419-00-00

—
Out of stock

15

BOLT, FLANGE(4GB)

95817-10045-00

1

$4.52

In stock

16

BOLT, FLANGE

95817-10060-00

—
Out of stock

17

SLEEVE

5KE-2119R-00-00

1
Out of stock

18

SLEEVE 2

5KE-2119T-00-00

1
Out of stock

19

NUT, SELF-LOCKING(JN5)

95607-10200-00

—

$3.32

In stock

20

BOLT, SMALL FLANGE

95027-08020-00

—
Out of stock

21

BOLT, WASHER BASED(42X)

90105-10300-00

—

$9.62

In stock

22

BOLT, ENGINE ADJUSTING

4JT-21495-10-00

—
Out of stock

23

NUT

90179-10696-00

—
Out of stock

24

BRACKET

5KE-2134V-00-00

—
Out of stock

25

BOLT, FLANGE(4MY)

95027-06012-00

—

$3.28

In stock

26

TANK, OIL

3YL-21751-00-00

—
Out of stock

27

CLAMP(MF1)

90464-15152-00

—

$4.37

In stock

28

CLAMP(2TV)

90464-10112-00

—

$6.18

In stock

29

CLAMP(4TR)

90464-18246-00

—
Out of stock

30

BAND

1UA-82591-00-00

—
Out of stock

31

BOLT(3AK)

90109-067E6-00

—
Out of stock

32

SEAL, GUARD

4TW-22151-00-00

1
Out of stock

33

BOLT, WITH WASHER

90119-05022-00

—
Out of stock

34

STAY

4TW-2117A-01-00

—
Out of stock

35

BOLT, FLANGE(4MY)

95027-06012-00

—

$3.28

In stock

36

DAMPER

4A0-83541-00-00

—
Out of stock

37

DAMPER

5KE-21747-00-00

1
Out of stock

38

HOOK

5KE-2139V-00-00

1
Out of stock

39

RIVET, BLIND (15A)

90267-32071-00

—

$1.21

In stock

40

DAMPER

22F-2139X-00-00

—
Out of stock

41

BOLT, ENGINE ADJUSTING

4DP-21495-00-00

1
Out of stock

42

GROMMET (4L0)

90480-18276-00

—

$6.48

In stock

43

PLUG

90338-18266-00

—
Out of stock

44

GROMMET (420)

90480-14153-00

—

$8.55

In stock

45

GROMMET(3GM)

90480-14585-00

—
Out of stock
