2000 Yamaha TZ250 (TZ250M) Frame Diagram

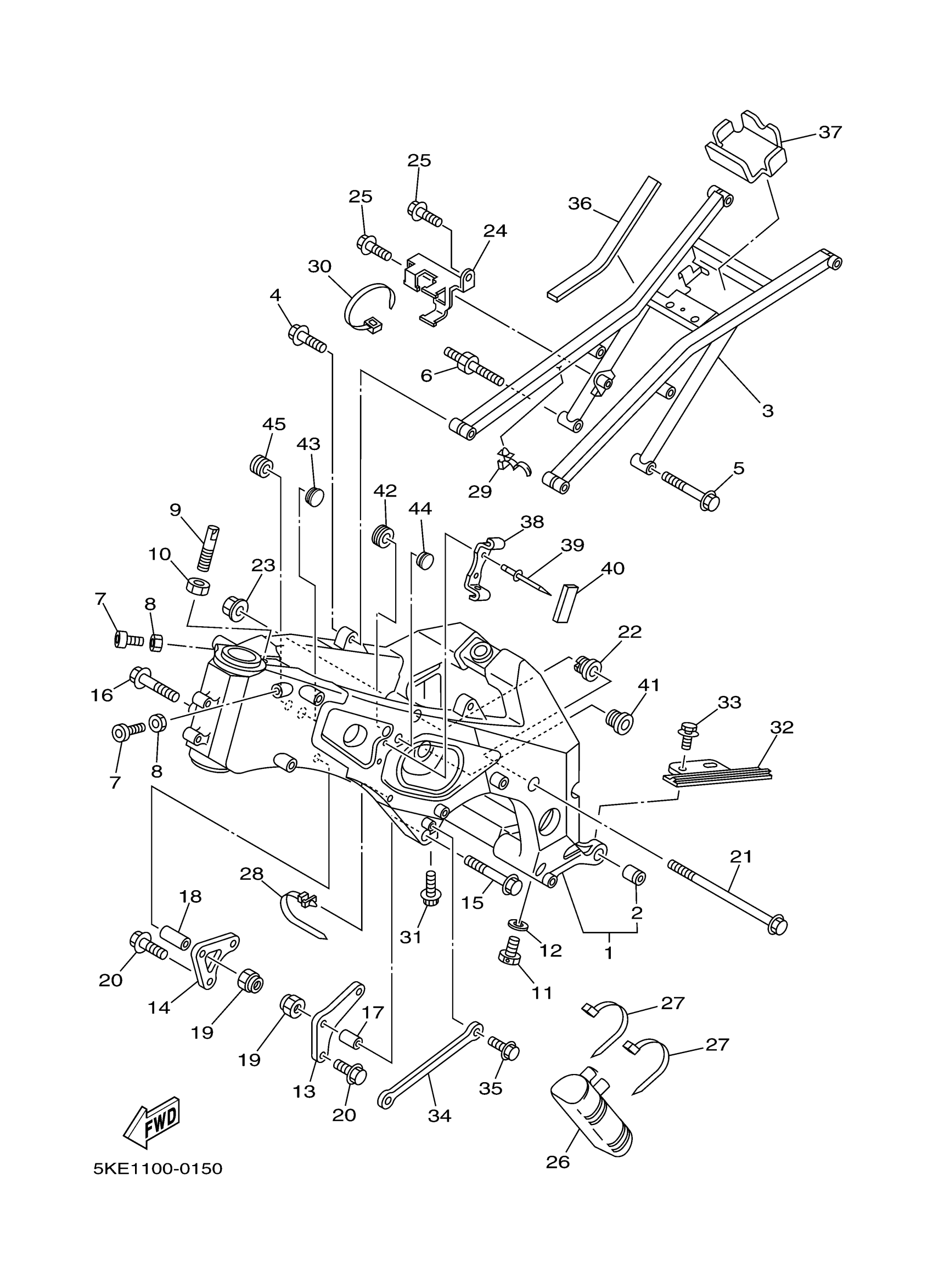

Find the part on the Frame diagram for your 2000 Yamaha TZ250 (TZ250M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRAME COMP.
5KE-21110-00-00
3
REAR FRAME COMP.
4TW-21190-02-00
6
BOLT
4TW-2171V-00-00
9
BOLT, TANK FITTING
4TW-2134T-00-00
11
PLUG, WATER CHECK (383)
90338-06041-00
13
BRACKET, ENGINE 1
5KE-21411-00-00
14
BRACKET, ENGINE 2
5KE-21419-00-00
16
BOLT, FLANGE
95817-10060-00
17
SLEEVE
5KE-2119R-00-00
18
SLEEVE 2
5KE-2119T-00-00
20
BOLT, SMALL FLANGE
95027-08020-00
22
BOLT, ENGINE ADJUSTING
4JT-21495-10-00
23
NUT
90179-10696-00
24
BRACKET
5KE-2134V-00-00
26
TANK, OIL
3YL-21751-00-00
29
CLAMP(4TR)
90464-18246-00
30
BAND
1UA-82591-00-00
31
BOLT(3AK)
90109-067E6-00
32
SEAL, GUARD
4TW-22151-00-00
33
BOLT, WITH WASHER
90119-05022-00
34
STAY
4TW-2117A-01-00
36
DAMPER
4A0-83541-00-00
37
DAMPER
5KE-21747-00-00
38
HOOK
5KE-2139V-00-00
40
DAMPER
22F-2139X-00-00
41
BOLT, ENGINE ADJUSTING
4DP-21495-00-00
43
PLUG
90338-18266-00
45
GROMMET(3GM)
90480-14585-00
