1982 Yamaha TZ250 (TZ250J) Shift CAM - Fork Diagram

← All diagrams

Find the part on the Shift CAM - Fork diagram for your 1982 Yamaha TZ250 (TZ250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

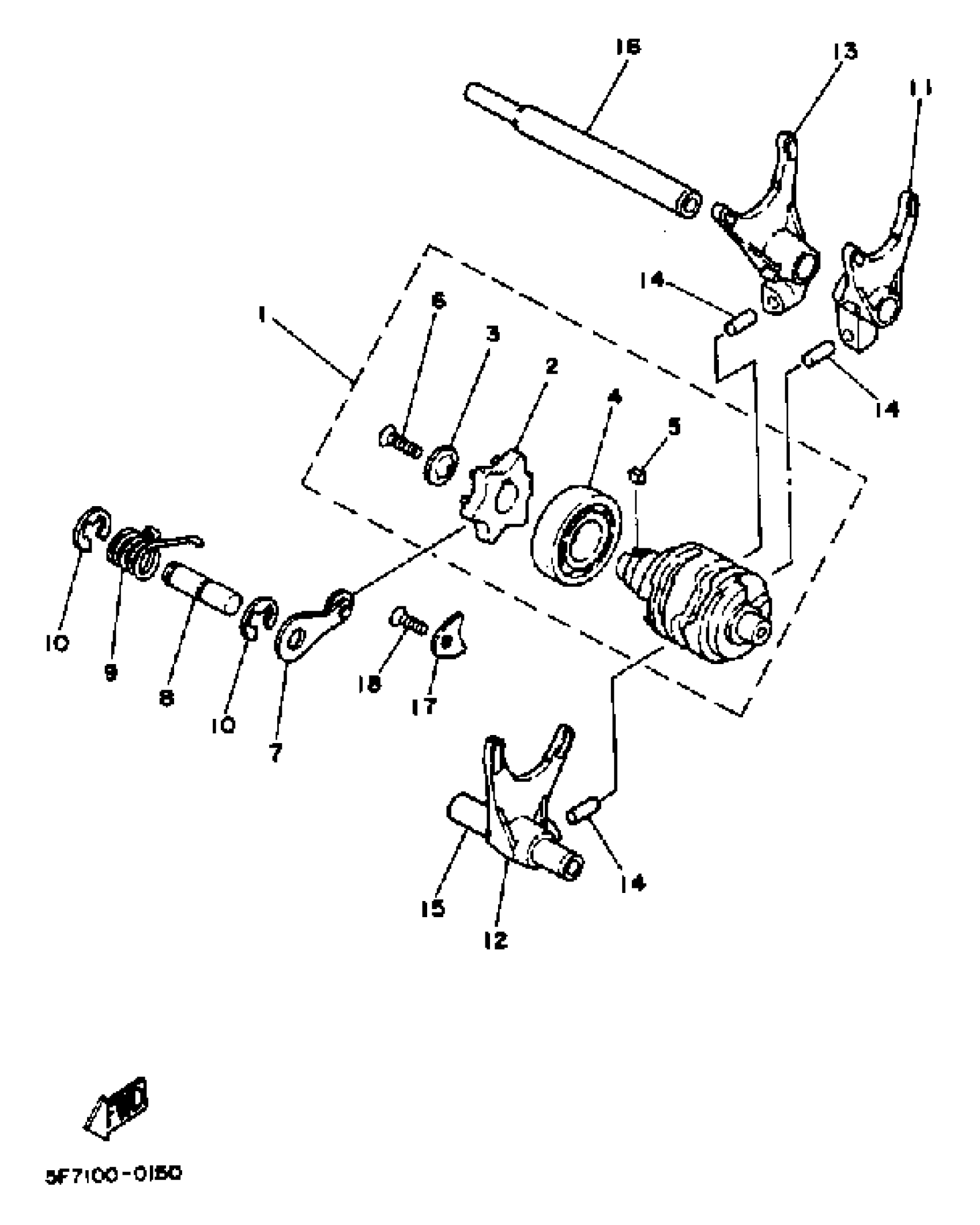

1982 Yamaha TZ250 (TZ250J) Shift CAM - Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

59W-18540-00-00

1
Out of stock

2

SEGMENT

3R4-18185-00-00

1
Out of stock

3

PLATE, SIDE 1

3R4-18561-00-00

1
Out of stock

4

BEARING (7K2)

93306-00423-00

1

$30.87

In stock

5

KEY, STRAIGHT (3R4)

90282-04036-00

1

$7.03

In stock

6

SCREW, FLAT

98707-05016-00

1

$5.60

In stock

7

STOPPER LEVER ASSEMBLY

5F7-18140-00-00

1
Out of stock

8

SHAFT

(5F7-18197-00-00)

1
Out of stock

9

SPRING, TORSION

90508-26489-00

1
Out of stock

10

CIRCLIP (137)

93430-08007-00

1

$6.17

In stock

11

FORK, SHIFT 1

3AK-18511-00-00

1
Out of stock

12

FORK, SHIFT 2

5F7-18512-00-00

1
Out of stock

13

PIN, DOWEL (3R4)

93606-14154-00

—

$2.20

In stock

14

PIN, DOWEL (3R4)

93606-14154-00

—

$2.20

In stock

15

BAR, SHIF FRK GDE 1

5F7-18531-00-00

1
Out of stock

16

BAR, SHIF FRK GDE 2

(5F7-18535-00-00)

1
Out of stock

17

NO LONGER AVAILABLE

5F7-18141-00-00

1
Out of stock

18

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock
← Counter Shaft Shift Shaft - Pedal →
