1982 Yamaha TZ250 (TZ250J) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1982 Yamaha TZ250 (TZ250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

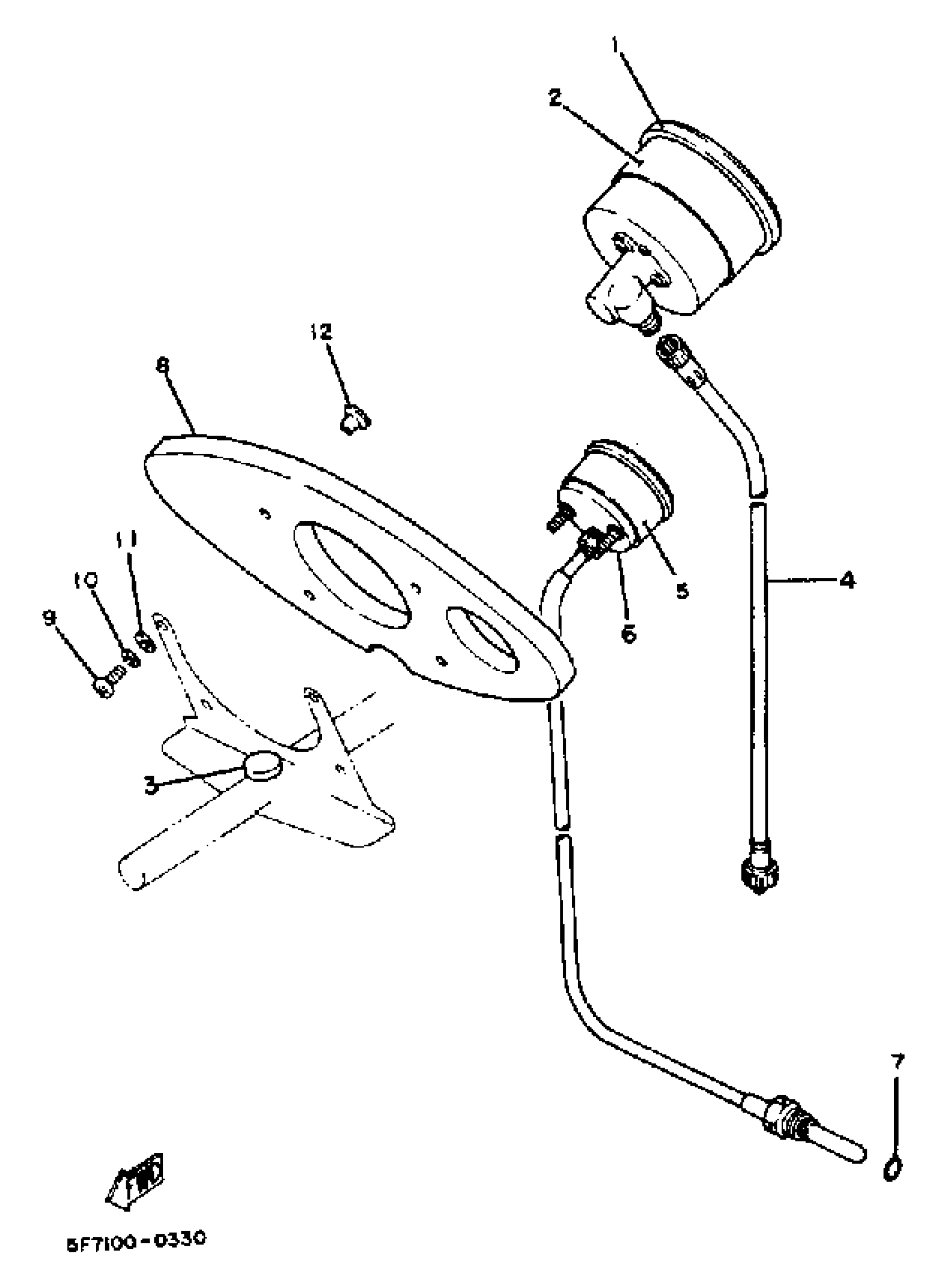

1982 Yamaha TZ250 (TZ250J) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TACHOMETER ASSEMBLY

5A0-83540-00-00

1
Out of stock

2

DAMPER

4A0-83541-00-00

1
Out of stock

3

DAMPER

4A0-85547-00-00

1
Out of stock

4

TACHOMETER CABLE

5F7-83560-00-00

1
Out of stock

5

DAMPER,SEAT

3YF-24724-01-00

1
Out of stock

6

WATER TEMP. ASSEMBLY

4A0-83590-01-00

1
Out of stock

7

O-RING (260)

93210-10118-00

1

$5.86

In stock

8

PANEL, METER

4A0-83611-00-00

1
Out of stock

9

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

10

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

11

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

12

COLLAR

4A0-83522-00-00

1
Out of stock
