1981 Yamaha TZ250 (TZ250H) Shift CAM Fork Diagram

← All diagrams

Find the part on the Shift CAM Fork diagram for your 1981 Yamaha TZ250 (TZ250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

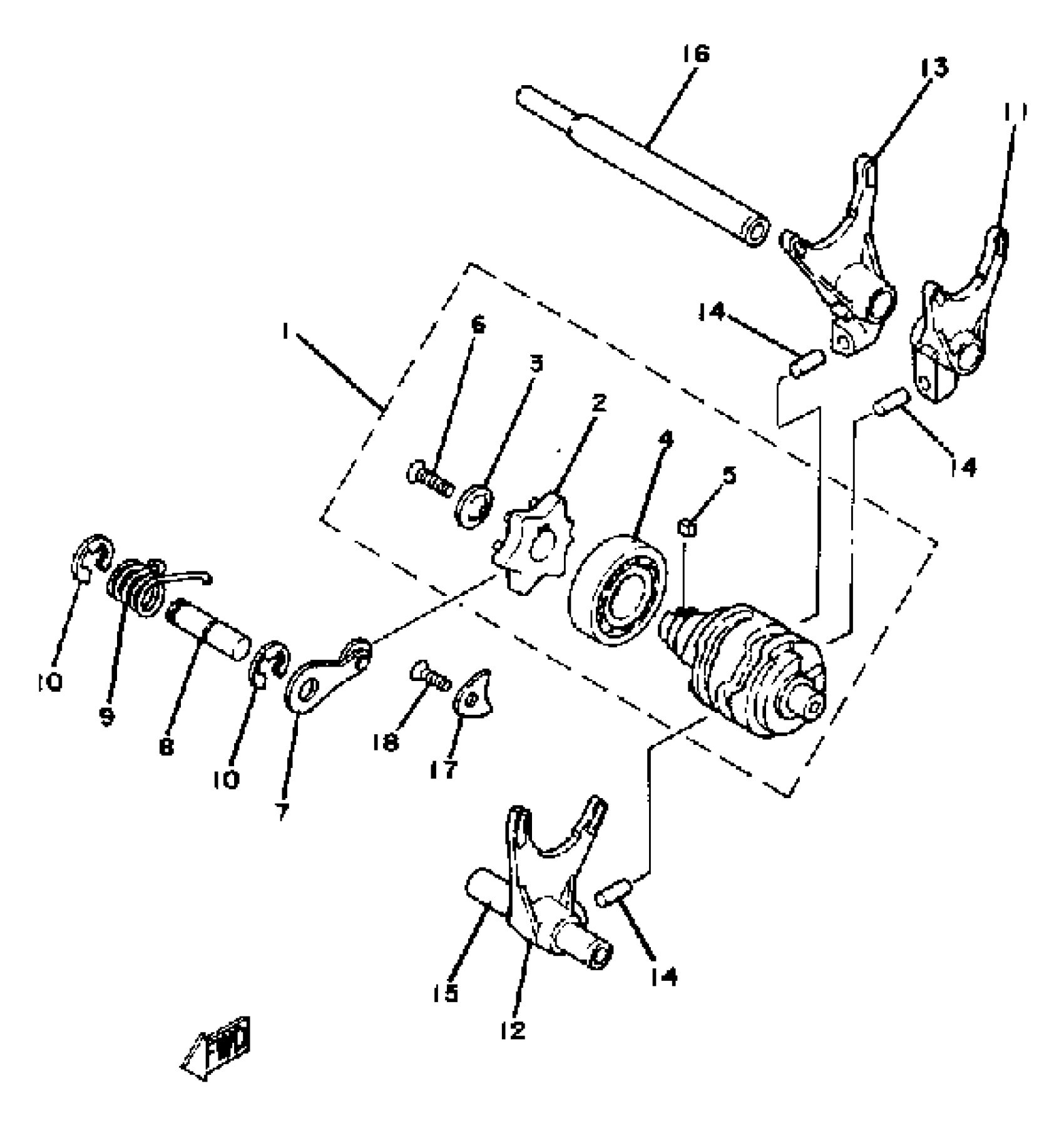

1981 Yamaha TZ250 (TZ250H) Shift CAM Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

59W-18540-00-00

1
Out of stock

2

SEGMENT

3R4-18185-00-00

1
Out of stock

3

PLATE, SIDE 1

3R4-18561-00-00

1
Out of stock

4

BEARING (7K2)

93306-00423-00

1

$30.87

In stock

5

KEY, STRAIGHT (3R4)

90282-04036-00

1

$7.03

In stock

6

SCREW, FLAT

98707-05016-00

1

$5.60

In stock

7

STOPPER LEVER ASSEMBLY

5F7-18140-00-00

1
Out of stock

8

SHAFT

(5F7-18197-00-00)

1
Out of stock

9

SPRING, TORSION

90508-26489-00

1
Out of stock

10

CIRCLIP (137)

93430-08007-00

1

$6.17

In stock

11

FORK, SHIFT 1

3AK-18511-00-00

1
Out of stock

12

FORK, SHIFT 2

5F7-18512-00-00

1
Out of stock

13

FORK, SHIFT 3

3AK-18513-00-00

1
Out of stock

14

PIN, DOWEL (3R4)

93606-14154-00

—

$2.20

In stock

15

BAR, SHIF FRK GDE 1

5F7-18531-00-00

1
Out of stock

16

BAR, SHIF FRK GDE 2

(5F7-18535-00-00)

1
Out of stock

17

PLATE, STOPPER

(5F7-18141-00-00)

1
Out of stock

18

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock
