1981 Yamaha TZ250 (TZ250H) Handlebar Cable Diagram

← All diagrams

Find the part on the Handlebar Cable diagram for your 1981 Yamaha TZ250 (TZ250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

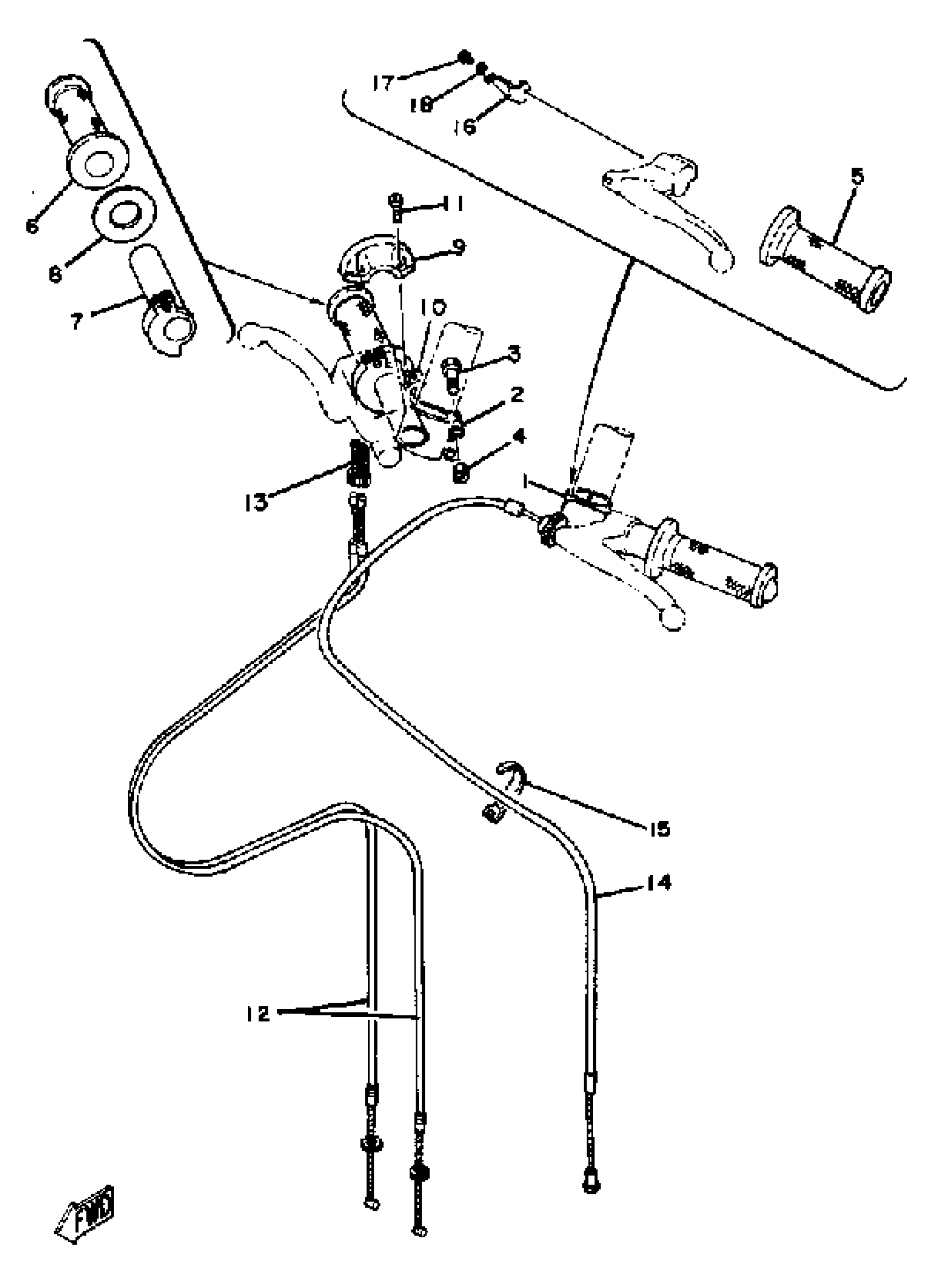

1981 Yamaha TZ250 (TZ250H) Handlebar Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR LH

5F7-26121-01-00

1
Out of stock

2

HANDLEBAR RH

5F7-26122-01-00

1
Out of stock

3

BOLT

97013-08035-00

1

$4.80

In stock

4

NUT, U

95617-08100-00

1

$6.78

In stock

5

GRIP (L.H)

47X-26241-00-00

—
Out of stock

6

GRIP (R.H)

47X-26242-00-00

—
Out of stock

7

TUBE, THRTL GUIDE

5F7-26243-00-00

1
Out of stock

8

RING, LEAF

3Y1-26249-00-00

1

$8.54

In stock

9

CAP, GRIP UPPER

3G2-26281-01-00

1
Out of stock

10

CAP, GRIP LOWER

3G2-26282-01-00

—

$38.11

In stock

11

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

12

CABLE, THROTTLE 1

5F7-26311-01-00

1
Out of stock

13

BOLT 177262530100

90123-06007-00

1
Out of stock

14

CABLE, CLUTCH

5F7-26335-00-00

1
Out of stock

15

CLAMP(MF1)

90464-15152-00

1

$4.37

In stock

16

SPRING, LOCK

5F6-26368-00-00

—
Out of stock

17

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

18

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock
← Front Wheel Rear ARM →
