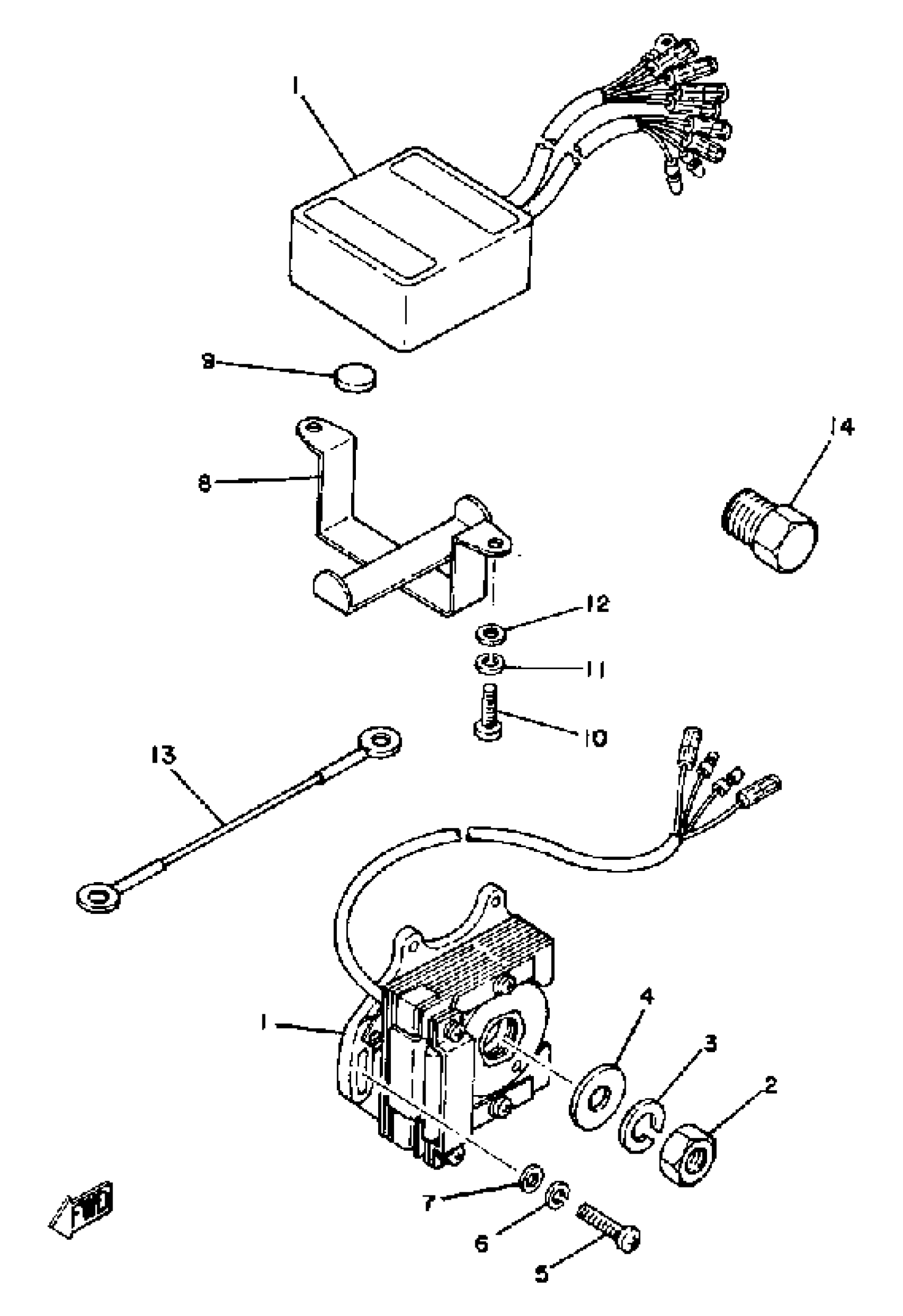

Yamaha TZ250H (TZ250) 1981 CDI MAGNETO Diagram

#

Description
Price

1

CDI MAG & UNIT SET

5F7-W8551-11-00

Unavailable

2

NUT, HEXAGON 1371637700

90170-12060-00

$7.72

3

YBS67-12 WASHER,SPRING

92990-12100-00

$6.58

4

WASHER, PLATE (12.5-30-2.6)

90201-16513-00

Unavailable

5

SCREW PAN HEAD

98580-06020-00

$4.89

6

WASHER, SPRING

92995-06100-00

$2.95

7

WASHER, PLAIN (646)

92990-06600-00

$1.84

8

BRACKET

5F7-85542-00-00

Unavailable

9

DAMPER

4A0-85547-00-00

Unavailable

10

SCREW PAN HEAD

98580-06020-00

$4.89

11

WASHER, SPRING

92995-06100-00

$2.95

12

WASHER, PLAIN (646)

92990-06600-00

$1.84

13

WIRE, EARTH LEAD

5F7-82519-00-00

Unavailable

14

BOLT

(90109-20405-00)

Unavailable
