1980 Yamaha TZ250 (TZ250G) Front Fork Diagram

← All diagrams

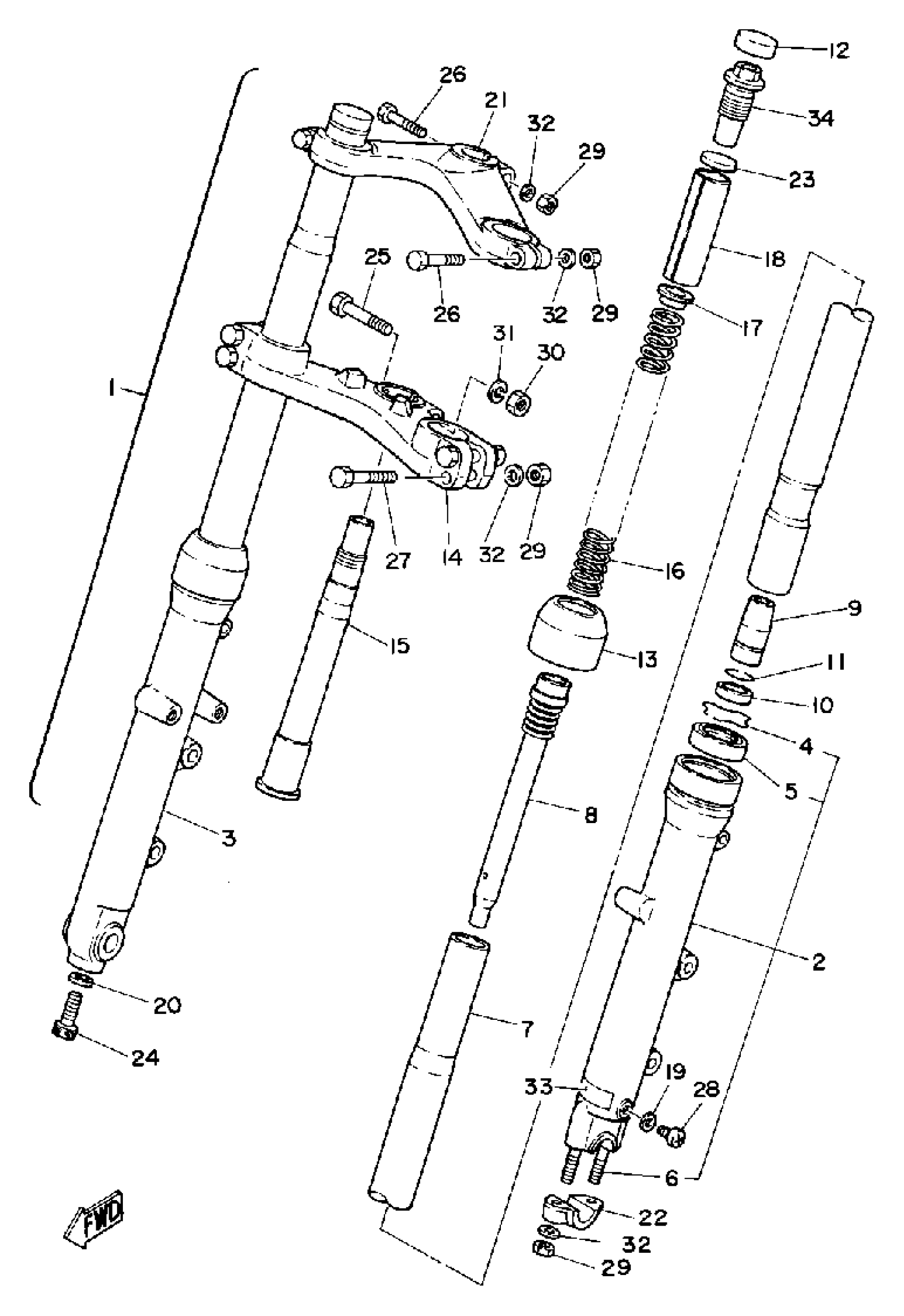

Find the part on the Front Fork diagram for your 1980 Yamaha TZ250 (TZ250G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha TZ250 (TZ250G) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(4A1-23101-00-00)

1
Out of stock

2

TUBE, OUTER 1

(4A1-23126-00-00)

1
Out of stock

3

TUBE, OUTER 2

(4A1-23136-00-00)

1
Out of stock

4

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

5

OIL SEAL

4ES-23145-00-00

1

$18.57

In stock

6

BOLT, STUD (278)

90116-08261-00

1
Out of stock

7

TUBE, INNER 1

(4A1-23124-00-00)

1
Out of stock

8

CYLINDER, FRTFRK

(4A1-23170-00-00)

1
Out of stock

9

SPINDLE, TAPER

(3G2-23173-00-00)

1
Out of stock

10

CAP, AIR VALVE

(3G2-23184-00-00)

1
Out of stock

11

CIRCLIP

(3G2-23183-00-00)

1
Out of stock

12

. CAP, FRONT FORK

2F0-23168-00-00

1
Out of stock

13

. SEAL, DUST

583-23144-00-00

1
Out of stock

14

UNDER BRACKET

(4A1-23340-00-00)

1
Out of stock

15

SHAFT, STEERING

(3G2-23341-00-00)

1
Out of stock

16

SPRING, FRONT FORK

(3G2-23141-02-00)

1
Out of stock

17

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

18

SPACER

11H-23118-00-00

1
Out of stock

19

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

20

GASKET

509-23158-L0-00

—

$14.34

In stock

21

CROWN, HANDLE

(1H3-23435-00-00)

1
Out of stock

22

HOLDER,AXLE

341-23167-50-00

—
Out of stock

23

. WASHER, SPRING UPR

2H7-23149-00-00

1
Out of stock

24

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

25

BOLT 2

(322-23356-00-00)

1
Out of stock

26

BOLT

90101-08263-00

1
Out of stock

27

BOLT, FLAT HEAD

(97281-08055-00)

1
Out of stock

28

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

28

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

29

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

30

NUT

(322-23357-00-00)

1
Out of stock

31

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

31

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

32

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

33

LABEL, CAUTION 3

(1T3-23197-50-00)

1
Out of stock

34

BOLT, CAP

(3G2-23111-00-00)

1
Out of stock
