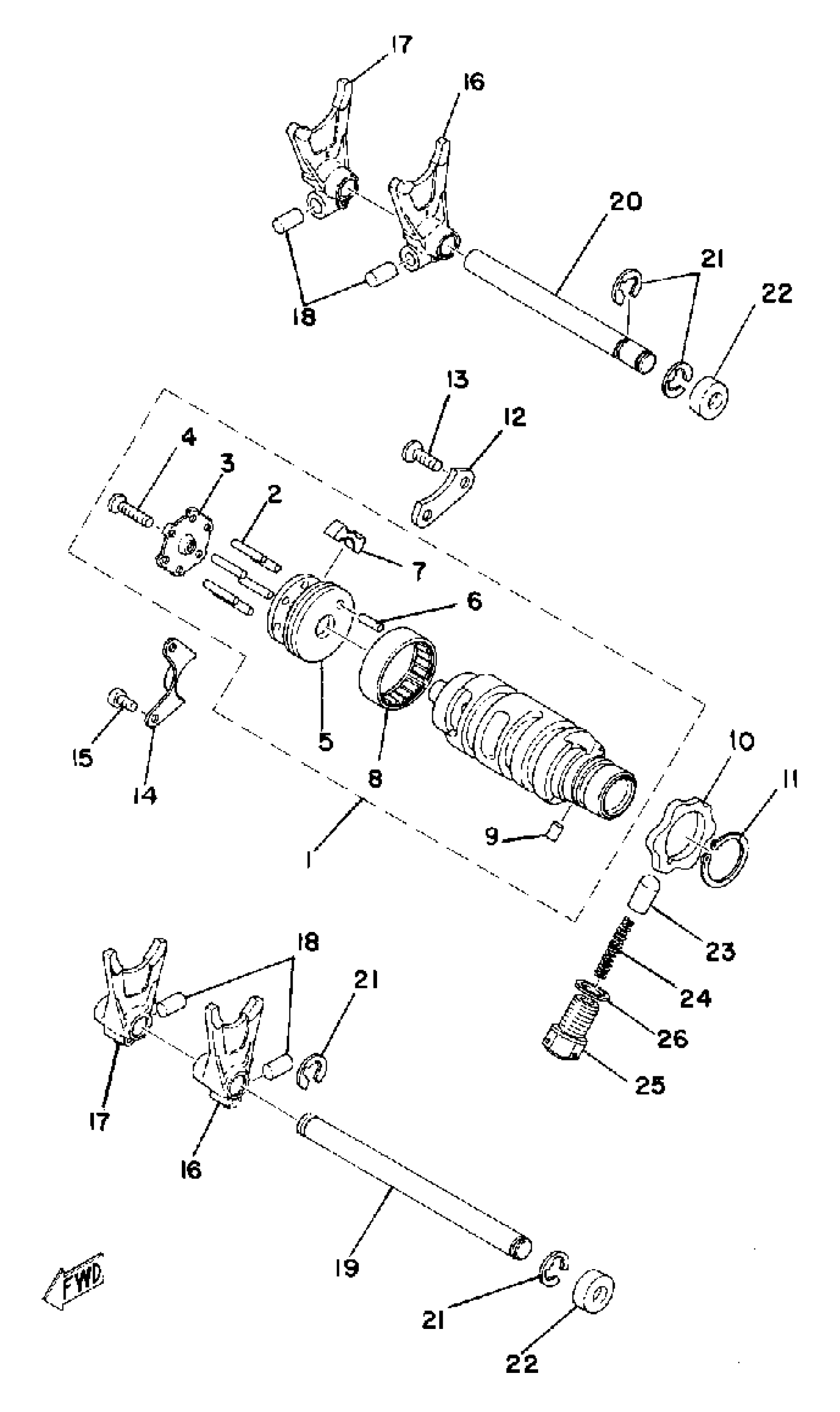

Find the part on the Shifter 1 diagram for your 1979 Yamaha TZ250 (TZ250F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha TZ250 (TZ250F) Shifter 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

(328-18540-10-00)

1
Out of stock

2

PIN,DOWEL (620)

93604-22050-00

1

$6.68

In stock

3

. PLATE, SIDE 1

328-18561-00-00

1
Out of stock

4

SCREW, FLAT

98707-05020-00

1
Out of stock

5

SEGMENT

(328-18185-00-00)

1
Out of stock

6

PIN,DOWEL (137)

93604-14012-00

1

$1.88

In stock

7

PLATE, PAWL

(328-18352-10-00)

1
Out of stock

8

BRG,CYL-CAL ROLLER 22G NT

93315-23612-00

1
Out of stock

9

PIN, DOWEL (278)

93604-08071-00

1

$6.17

In stock

10

PLATE, STOPPER

(360-18141-00-00)

1
Out of stock

11

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

12

PLATE, STOPPER 2

(328-18562-00-00)

1
Out of stock

13

SCREW, FLAT

98707-06014-00

1
Out of stock

14

GUIDE

328-18179-00-00

1
Out of stock

15

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

16

FORK, SHIFT 1

328-18511-01-00

1
Out of stock

17

FORK, SHIFT 2

328-18512-01-00

1
Out of stock

18

PIN, STRAIGHT

90250-08017-00

1
Out of stock

19

BAR, SHIFT FORK GUIDE 1

278-18531-00-00

1
Out of stock

20

BAR, SHIF FRK GDE 2

(278-18535-00-00)

1
Out of stock

21

CIRCLIP

99006-10600-00

—

$6.91

In stock

22

PLUG(3AJ)

90338-22207-00

—

$3.92

In stock

23

STOPPER, CAM

278-18547-02-00

1
Out of stock

24

SPRING COMPRESSION278185570000

90501-10062-00

—
Out of stock

25

SCREW, SPEC''L SHAPE

(90149-14066-00)

1
Out of stock

26

GASKET

214-11198-01-00

—

$2.66

In stock
