1979 Yamaha TZ250 (TZ250F) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1979 Yamaha TZ250 (TZ250F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

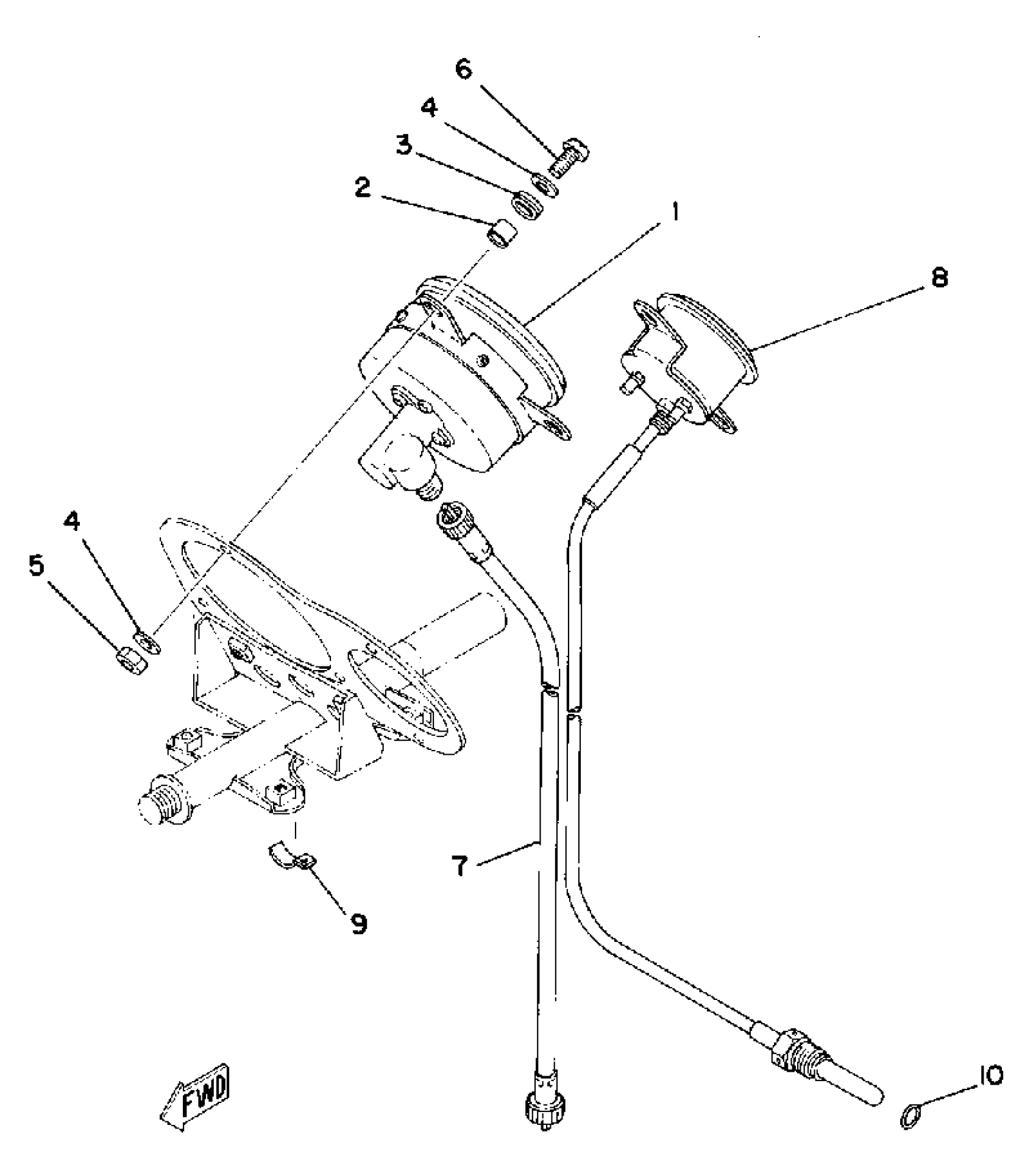

1979 Yamaha TZ250 (TZ250F) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TACHOMETER ASSEMBLY

3G2-83540-00-00

1
Out of stock

2

COLLAR

(90387-05715-00)

1
Out of stock

3

GROMMET 214217470000

90480-14103-00

1

$3.74

In stock

4

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

5

NUT, U

95617-05100-00

1

$6.68

In stock

6

SCREW, PAN HEAD

98517-05030-00

1

$7.92

In stock

7

TACHOMETER CABLE ASSY

360-83560-01-00

1

$62.78

In stock

8

WATER TEMP. ASSEMBLY

4A0-83590-01-00

1
Out of stock

9

CLAMP

90462-10007-00

1
Out of stock

10

O-RING (260)

93210-10118-00

1

$5.86

In stock
