1979 Yamaha TZ250 (TZ250F) Fairing Diagram

← All diagrams

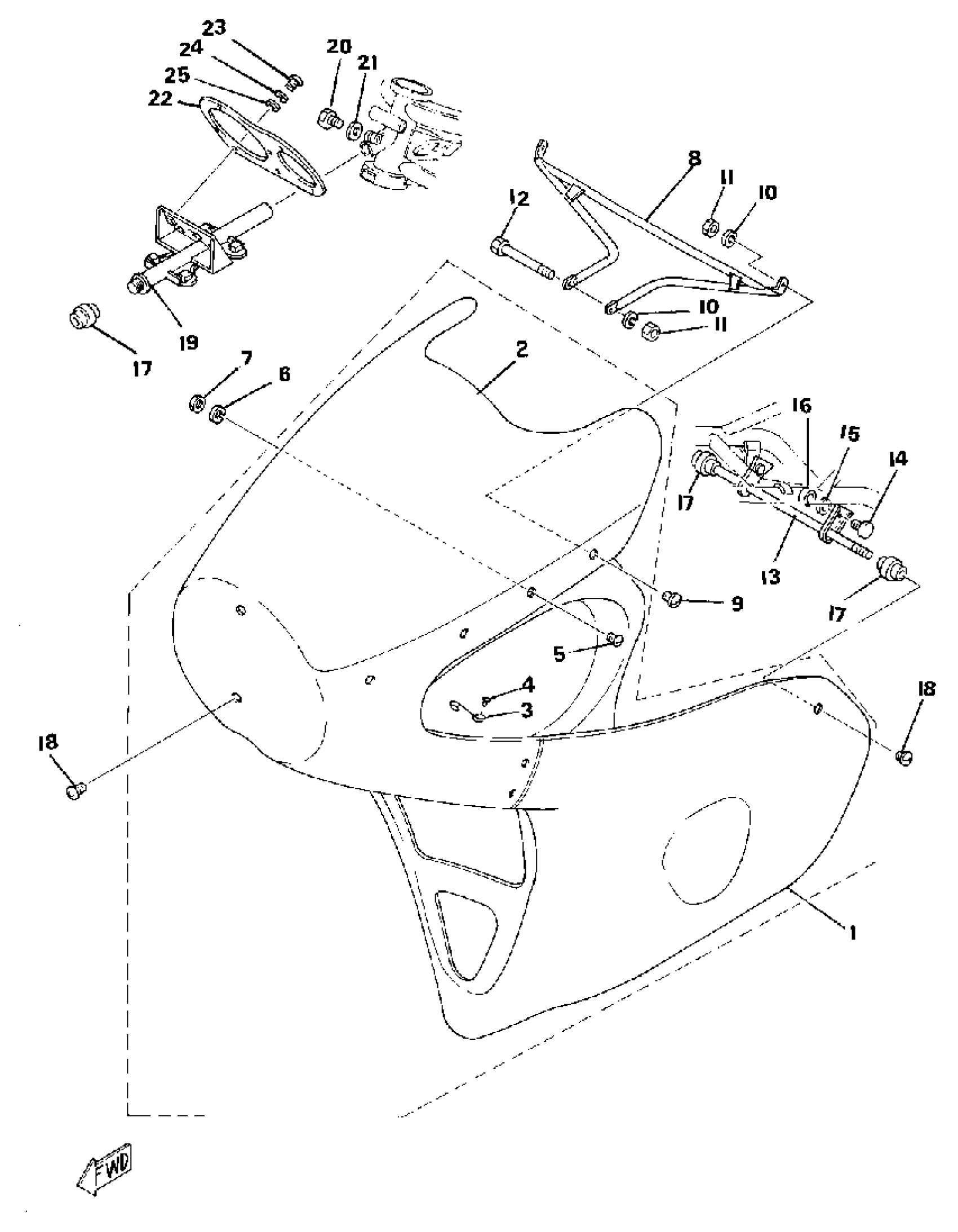

Find the part on the Fairing diagram for your 1979 Yamaha TZ250 (TZ250F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha TZ250 (TZ250F) Fairing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TZ250F R.R.FAIRING

(ACC-11110-75-03)

1
Out of stock

2

TZ750E WNDSHD ONLY

(ACC-11110-77-04)

1
Out of stock

3

SPRING

(240-28388-00-00)

1
Out of stock

4

RIVET, ROUND HEAD

(90260-02002-00)

1
Out of stock

5

SCREW, ROUND HEAD

90140-04012-00

1
Out of stock

6

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

7

NUT(6L4)

95380-04700-00

—

$5.62

In stock

8

STAY 2

(3G2-28357-00-00)

1
Out of stock

9

SCREW, ROUND HEAD(55K)

90150-06021-00

1

$6.46

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

NUT, NYLON

95707-06300-00

1

$3.20

In stock

12

BOLT(7LR)

97027-06080-00

1

$5.86

In stock

13

STAY 3

(240-28358-00-33)

1
Out of stock

14

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

NUT(6L2)

95333-08600-00

—

$3.20

In stock

17

DAMPER

240-28371-00-33

1
Out of stock

18

SCREW, ROUND HEAD(55K)

90150-06021-00

1

$6.46

In stock

19

STAY 1

(3G2-28356-00-00)

1
Out of stock

20

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

22

STAY 3

(3V3-28358-00-00)

1
Out of stock

23

SCREW, PAN HEAD(3TJ)

98507-06016-00

—

$2.43

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock
