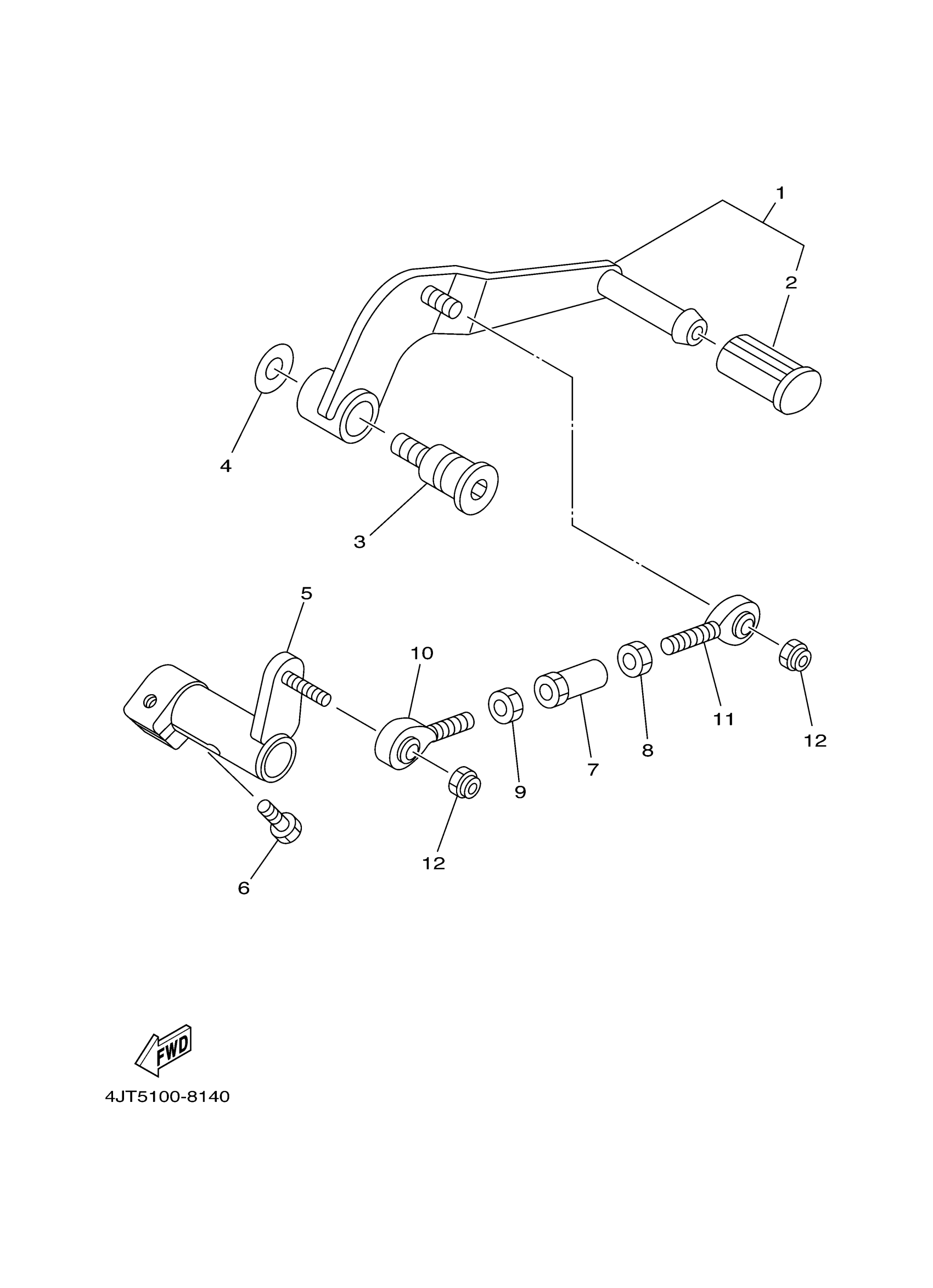

Yamaha TZ125M (TZ125M) 4JT7 2000 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT PEDAL ASSY

4JT-18110-20-00

Unavailable

2

COVER

240-18113-00-00

$16.08

3

BOLT(4DP)

90109-087F6-00

Unavailable

4

WASHER, PLATE (12X)

90201-087F0-00

$3.46

5

ARM, SHIFT

4JT-18112-10-00

Unavailable

6

BOLT, HEXAGON

97017-06020-00

$2.37

7

ROD, SHIFT

4JT-18115-10-00

Unavailable

8

NUT (2H9)

90170-06228-00

$6.12

9

NUT(650)

95380-06700-00

$5.75

10

JOINT, ROD 1

5F7-18116-00-00

Unavailable

11

JOINT, ROD 2

3TC-18117-00-00

Unavailable

12

NUT, SELF-LOCKING

95617-06100-00

$2.17
