2000 Yamaha TZ125M (TZ125M) Frame Diagram

← All diagrams

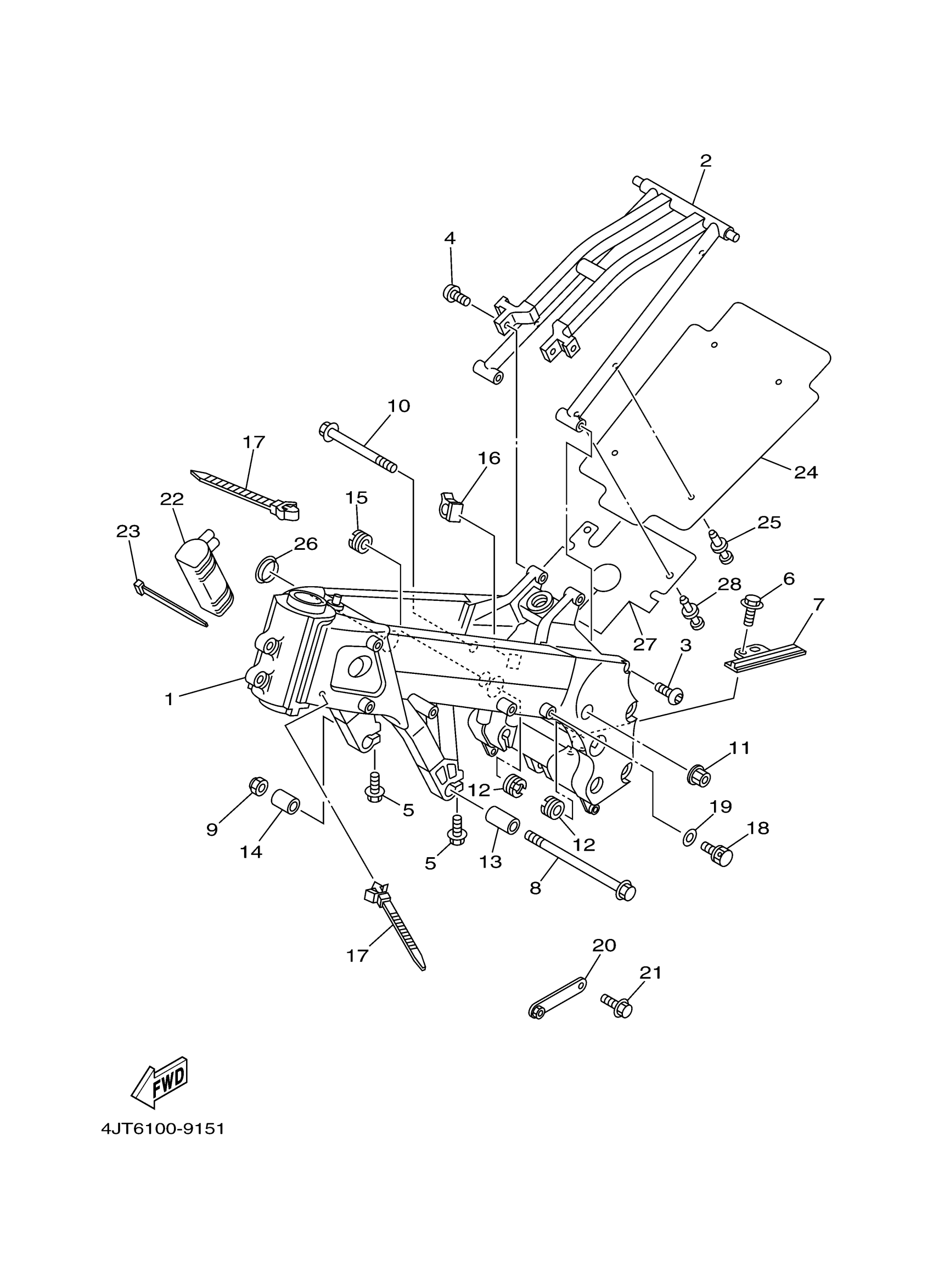

Find the part on the Frame diagram for your 2000 Yamaha TZ125M (TZ125M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha TZ125M (TZ125M) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

4JT-21110-33-00

1
Out of stock

2

REAR FRAME COMP.

4JT-21190-21-00

1
Out of stock

3

BOLT, BUTTON

92017-08025-00

1
Out of stock

4

BOLT, BUTTON

92017-08020-00

1
Out of stock

5

BOLT(3AK)

90109-067E6-00

—
Out of stock

6

BOLT, WITH WASHER

90119-05022-00

1
Out of stock

7

SEAL, GUARD

4TW-22151-00-00

1
Out of stock

8

BOLT, WASHER BASED

90105-10726-00

1
Out of stock

9

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

10

BOLT, WASHER BASED (5E3)

90105-10183-00

1
Out of stock

11

NUT

90179-10696-00

—
Out of stock

12

BOLT, ENGINE ADJUSTING

4JT-21495-10-00

—
Out of stock

13

SLEEVE, 1

4JT-21117-00-00

—
Out of stock

14

SLEEVE, 2

4JT-21118-00-00

1
Out of stock

15

BOLT, ENGINE ADJUSTING

4JT-21495-00-00

1
Out of stock

16

CLAMP(3YL)

90464-25160-00

—
Out of stock

17

CLAMP(2TV)

90464-10112-00

—
Out of stock

18

PLUG, WATER CHECK (383)

90338-06041-00

—
Out of stock

19

GASKET (4V2)

90430-06166-00

—
Out of stock

20

STAY

4JT-2117A-10-00

1
Out of stock

21

BOLT, WASHER BASED(JA9)

90105-06696-00

—
Out of stock

22

TANK, OIL

3YL-21751-00-00

—
Out of stock

23

CLAMP(MF1)

90464-15152-00

—
Out of stock

24

GUARD, MUD

4JT-21629-11-00

1
Out of stock

25

RIVET(52W)

90269-05049-00

—
Out of stock

26

PROTECTOR

4JT-2117G-00-00

—
Out of stock

27

GUARD, FLAP

4JT-21642-20-00

1
Out of stock

28

RIVET(52W)

90269-05049-00

—
Out of stock
