1980 Yamaha TZ125G (TZ125G) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1980 Yamaha TZ125G (TZ125G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

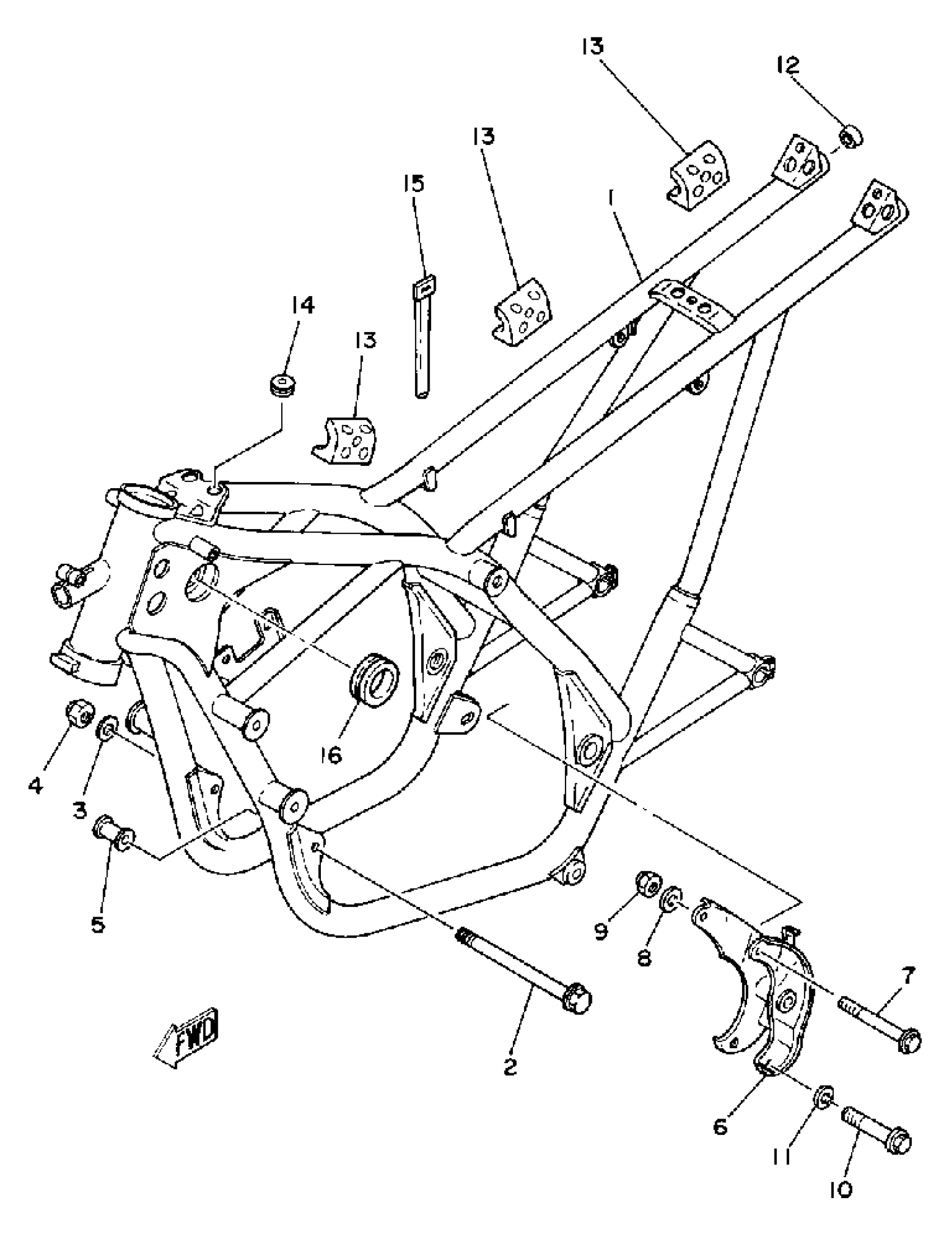

1980 Yamaha TZ125G (TZ125G) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(3V3-21110-00-33)

1
Out of stock

2

BOLT, WASHER BASED

(90105-08029-00)

1
Out of stock

3

UNAVAILABLE IN PRICE BOOK

92930-82000-0

1
Out of stock

4

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

5

COLLAR

(90387-08771-00)

1
Out of stock

6

ENGINE BRKT

1W1-21410-00-00

1
Out of stock

7

BOLT,WASHER BASED

90105-08100-00

1
Out of stock

8

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

9

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

10

BOLT

90105-10037-00

—

$7.51

In stock

11

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

12

PLUG (2K5)

90339-13005-00

1

$3.57

In stock

13

DAMPER,LOCATING 1

240-24181-00-00

1

$11.58

In stock

14

GROMMET

(90480-13015-00)

1
Out of stock

15

BAND

341-26397-01-00

1
Out of stock

16

GROMMET 117217730000

90480-40047-00

—

$3.91

In stock
