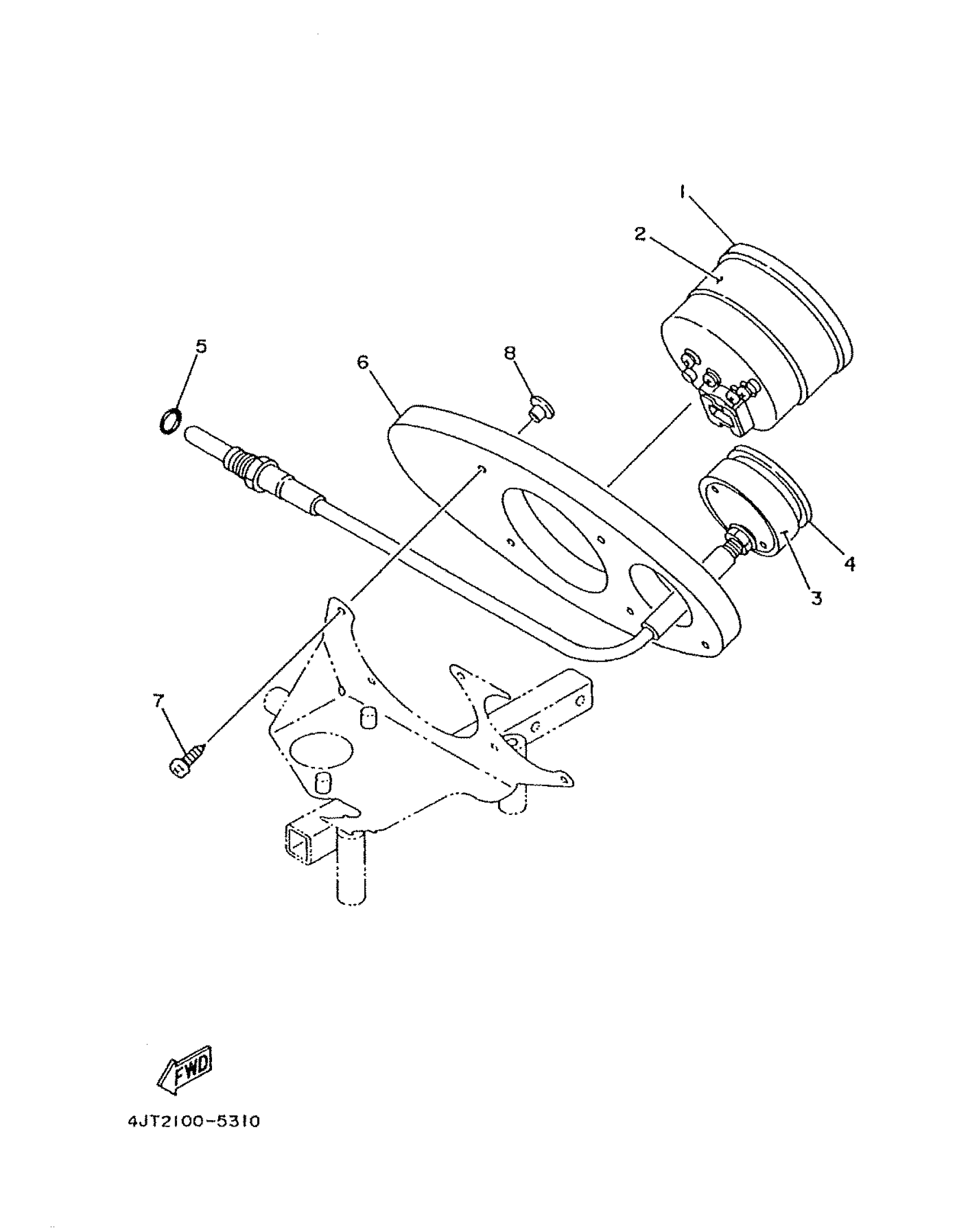

Yamaha TZ125 (TZ125) 4JT6 1999 METER Diagram

#

Description

Price

1

TACHOMETER ASSEMBLY

3YL-83540-00-00

Unavailable

2

DAMPER

4A0-83541-00-00

$4.05

3

DAMPER,SEAT

3YF-24724-01-00

Unavailable

4

WATER TEMPERATURE ASSEMBLY

4JT-83590-01-00

Unavailable

5

O-RING (260)

93210-10118-00

$5.47

6

PANEL, METER

3LC-83611-00-00

Unavailable

7

SCREW,TAPPING (EU0)

97780-40110-00

$1.05

8

COLLAR

4A0-83522-00-00

$18.88
