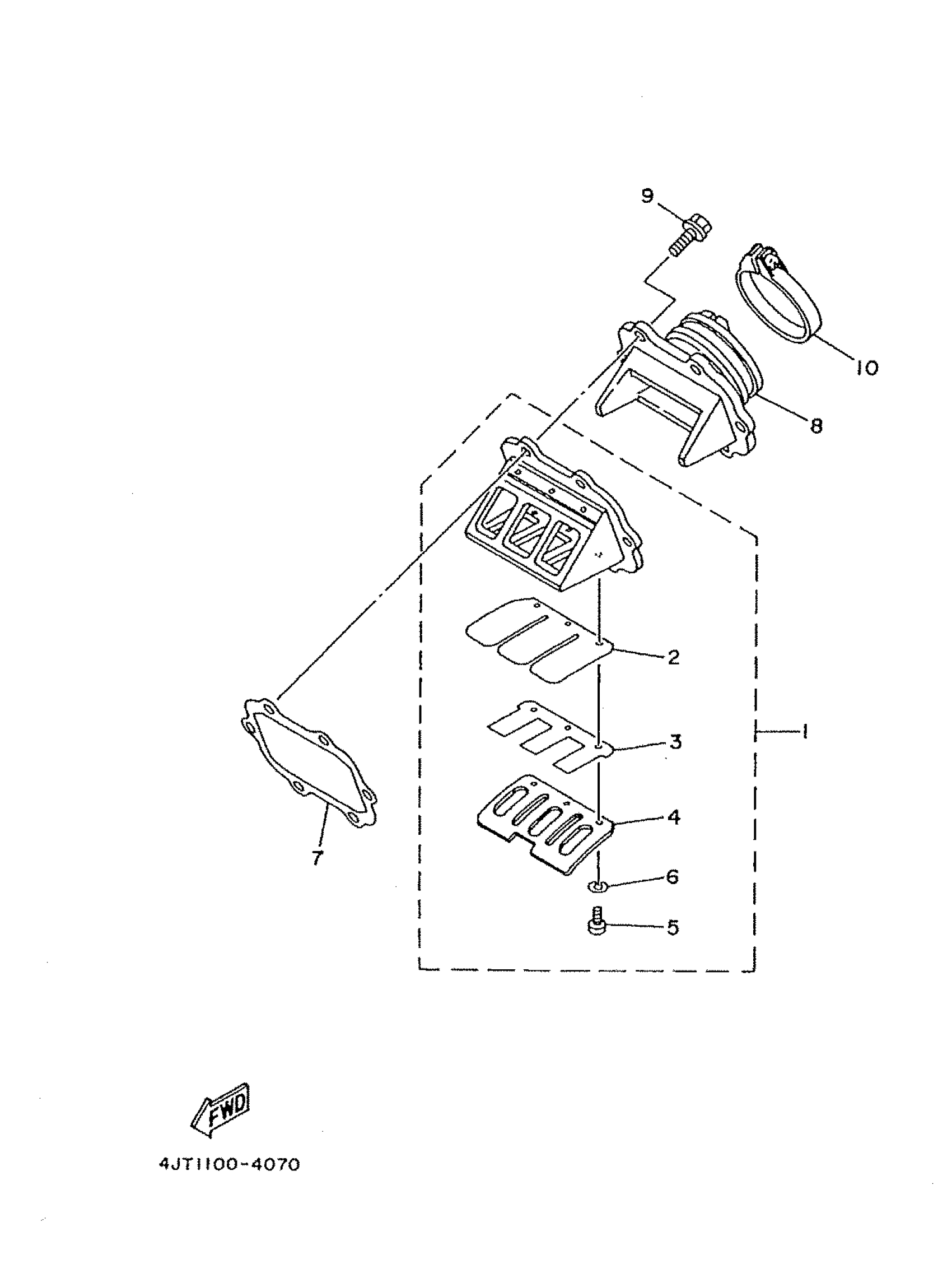

Yamaha TZ125 (TZ125) 4JT6 1999 INTAKE Diagram

#

Description

Price

1

REED VALVE ASSY

4JT-13610-00-00

Unavailable

2

REED, VALVE

3XV-13613-01-00

$13.18

3

. REED, VALVE 2

4JT-13614-00-00

Unavailable

4

. STOPPER, REED VALVE

4JT-13616-00-00

Unavailable

5

SCREW, PAN

98507-03006-00

$6.58

6

WASHER, SPRING

92990-03100-00

$5.75

7

GASKET, VALVE SEAT

4JT-13621-00-00

$3.92

8

MANIFOLD, INTAKE

4JT-13555-20-00

Unavailable

9

BOLT,SOCKET

91317-06020-00

Unavailable

10

HOSE CLAMP ASSY

90450-52002-00

Unavailable
