1985 Yamaha Trial (TY350N) ELECTRICAL1 Diagram

← All diagrams

Find the part on the ELECTRICAL1 diagram for your 1985 Yamaha Trial (TY350N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

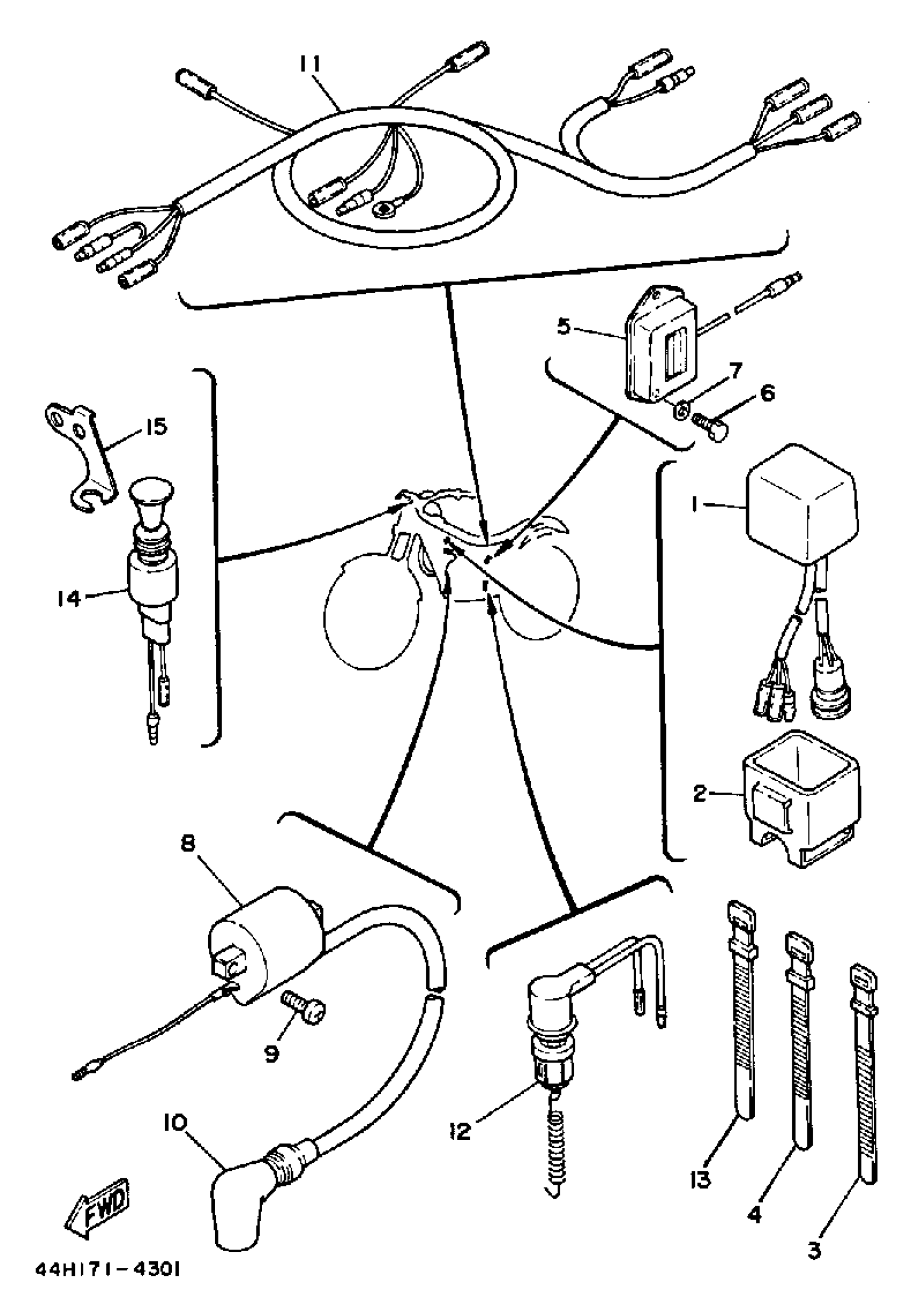

1985 Yamaha Trial (TY350N) ELECTRICAL1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

38V-85540-20-00

1
Out of stock

2

BAND

2A7-85546-00-00

—

$20.40

In stock

3

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock

4

BAND, SWITCH CORD

25G-83936-01-00

1

$4.12

In stock

5

VOLTAGE REG ASY

443-81910-62-00

1
Out of stock

6

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

7

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

8

IGNITION COIL ASSEMBLY

43G-82310-40-00

1
Out of stock

9

SCREW, PAN

98507-06014-00

1

$6.18

In stock

10

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

11

WIRE HARNESS ASSEMBLY

44H-82590-00-00

1
Out of stock

12

STOP SWITCH ASSY

5R2-82530-03-00

—
Out of stock

13

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

14

LIGHT SWITCH ASSEMBLY

4V5-82520-00-00

1
Out of stock

15

STAY, LAMP SWITCH

44H-82527-00-00

1
Out of stock
