1977 Yamaha TY250 (TY250D) Front Wheel Diagram

← All diagrams

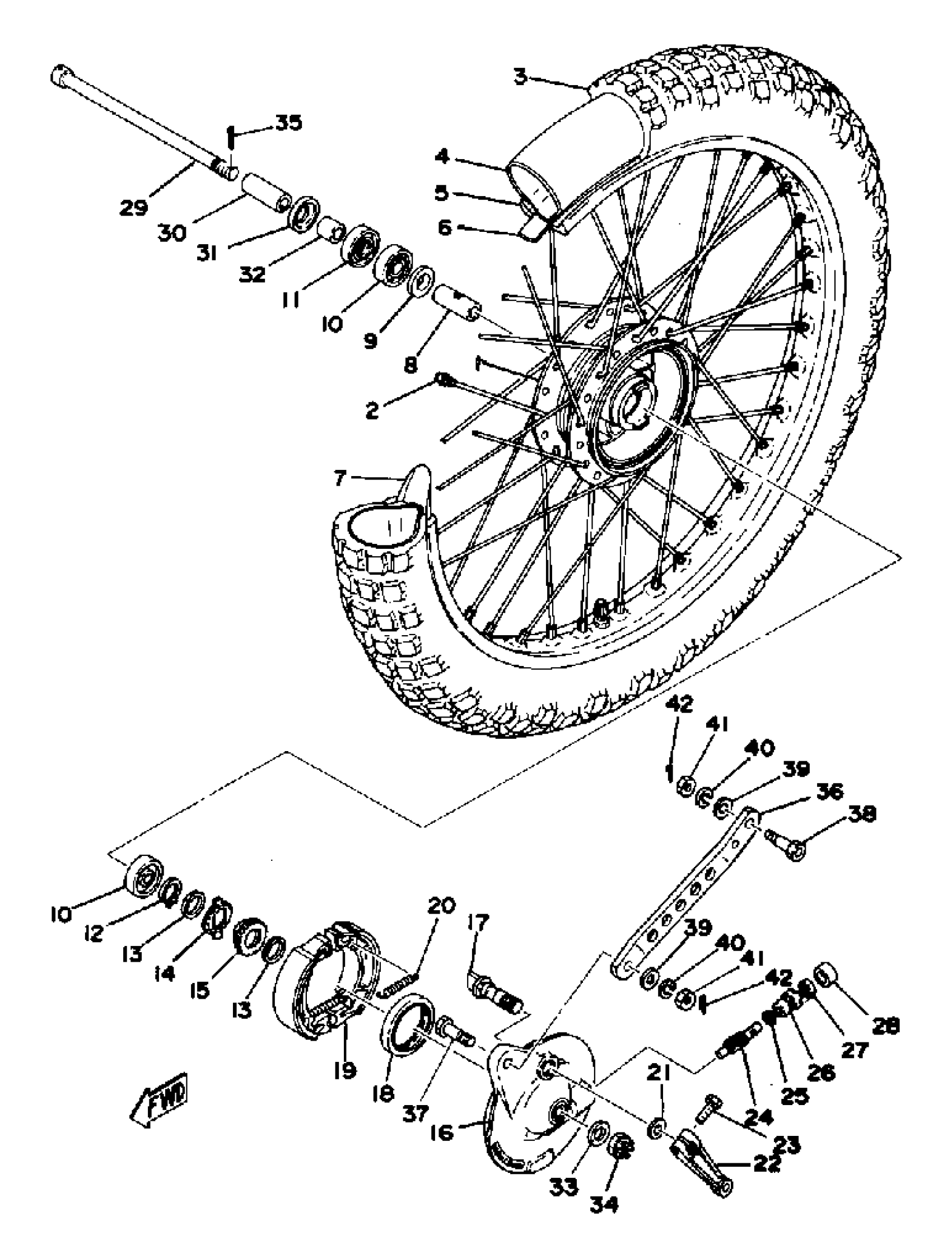

Find the part on the Front Wheel diagram for your 1977 Yamaha TY250 (TY250D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha TY250 (TY250D) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(248-25111-00-38)

1
Out of stock

2

SPOKE SET, FRONT

345-25104-01-00

1
Out of stock

3

275X21 DUN TU ET

(94127-21151-00)

1
Out of stock

3

FRONT TIRE

(94127-21325-00)

1
Out of stock

4

TUBE (2.75-21)(2YY)

94227-21293-00

1
Out of stock

5

RIM 1.60X21

94416-21265-00

1
Out of stock

6

BAND, RIM

(94327-21024-00)

1
Out of stock

7

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

8

SPACER

90560-12138-00

—

$12.83

In stock

9

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

10

BEARING

93306-30102-00

1
Out of stock

11

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

12

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

13

WASHER, PLATE 1832514700

90201-20269-00

1
Out of stock

14

CLUTCH, METER

183-25149-00-00

1
Out of stock

15

GEAR, DRIVE

37A-25135-00-00

1
Out of stock

16

PLATE, BRAKE SHOE

(434-25121-02-00)

1
Out of stock

17

CAMSHAFT

(434-25151-00-00)

1
Out of stock

18

SEAL,OIL

93105-47007-00

—
Out of stock

19

BRAKESHOE SET

22F-W2534-00-00

1
Out of stock

20

SPRING, TENSION (566).

90506-16150-00

—

$6.98

In stock

21

SEAL, CAMSHAFT

137-25159-00-00

1
Out of stock

22

LEVER, CAMSHAFT 1 (401-25155-00)

401-25155-11-00

1
Out of stock

23

BOLT, HEXAGON (462)

90101-06291-00

—

$6.68

In stock

24

GEAR, METER

37A-25138-00-00

1
Out of stock

25

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

26

BUSHING

109-25136-00-00

—

$8.78

In stock

27

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

28

PLUG 288251390000

90338-18014-00

—

$7.57

In stock

29

SHAFT, WHEEL

401-25181-01-00

—

$58.12

In stock

30

COLLAR

90387-12100-00

1
Out of stock

31

COVER, HUB DUST

2K5-25118-00-00

—
Out of stock

32

COLLAR 1832518300

90387-12095-00

—

$4.63

In stock

33

YBS66-12 WASHER,PLAIN

92990-12200-00

—

$6.17

In stock

34

NUT CASTLE(481)

90171-12005-00

—

$7.35

In stock

35

PIN, COTTER

91490-30030-00

—

$7.15

In stock

36

BAR, TENSION

(434-25171-01-00)

1
Out of stock

37

BOLT

(90109-08234-00)

1
Out of stock

38

BOLT

(90109-08380-00)

1
Out of stock

39

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

40

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

41

. NUT

95380-08700-00

1

$3.07

In stock

42

PIN, COTTER

91490-20025-00

—

$1.31

In stock
