1977 Yamaha TY250 (TY250D) Frame-Side Cover Diagram

← All diagrams

Find the part on the Frame-Side Cover diagram for your 1977 Yamaha TY250 (TY250D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

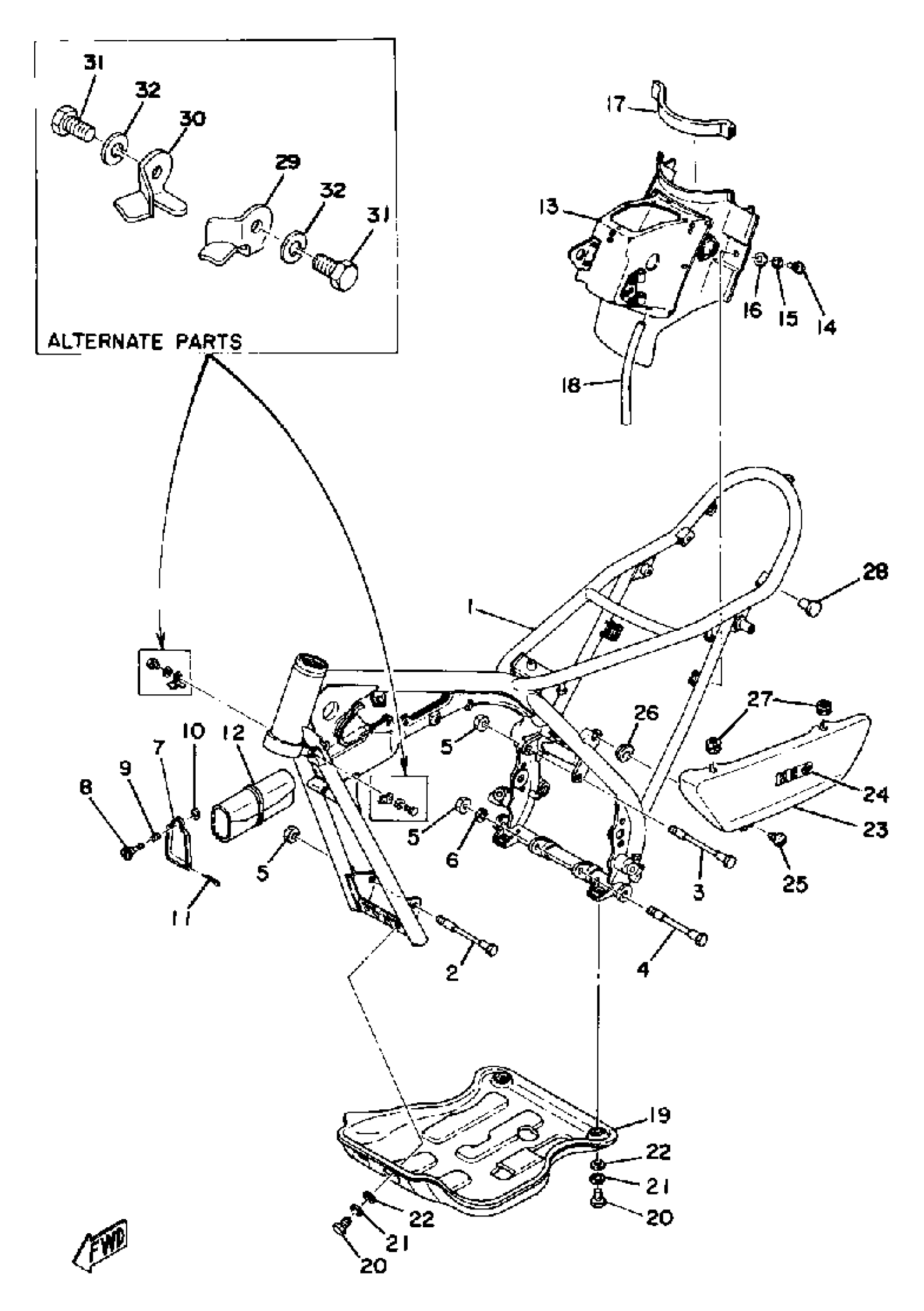

1977 Yamaha TY250 (TY250D) Frame-Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(493-21110-01-35)

1
Out of stock

2

1

$11.26

In stock

3

BOLT(30W)

90109-101A0-00

—

$14.05

In stock

4

BOLT, WASHER BASED (2H7)

90105-10105-00

1
Out of stock

5

1

$6.02

In stock

6

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

7

COVER, TOOL BOX

(434-28171-00-00)

1
Out of stock

8

KNOB, TOOL BOX

(434-28172-00-00)

1
Out of stock

9

SPRING, COMPRESSION

90501-10187-00

1
Out of stock

10

NUT 136217130000

90179-06034-00

1

$6.22

In stock

11

PIN, COTTER (AM5)

91490-30045-00

1
Out of stock

12

TOOL KIT

2A6-W2810-00-00

1

$87.63

In stock

13

BOX, AIR CLEANER

(493-21240-00-00)

1
Out of stock

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

17

DAMPER

(434-21746-00-00)

1
Out of stock

18

HOSE (L420)

90445-092K1-00

—

$10.63

In stock

19

PROTECTOR, ENGINE

(493-21471-02-00)

1
Out of stock

20

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

22

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

23

COVER, SIDE 1

(493-21711-01-00)

1
Out of stock

24

EMBLEM 7

(493-21787-10-00)

1
Out of stock

25

KNOB, SIDE COVER 1

371-21714-00-00

1
Out of stock

26

GROMMET(41Y)

90480-01401-00

—

$5.51

In stock

27

DAMPER, SIDE COVER (437)

90480-12053-00

—

$5.78

In stock

28

PLUG (341-26329-00)

90338-09012-00

—

$7.26

In stock

29

STOPPER, STEERING 1

(493-23432-10-00)

1
Out of stock

30

CAP, END

(493-23438-10-00)

1
Out of stock

31

BOLT (661)

97013-06012-00

—

$4.71

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
