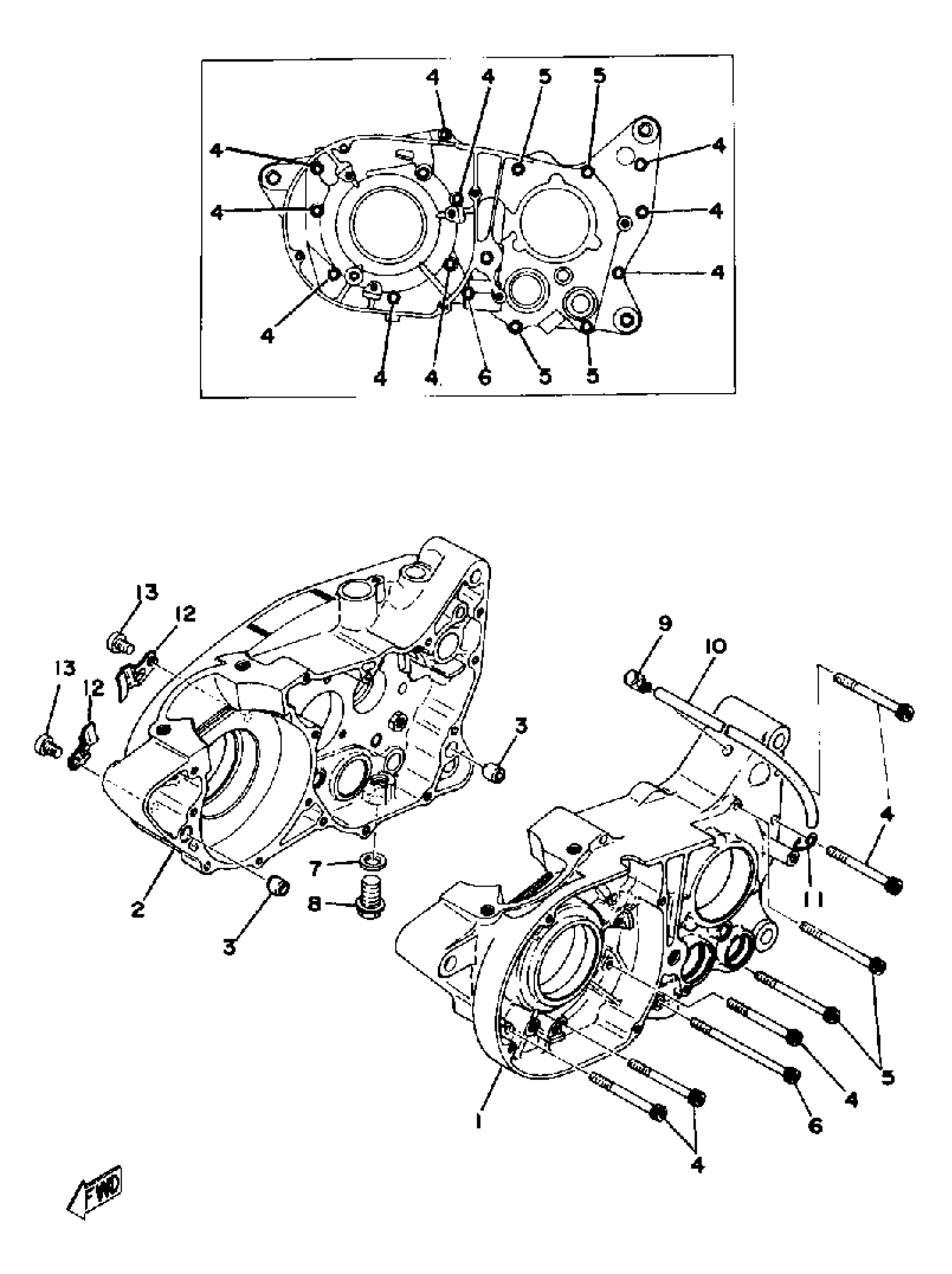

Yamaha TY250D (TY250) 1977 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

(434-15111-02-00)

Unavailable

2

CRANKCASE 2

(434-15121-01-00)

Unavailable

3

PIN, DOWEL

99530-12016-00

$3.85

4

BOLT, SOCKET

91317-06065-00

$3.05

5

BOLT, SOCKET

91317-06075-00

$3.56

6

BOLT

91316-06100-00

Unavailable

7

WASHER, PROTECTOR

4F4-14766-00-00

$5.70

8

BOLT

90109-14385-00

$12.76

9

BREATHER

583-15371-00-00

$5.00

10

HOSE (L570)

90445-07MF1-00

$7.84

11

CLAMP

90465-20035-00

Unavailable

12

HOLDER

434-15118-00-00

Unavailable

13

SCREW,PAN HEAD

98580-08012-00

Unavailable
