1976 Yamaha TY250 (TY250C) Front Fork Diagram

← All diagrams

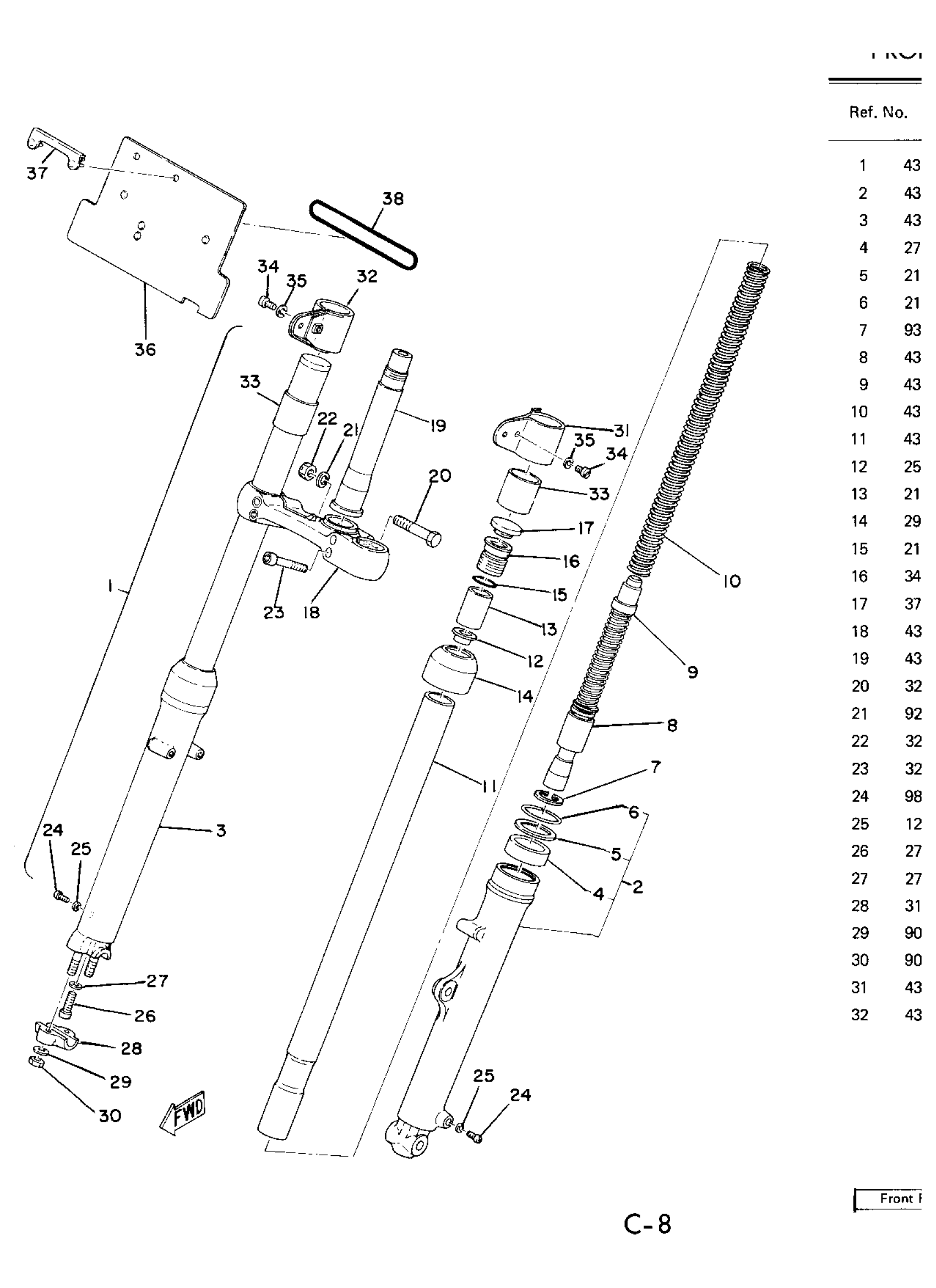

Find the part on the Front Fork diagram for your 1976 Yamaha TY250 (TY250C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha TY250 (TY250C) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(434-23101-00-00)

1
Out of stock

2

TUBE, OUTER 1

(434-23126-00-00)

1
Out of stock

3

TUBE, OUTER 2

(434-23136-00-00)

1
Out of stock

4

OIL SEAL

584-23145-50-00

1

$52.72

In stock

5

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

6

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

7

. CIRCLIP, INNER

93450-30033-00

1
Out of stock

8

PISTON, FRONT FORK

(434-23171-00-00)

1
Out of stock

9

. NO LONGER AVAILABLE

434-23170-00-00

1
Out of stock

10

. SPRING, FRONT FORK

434-23141-00-00

1
Out of stock

11

TUBE, INNER 1

(434-23124-00-00)

1
Out of stock

12

. SEAT, SPRING UPPER

256-23142-60-00

1
Out of stock

13

SPACER

(214-23118-00-00)

1
Out of stock

14

. SEAL, DUST

292-23144-00-00

1
Out of stock

15

. GASKET

214-23114-00-00

1
Out of stock

16

. BOLT, CAP

341-23111-51-00

1
Out of stock

17

. CAP, FRONT FORK

371-23168-60-00

1
Out of stock

18

BRACKET, LOWER

(434-23345-00-00)

1
Out of stock

19

SHAFT, STEERING

(516-23341-31-00)

1
Out of stock

20

BOLT 2

(322-23356-00-00)

1
Out of stock

21

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

22

NUT

(322-23357-00-00)

1
Out of stock

23

BOLT 1

(322-23346-00-00)

1
Out of stock

24

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

25

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

26

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

27

GASKET

509-23158-L0-00

—

$14.34

In stock

28

. HOLDER, AXLE

315-23167-51-00

1
Out of stock

29

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

30

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

31

COVER, UPPER 1

(434-23121-01-93)

1
Out of stock

32

COVER, UPPER 2

(434-23131-01-93)

1
Out of stock

33

GASKET

(434-23163-00-00)

1
Out of stock

34

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

35

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

36

NUMBER PLATE ASSEMBLY

(493-23405-00-33)

1
Out of stock

37

DAMPER

(493-23465-00-00)

1
Out of stock

38

O-RING (802)

93210-99103-00

—
Out of stock
