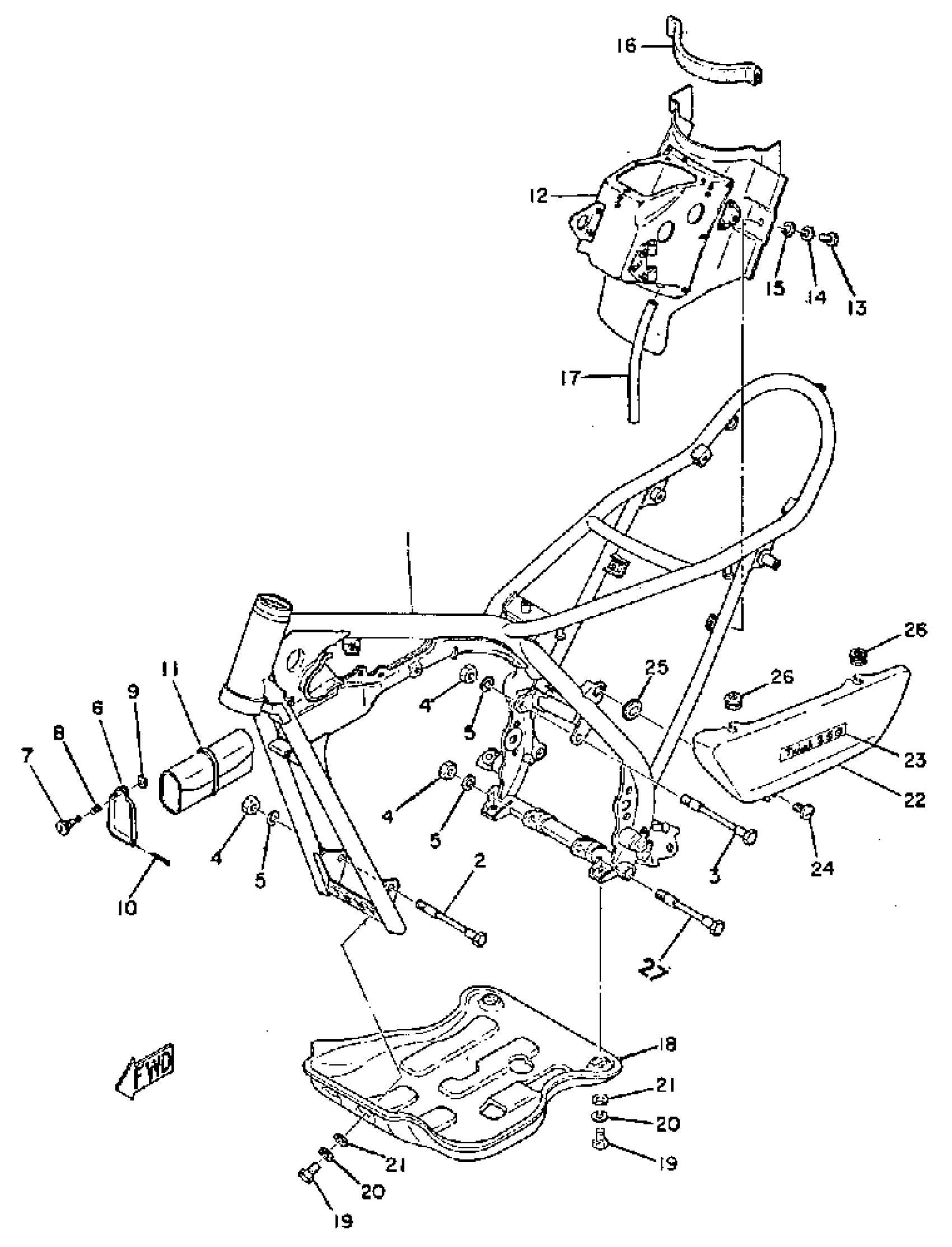

Find the part on the Frame-Side Cover diagram for your 1974 Yamaha TY250 (TY250A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha TY250 (TY250A) Frame-Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(434-21110-01-35)

1
Out of stock

2

BOLT, HEXAGON BASED WASHER.

90105-10051-00

—
Out of stock

3

BOLT(30W)

90109-101A0-00

—
Out of stock

4

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

1
Out of stock

5

YBS67-10 WASHER, SPRING

92990-10100-00

1
Out of stock

6

COVER, TOOL BOX

(434-28171-00-00)

1
Out of stock

7

KNOB, TOOL BOX

(434-28172-00-00)

1
Out of stock

8

SPRING, COMPRESSION

90501-10187-00

1
Out of stock

9

NUT 136217130000

90179-06034-00

1
Out of stock

10

PIN, COTTER (AM5)

91490-30045-00

1
Out of stock

11

TOOL KIT

5A8-W2810-01-00

—
Out of stock

12

BOX, AIR CLEANER

(434-21240-01-00)

1
Out of stock

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1
Out of stock

14

WASHER, SPRING

92995-06100-00

1
Out of stock

15

WASHER, PLATE

90201-06380-00

1
Out of stock

16

DAMPER

(434-21746-00-00)

1
Out of stock

17

HOSE (L420)

90445-092K1-00

—
Out of stock

18

ENG PROTECT TY250

(ACC-11110-52-00)

1
Out of stock

19

BOLT(JA9)

90101-08691-00

—
Out of stock

20

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

21

WASHER, PLAIN

92990-08200-00

1
Out of stock

22

COVER, SIDE 1

(434-21711-00-26)

1
Out of stock

23

EMBLEM 7

(434-21787-00-00)

1
Out of stock

24

KNOB, SIDE COVER 1

371-21714-00-00

1
Out of stock

25

GROMMET(41Y)

90480-01401-00

—
Out of stock

26

DAMPER, SIDE COVER (437)

90480-12053-00

—
Out of stock

27

BOLT, WASHER BASED (2H7)

90105-10105-00

—
Out of stock
