1974 Yamaha TX650 (TX650A) Front Fork XS650C Diagram

← All diagrams

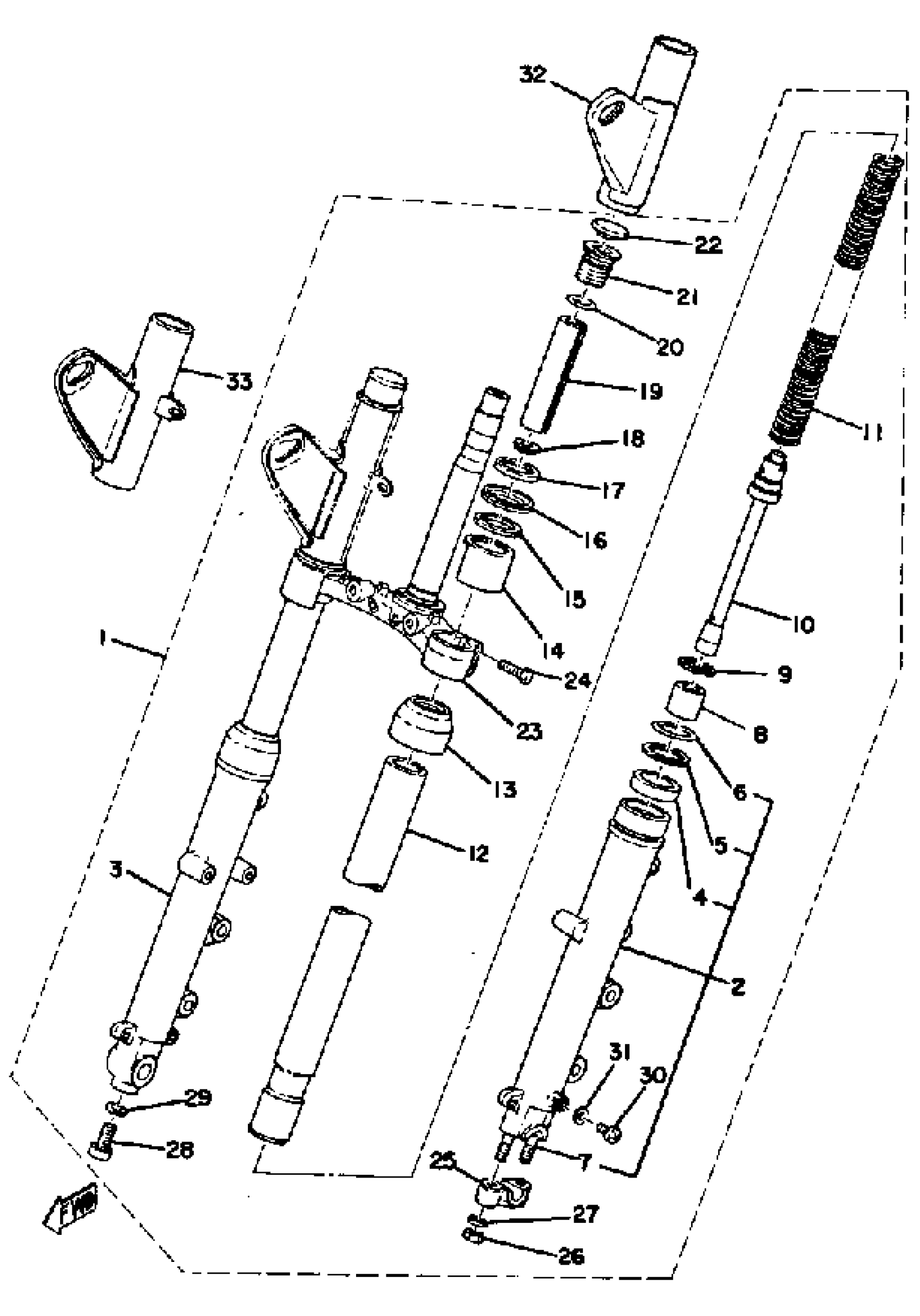

Find the part on the Front Fork XS650C diagram for your 1974 Yamaha TX650 (TX650A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha TX650 (TX650A) Front Fork XS650C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(584-23101-52-00)

1
Out of stock

2

. TUBE, OUTER 1

(584-23126-50-00)

1
Out of stock

3

. TUBE, OUTER 2

(584-23136-50-00)

1
Out of stock

4

OIL SEAL

584-23145-50-00

1

$52.72

In stock

5

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

6

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

7

BOLT, STUD (278)

90116-08261-00

1
Out of stock

8

PISTON, FRONT FORK

(371-23171-60-00)

1
Out of stock

9

CLIP, OIL SEAL

(371-23156-60-00)

1
Out of stock

10

. CYLINDER, FRTFRK

(447-23170-52-00)

1
Out of stock

10

CYLINDER, FRTFRK

(584-23170-52-00)

1
Out of stock

11

SPRING FORK

(1E5-92062-70-00)

1
Out of stock

11

. SPRING, FRONT FORK

447-23141-52-00

1
Out of stock

12

TUBE, INNER 1

(533-23124-31-00)

1
Out of stock

13

SEAL, DUST

584-23144-50-00

1

$26.80

In stock

14

. COVER, OUTER 1

(447-23122-52-00)

1
Out of stock

15

. GASKET (LAMP STAY)

291-23163-61-00

1
Out of stock

16

. GUIDE, COVER LOWER

447-23116-52-00

1
Out of stock

17

. GUIDE, COVER UPPER

168-23115-00-00

1
Out of stock

18

SEAT, SPRING UPPER

(304-23142-50-00)

1
Out of stock

19

SPACER

(1E5-92072-70-00)

1
Out of stock

19

SPACER

(306-23118-60-00)

1
Out of stock

20

. GASKET

214-23114-00-00

1
Out of stock

21

. BOLT, CAP

341-23111-51-00

1
Out of stock

22

. CAP, FRONT FORK

371-23168-60-00

1
Out of stock

23

. UNDER BRACKET

(533-23340-30-33)

1
Out of stock

24

BOLT, AXLE HOLDER

18G-23128-00-00

—

$7.77

In stock

25

HOLDER,AXLE

341-23167-50-00

—
Out of stock

26

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

27

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

28

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

29

GASKET

509-23158-L0-00

—

$14.34

In stock

30

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

31

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

32

COVER, UPPER 1

(447-23121-51-G3)

1
Out of stock

33

SPRING FORK

(1E5-92062-70-00)

1
Out of stock

33

SPACER

(1E5-92072-70-00)

1
Out of stock

33

COVER, UPPER 2

(447-23131-51-G3)

1
Out of stock

33

FRONT FORK ASSEMBLY

(584-23101-52-00)

1
Out of stock

33

CYLINDER, FRTFRK

(584-23170-52-00)

1
Out of stock
