1974 Yamaha TW433F Track Drive Diagram

← All diagrams

Find the part on the Track Drive diagram for your 1974 Yamaha TW433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

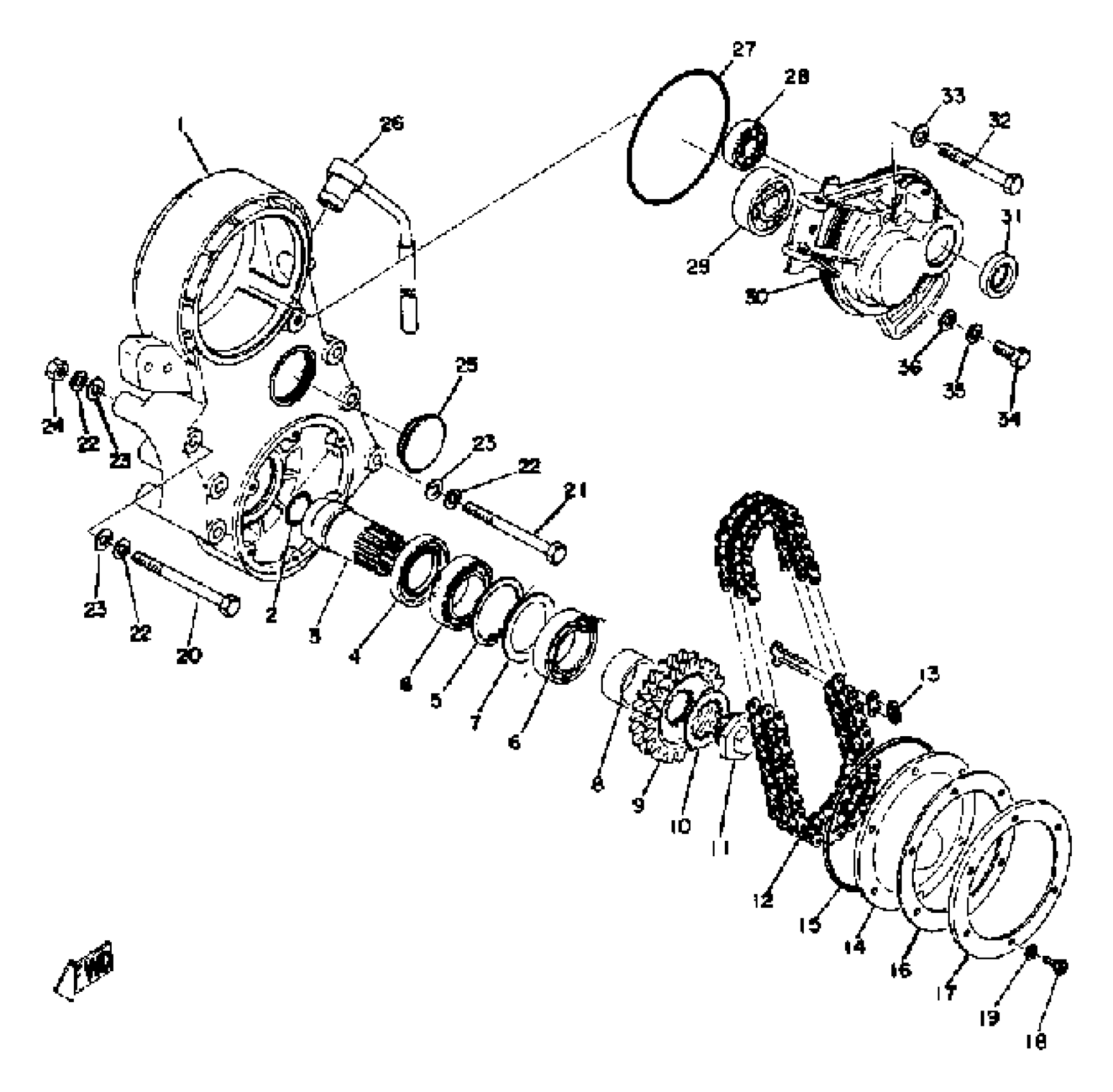

1974 Yamaha TW433F Track Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

(868-47541-00-00)

1
Out of stock

2

O-RING (437)

93210-24235-00

1

$5.72

In stock

3

JOURNAL 1

868-47571-00-00

1
Out of stock

4

OIL SEAL, SD-TYPE

93102-40080-00

1
Out of stock

5

CIRCLIP, R-TYPE

93420-55028-00

1
Out of stock

6

BEARING

93306-90702-00

1
Out of stock

7

SPACER

90560-35050-00

1
Out of stock

8

COLLAR

90387-35364-00

1
Out of stock

9

SPROCKET, CHN DRVN

(868-47548-80-00)

1
Out of stock

10

WASHER, LOCK

(90215-29094-00)

1
Out of stock

11

BOLT

90109-24412-00

1
Out of stock

12

CHAIN 868

(94804-25054-00)

1
Out of stock

13

. JOINT CHAIN

94904-25001-00

1
Out of stock

14

RING, HOUSING

(806-47558-00-00)

1
Out of stock

15

CAP, HOUSING

(835-47543-00-00)

1
Out of stock

16

GASKET

821-47544-00-00

1
Out of stock

17

PLATE

(821-47591-00-00)

1
Out of stock

18

SCREW

90143-05004-00

—

$2.20

In stock

19

WASHER, SEAL

90210-05005-00

1
Out of stock

20

BOLT, HEXAGON

97027-08100-00

—

$4.55

In stock

21

BOLT (97321-08090)

97023-08090-00

1
Out of stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

23

WASHER, PLATE

90201-08020-00

—

$4.67

In stock

24

NUT, HEXAGON

90170-08031-00

1
Out of stock

25

CAP (NOT AVAIL)

810-47552-00-00

1
Out of stock

26

BREATHER

(868-47586-00-00)

1
Out of stock

27

O-RING

93211-13109-00

1
Out of stock

28

—

$31.64

In stock

29

BRG,R-B 6303 47MM 115G NK

93306-30302-00

—

$39.88

In stock

30

HOUSING, SEC SHAFT

(8A4-47561-00-00)

1
Out of stock

31

OIL SEAL (22X32X5-818)

93102-22087-00

—

$10.68

In stock

32

BOLT (6K8)

97013-08075-00

—

$5.66

In stock

33

WASHER (821)

90210-08002-00

—

$5.68

In stock

34

BOLT (682)

97013-08025-00

—

$6.80

In stock

35

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

36

WASHER, PLATE

90201-08020-00

—

$4.67

In stock
