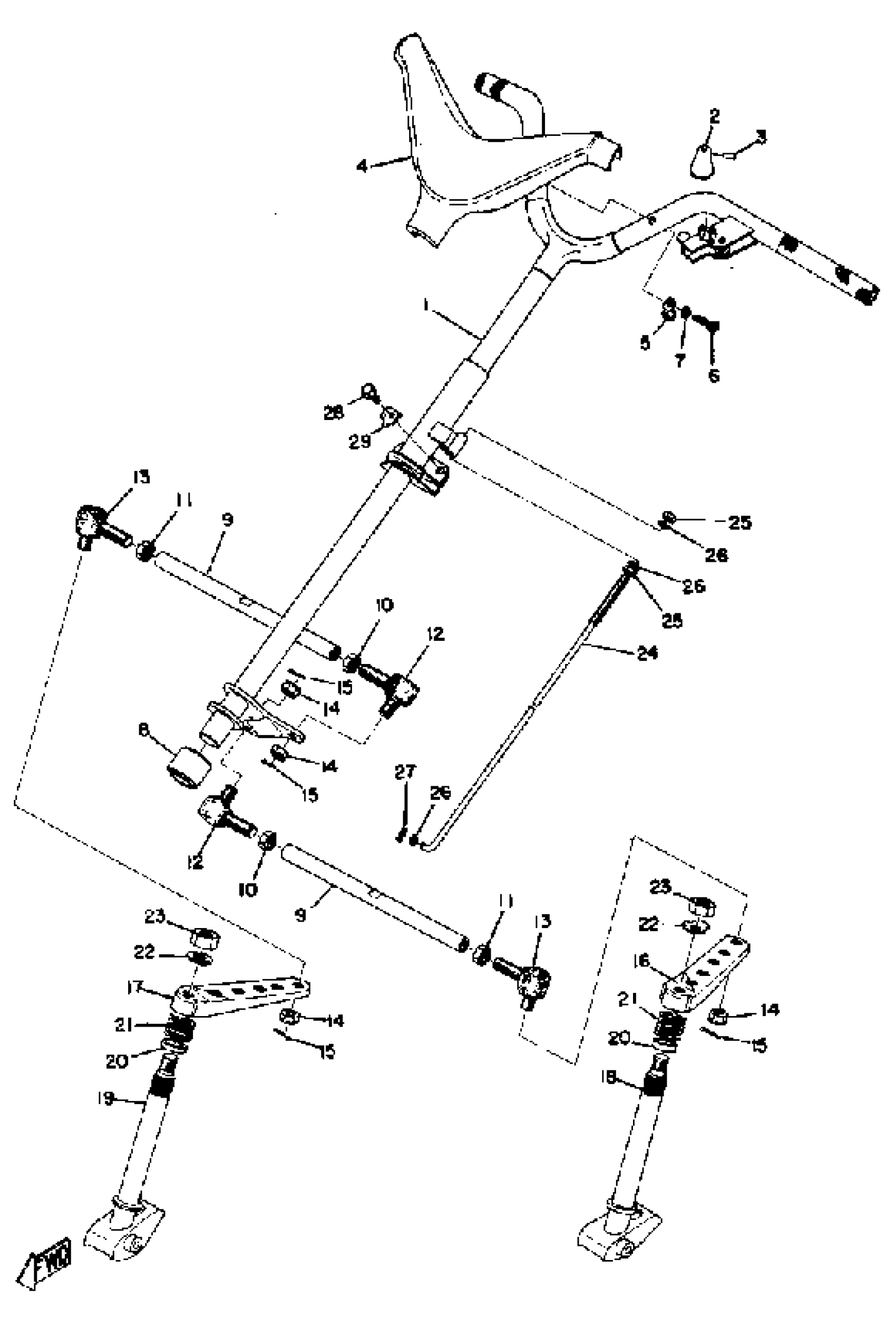

Find the part on the Steering diagram for your 1974 Yamaha TW433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha TW433F Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STRG COLUMN ASSEMBLY

(863-23810-00-00)

1
Out of stock

2

LEVER, LOCK

(803-83965-00-00)

1
Out of stock

3

PIN, SPEC''L SHAPE

(90249-04022-00)

1
Out of stock

4

PAD, STEERING

(863-23815-01-00)

1
Out of stock

5

CLAMP

(90462-08003-00)

1
Out of stock

6

SCREW, PAN

98507-05035-00

1

$6.69

In stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

BEARING, STRG LOWER

(806-23875-00-00)

1
Out of stock

9

ROD, STEERING RELAY

(863-23821-00-00)

1
Out of stock

10

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

11

NUT (821-23834-00)

90170-12054-00

1
Out of stock

12

JOINT, UNIVERSAL 1

821-23841-90-00

1
Out of stock

13

JOINT, UNIVERSAL 2

(821-23845-90-00)

1
Out of stock

14

NUT, CASTLE

90171-10002-00

1
Out of stock

15

PIN, COTTER(6L5)

91490-25030-00

1

$2.85

In stock

16

ARM, OUTSIDE 1

(863-23851-01-00)

1
Out of stock

17

ARM, OUTSIDE 2

(863-23852-01-00)

1
Out of stock

18

COLUMN, SKI 1

863-23853-01-00

1
Out of stock

19

COLUMN, SKI 2

(863-23854-01-00)

1
Out of stock

20

SPACER

90560-20037-00

1
Out of stock

21

SPRING, COMPRESSION

90501-35154-00

1
Out of stock

22

WASHER, LOCK (810-23857-00)

90215-12031-00

1
Out of stock

23

NUT(3DM)

95304-12600-00

—

$6.68

In stock

24

BAR, TENSION

(810-23861-00-00)

1
Out of stock

25

NUT(650)

95380-06700-00

—

$6.17

In stock

26

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

27

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

28

BOLT

(90101-06199-00)

1
Out of stock

29

WASHER, LOCK

(90215-06060-00)

1
Out of stock
