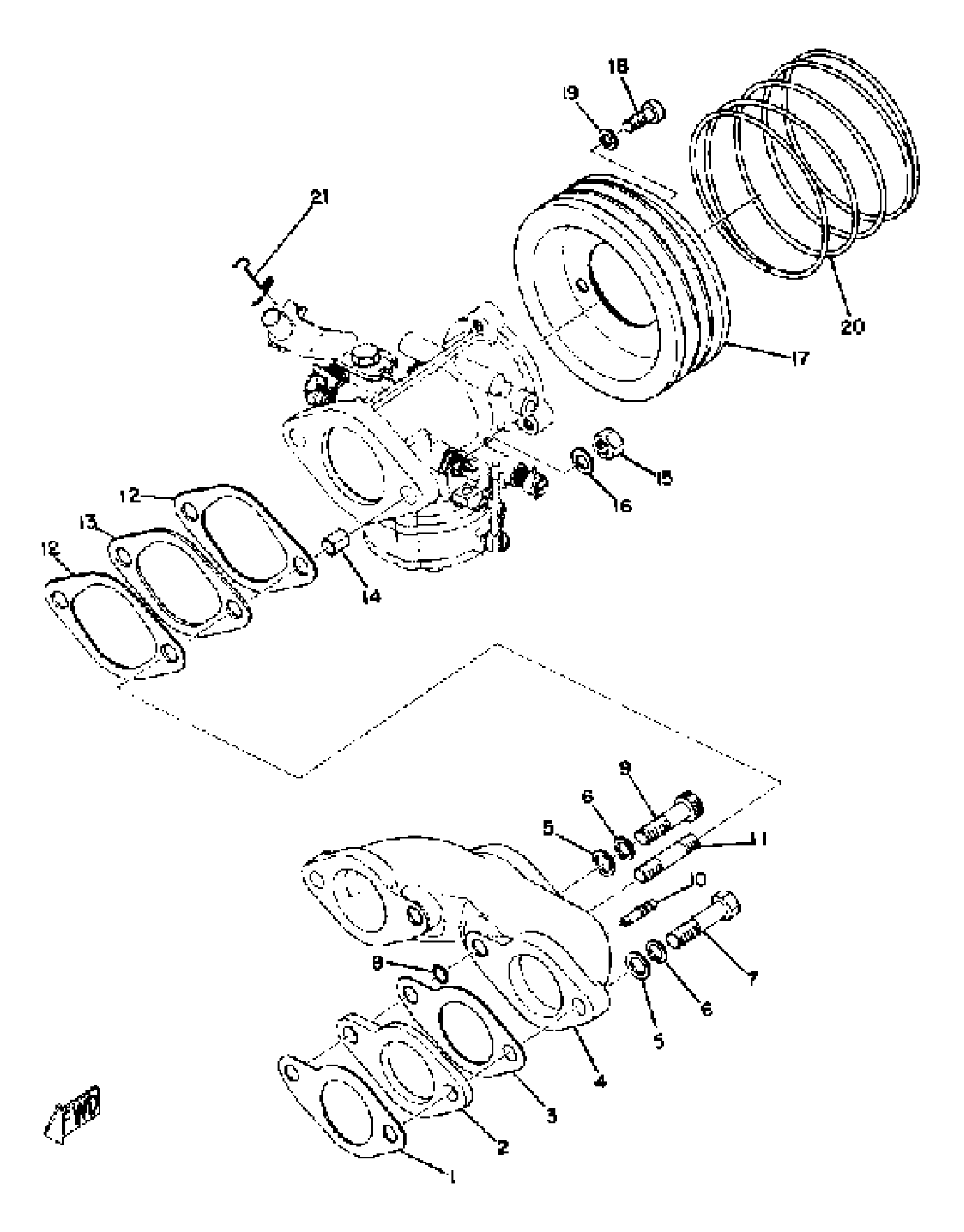

Find the part on the Intake diagram for your 1974 Yamaha TW433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha TW433F Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET,MANIFOLD

811-13556-09-00

1
Out of stock

2

MANIFOLD, INTAKE

(8F1-13555-00-00)

1
Out of stock

3

GASKET

811-13563-09-00

1
Out of stock

4

JOINT, CARBURETOR

(826-13565-00-00)

1
Out of stock

5

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

BOLT

97013-08035-00

1

$4.80

In stock

8

O-RING (11M)

93210-07540-00

1

$5.77

In stock

9

BOLT, SOCKET

91317-08030-00

1

$6.17

In stock

10

NOZZLE

824-13552-00-00

1
Out of stock

11

BOLT, STUD

(90116-08045-00)

1
Out of stock

12

GASKET

810-13566-09-00

1
Out of stock

13

JOINT, CARBURETOR

824-13585-00-00

1
Out of stock

14

SPACER

(810-13576-00-00)

1
Out of stock

15

. NUT

95380-08700-00

1

$3.07

In stock

16

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

17

PLATE

838-14477-01-00

1
Out of stock

18

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

SPRING, COMPRESSION

(90501-35157-00)

1
Out of stock

21

CLAMP, THROTTLE

822-41222-00-00

1
Out of stock
