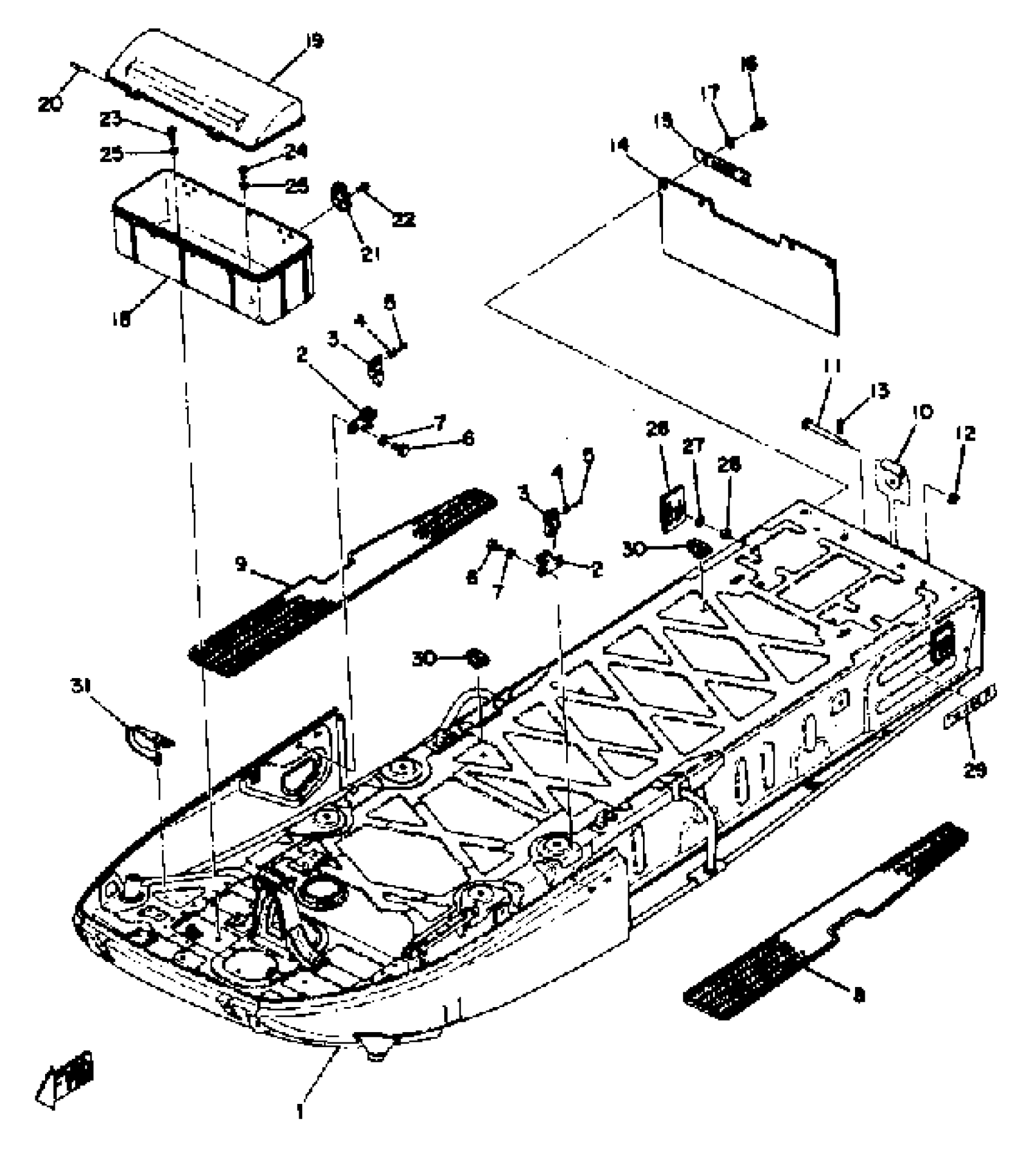

Find the part on the Frame diagram for your 1974 Yamaha TW433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha TW433F Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LATCH ASSEMBLY

807-77170-00-00

1
Out of stock

1

FRAME

(868-21910-00-00)

1
Out of stock

3

. LEVER, LATCH 1

806-77173-00-00

1
Out of stock

4

. SPRING, TORSION

90508-10012-00

1
Out of stock

5

. PIN, SPECIAL SHAPE

90249-04068-00

1
Out of stock

6

BOLT, HEXAGON

97313-05016-00

1
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

COVER, FOOTREST

(806-27413-00-00)

1
Out of stock

9

COVER, FOOTREST

(806-27423-00-00)

1
Out of stock

10

BRACKET, HITCH 1

802-77591-00-00

1
Out of stock

11

PIN, CLEVIS

(91701-08102-00)

1
Out of stock

12

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

13

PIN, COTTER

91490-25020-00

1

$2.94

In stock

14

FLAP

(807-77595-02-00)

1
Out of stock

15

PLATE, FLAP 1

(807-77593-00-00)

1
Out of stock

16

BOLT (661)

97013-06012-00

—

$4.71

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

LUGGAGE BOX

(827-77391-00-00)

1
Out of stock

19

COVER, LUGGAGE BOX

(822-77392-00-00)

1
Out of stock

20

PIN, SPEC''L SHAPE

90249-03021-00

1
Out of stock

21

LUGGE BOX LTCH ASSEMBLY

(822-77340-00-00)

1
Out of stock

22

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

23

SCREW, PAN

98507-06014-00

—

$6.18

In stock

24

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

25

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

26

REFLECTOR, REAR 1

(821-85131-00-00)

1
Out of stock

27

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

28

NUT U (861)

90185-06040-00

—

$5.72

In stock

29

EMBLEM 4

(868-77354-00-00)

1
Out of stock

30

CLAMP

(90464-13008-00)

1
Out of stock

31

BAND

(841-82591-00-00)

1
Out of stock
