2010 Yamaha TW200 CA (TW200ZC) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 2010 Yamaha TW200 CA (TW200ZC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

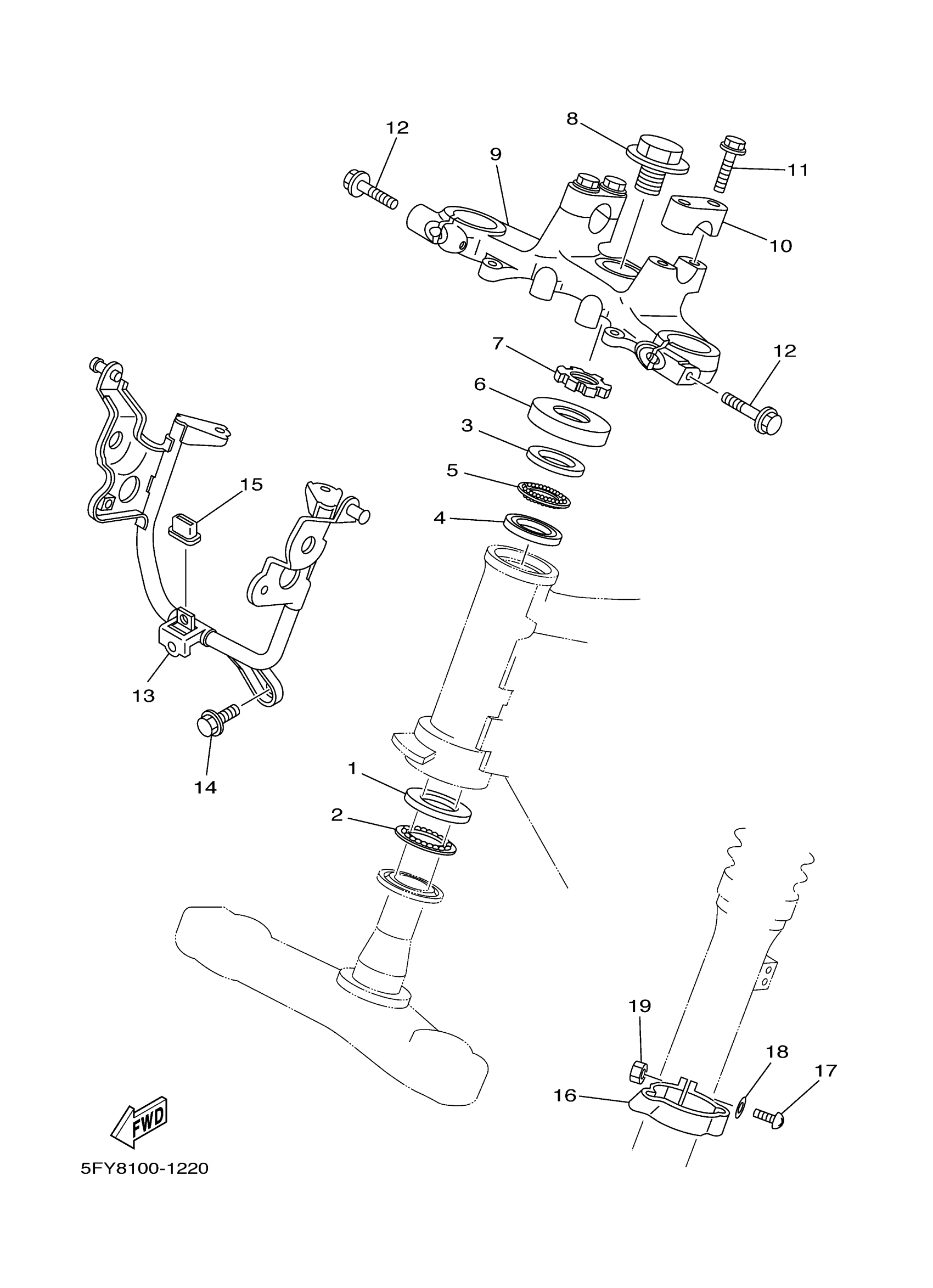

2010 Yamaha TW200 CA (TW200ZC) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 2

B6E-23412-00-00

1
Out of stock

2

RETAINER, BALL BEARING

B6E-2341E-00-00

1
Out of stock

3

RACE, BALL 1

BP2-23411-00-00

1
Out of stock

4

RACE, BALL 2

BP2-23412-00-00

1
Out of stock

5

RETAINER, BALL BEARING

BP2-2341E-00-00

—
Out of stock

6

COVER, BALL RACE 2

36X-23416-00-00

1
Out of stock

7

NUT

90179-25004-00

1
Out of stock

8

BOLT (2A2)

90105-14102-00

1
Out of stock

9

CROWN, HANDLE

2JX-23435-10-35

1
Out of stock

10

HOLDER, HANDLE UPPER

1E6-23441-10-35

1
Out of stock

11

BOLT, FLANGE(4FM)

95814-08035-00

1
Out of stock

12

BOLT, FLANGE(3XF)

95024-08050-00

1
Out of stock

13

STAY, HEADLIGHT

5FY-23174-00-00

1
Out of stock

14

BOLT, FLANGE

95817-06012-00

1
Out of stock

15

DAMPER

30X-23445-00-00

1
Out of stock

16

HOLDER, CABLE

34X-23317-00-00

—
Out of stock

17

SCREW, PAN HEAD(4MY)

98507-05018-00

—
Out of stock

18

WASHER(1RW)

92907-05600-00

—
Out of stock

19

NUT, HEXAGON

95317-05600-00

—
Out of stock
