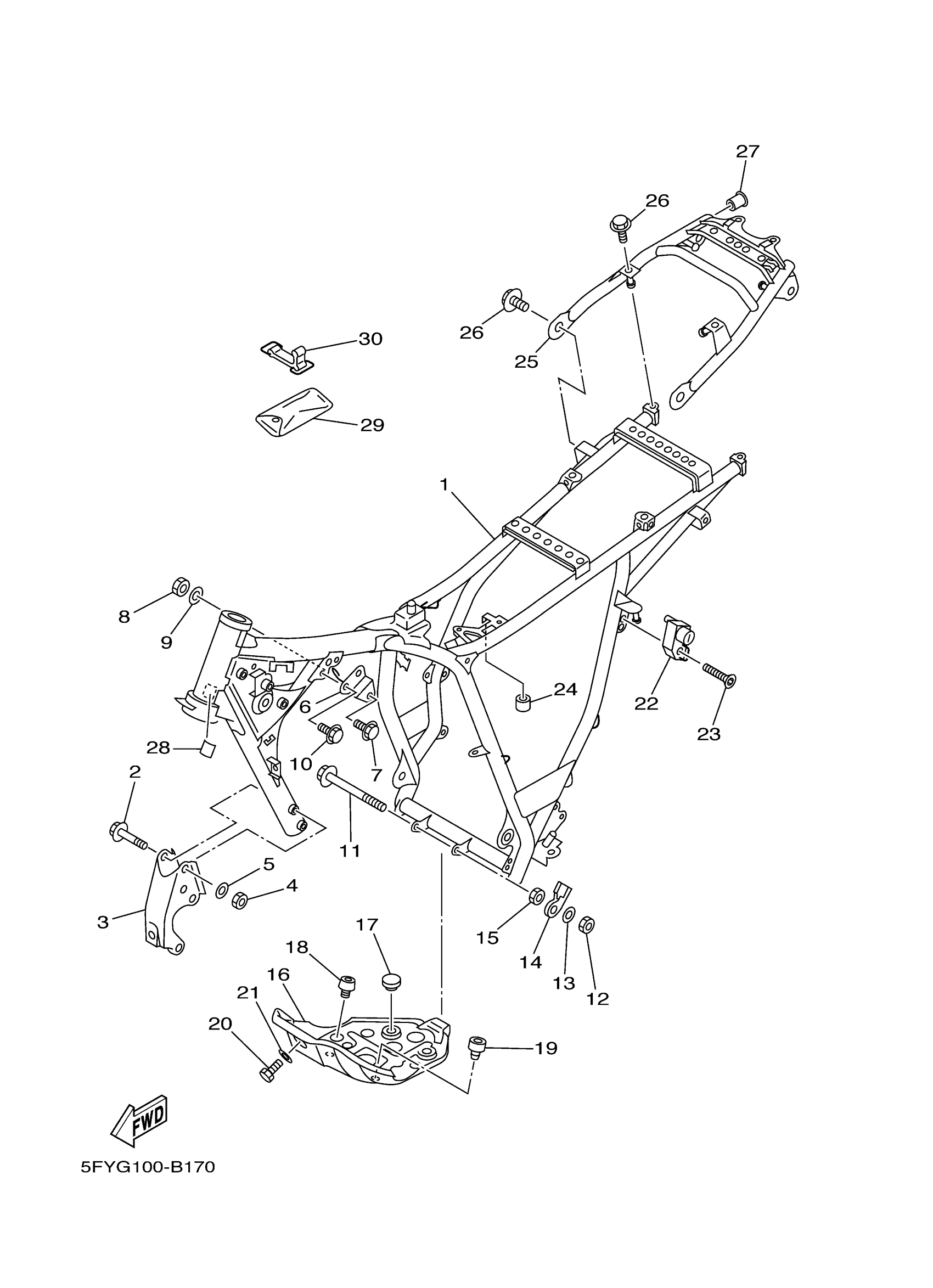

2008 Yamaha TW200 CA (TW200XC) Frame Diagram
Find the part on the Frame diagram for your 2008 Yamaha TW200 CA (TW200XC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
3
STAY, ENGINE 2
1RL-21316-00-WL
1
Out of stock
19
STOPPER, MAIN STAND
4N0-27114-00-00
—
Out of stock
24
GROMMET (5G0)
90480-12299-00
—
Out of stock
25
REAR FRAME COMP.
2JX-21190-00-P1
—
Out of stock
