2007 Yamaha TW200 CA (TW200W1C) Transmission Diagram

← All diagrams

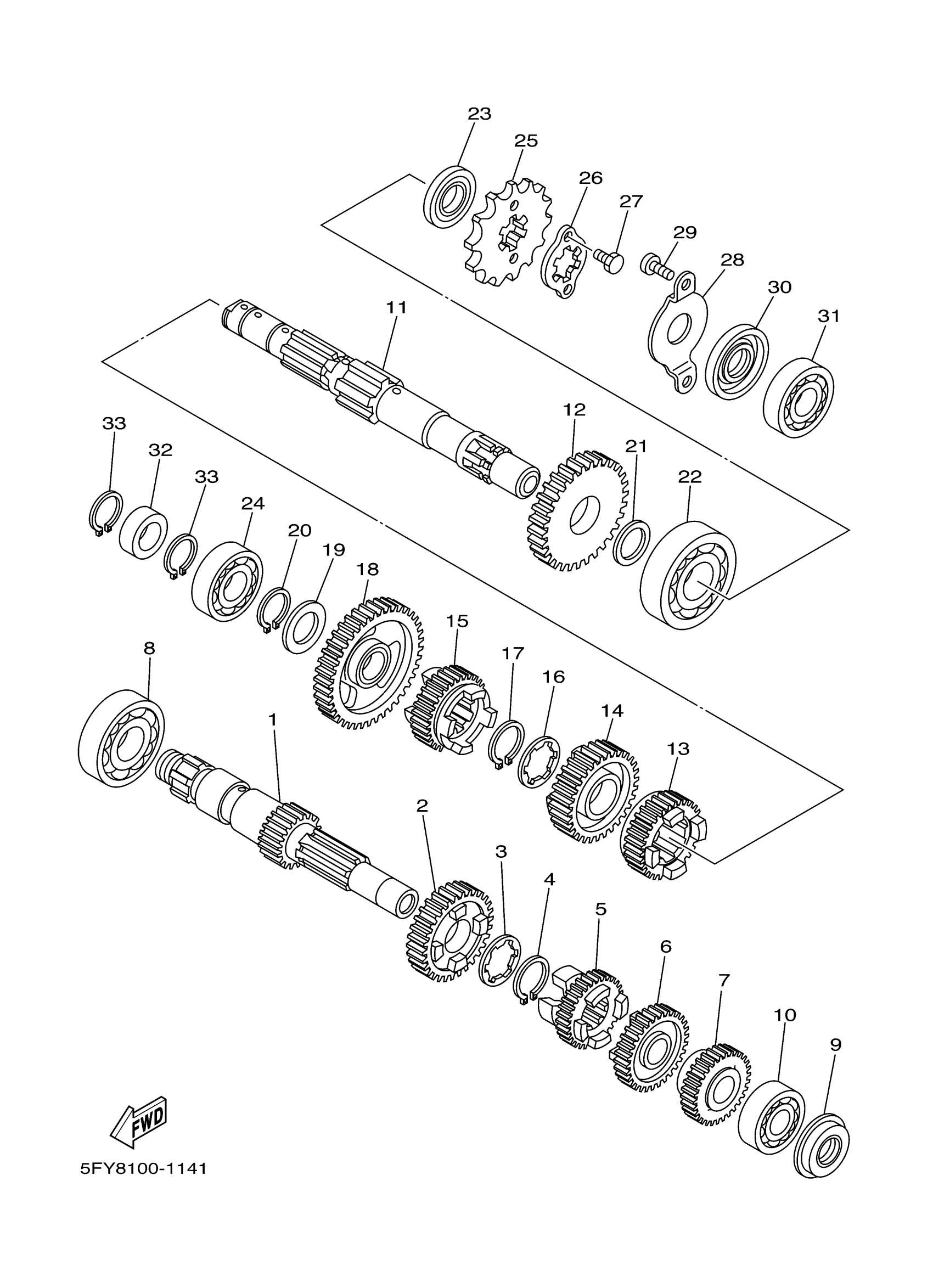

Find the part on the Transmission diagram for your 2007 Yamaha TW200 CA (TW200W1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Yamaha TW200 CA (TW200W1C) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

15A-17411-01-00

—
Out of stock

2

GEAR, 5TH PINION

15A-17151-01-00

—
Out of stock

3

WASHER (5H0)

90209-16209-00

1
Out of stock

4

CIRCLIP (525)

93410-20038-00

1
Out of stock

5

GEAR, 2ND PINION

5H0-17121-01-00

—
Out of stock

6

GEAR, 4TH PINION

15A-17141-00-00

—
Out of stock

7

GEAR, 2ND PINION

15A-17121-00-00

—
Out of stock

8

BEARING(1YW)

93306-20461-00

1
Out of stock

9

OIL SEAL (5H0)

93101-15101-00

1
Out of stock

10

BRG, R-B (7H4)

93306-20211-00

1
Out of stock

11

DRIVE AXLE ASSY

2JX-17402-00-00

—
Out of stock

12

GEAR, 2ND WHEEL

15A-17221-00-00

—
Out of stock

13

GEAR, 4TH WHEEL

15A-17241-00-00

—
Out of stock

14

GEAR, 3RD WHEEL

15A-17231-00-00

—
Out of stock

15

GEAR, 6TH WHEEL

5MP-17261-00-00

—
Out of stock

16

WASHER (5H0)

90209-18208-00

—
Out of stock

17

CIRCLIP (537)

93410-22039-00

—
Out of stock

18

GEAR, 1ST WHEEL

15A-17211-01-00

—
Out of stock

19

WASHER PLATE 306155610000

90201-17257-00

—
Out of stock

20

CIRCLIP(1EY)

99009-17400-00

—
Out of stock

21

WASHER, PLATE(3HN)

90201-225M9-00

—
Out of stock

22

BEARING(2JX)

93306-20580-00

—
Out of stock

23

OIL SEAL(2JX)

93102-22389-00

—
Out of stock

24

BEARING (30X)

93306-20332-00

—
Out of stock

25

SPROCKET, DRIVE 14T

93823-14149-00

—
Out of stock

26

HOLDER, SPROCKET

2JX-17456-00-00

—
Out of stock

27

BOLT

97027-05010-00

—
Out of stock

28

PLATE, COVER

2JX-17471-00-00

—
Out of stock

29

SCREW, PAN

98507-06010-00

—
Out of stock

30

OIL SEAL (17X40X5-3E8)

93102-17187-00

—
Out of stock

31

BEARING(37F)

93306-20335-00

—
Out of stock

32

SPACER(3RW)

90560-17368-00

—
Out of stock

33

CIRCLIP(1EY)

99009-17400-00

—
Out of stock
