2007 Yamaha TW200 CA (TW200W1C) Flasher Light Diagram

← All diagrams

Find the part on the Flasher Light diagram for your 2007 Yamaha TW200 CA (TW200W1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

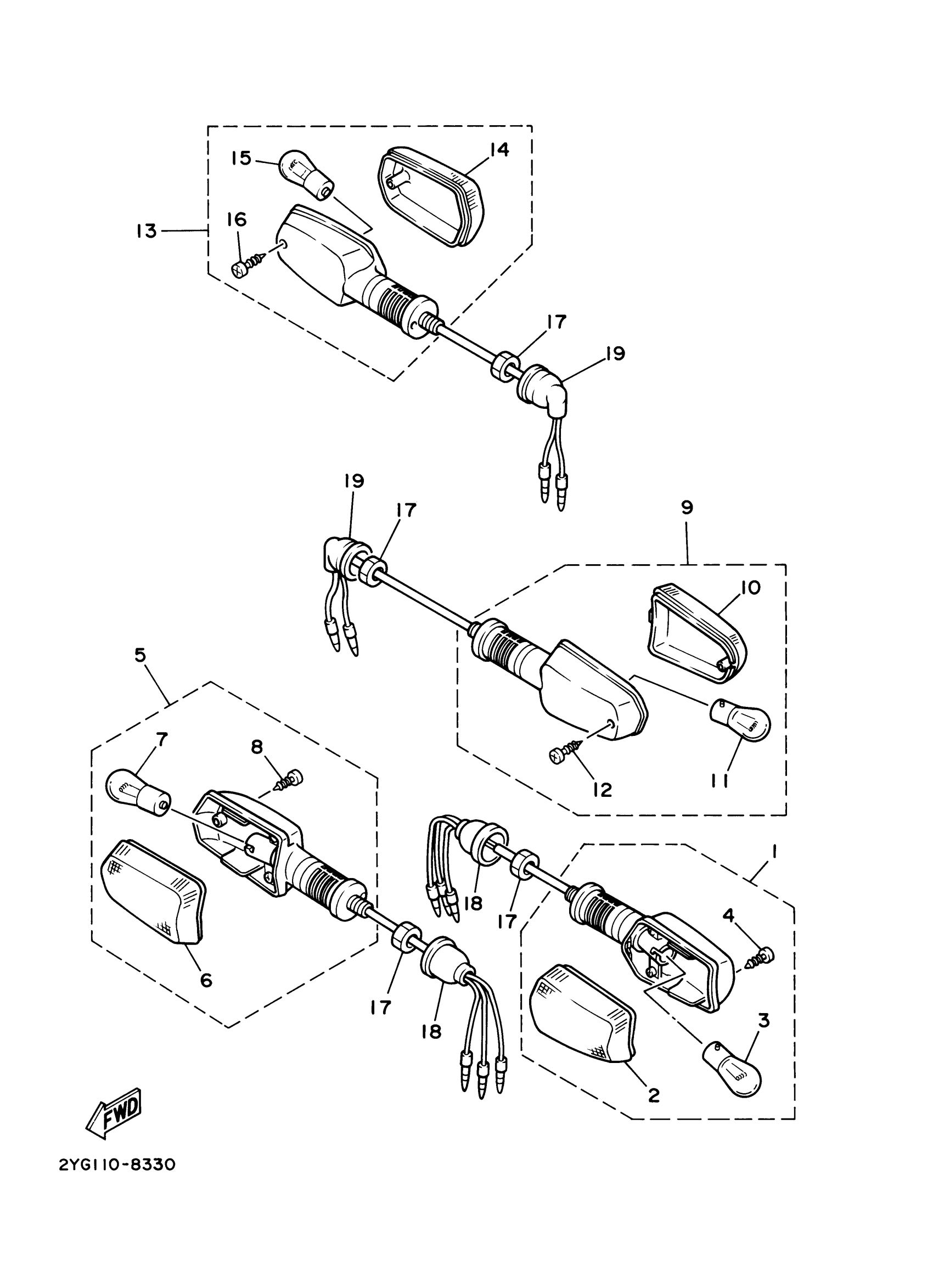

2007 Yamaha TW200 CA (TW200W1C) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FLASHER LIGHT ASSY 1

1UF-83310-00-00

1

$125.69

In stock

2

LENS, FLASHER

51L-83332-01-00

—

$8.63

In stock

3

1

$10.02

In stock

4

SCREW, PAN TAP.2

97707-40520-00

1

$7.14

In stock

5

FRONT FLASHER LIGHT ASSY 2

1UF-83320-00-00

1

$127.45

In stock

6

LENS, FLASHER 2

51L-83342-01-00

1

$7.14

In stock

7

1

$10.02

In stock

8

SCREW, PAN TAP.2

97707-40520-00

1

$7.14

In stock

9

REAR FLASHER LIGHT ASSY 1

1UF-83330-00-00

—

$123.75

In stock

10

LENS, FLASHER 2

51L-83342-01-00

1

$7.14

In stock

11

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

12

SCREW, PAN TAP.2

97707-40520-00

1

$7.14

In stock

13

REAR FLASHER LIGHT ASSY 2

1UF-83340-00-00

1

$117.07

In stock

14

LENS, FLASHER

51L-83332-01-00

—

$8.63

In stock

15

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

16

SCREW, PAN TAP.2

97707-40520-00

1

$7.14

In stock

17

NUT, HEXAGON SMALL

95317-12700-00

—

$6.17

In stock

18

CAP

10V-83365-01-00

—

$2.83

In stock

19

CAP

18G-83365-00-00

—

$17.88

In stock
