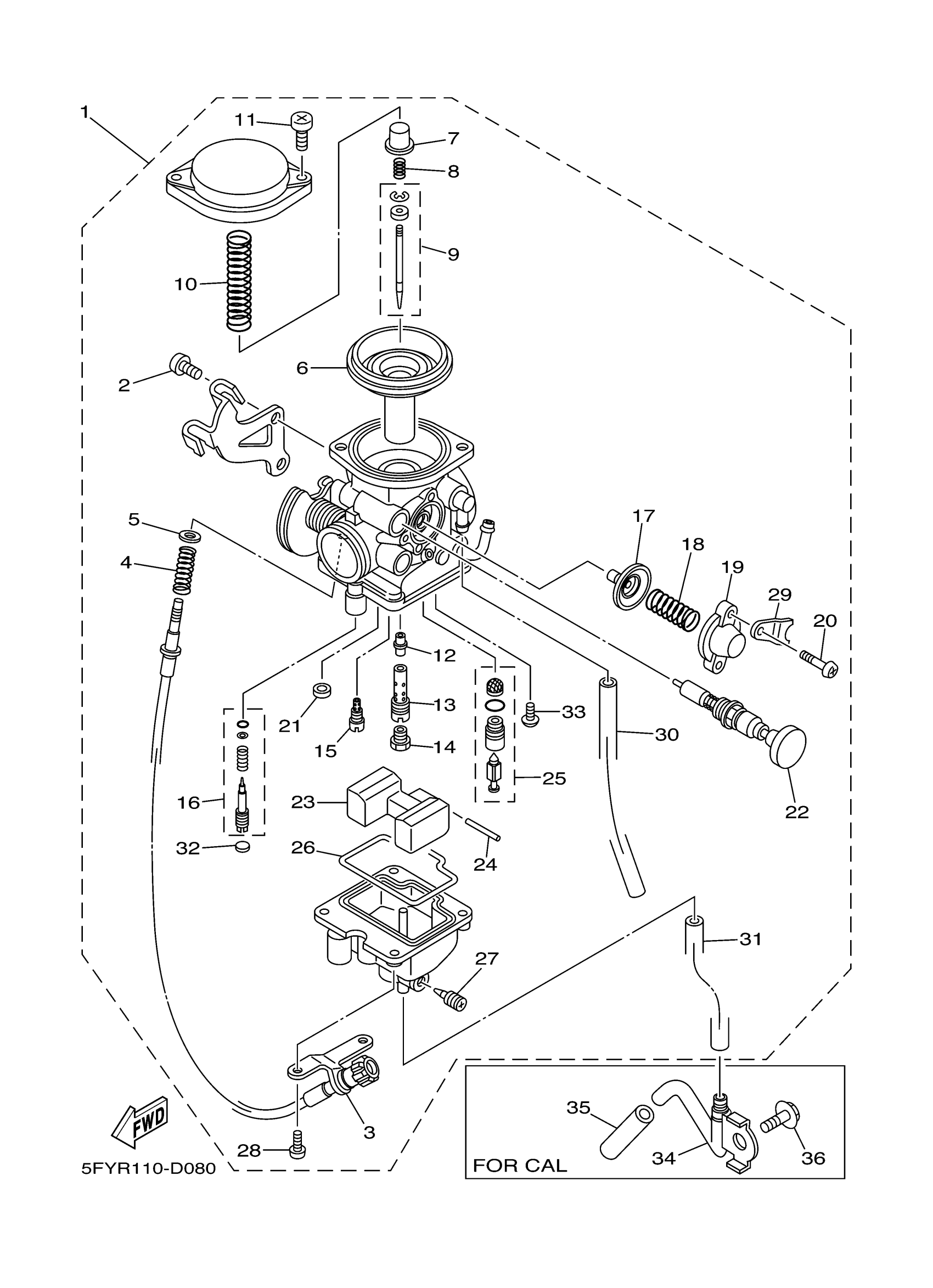

Find the part on the Carburetor diagram for your 2007 Yamaha TW200 CA (TW200W1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Yamaha TW200 CA (TW200W1C) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY 1

5FY-14301-20-00

1
Out of stock

1

CARBURETOR ASSY 1

5FY-14301-10-00

1
Out of stock

2

SCREW, PAN HEAD(62X)

97885-05010-00

1
Out of stock

3

SCREW, THROTTLE

5LB-14321-00-00

1
Out of stock

4

SPRING, THROTTLE STOP

2JX-14333-00-00

1
Out of stock

5

WASHER, PLAIN

5LB-14357-00-00

1
Out of stock

6

SUCTION PISTON ASSY

5LB-1434A-00-00

1
Out of stock

7

SEAT, SPRING

5LB-14936-00-00

—
Out of stock

8

SPRING

5LB-14275-00-00

1
Out of stock

9

NEEDLE

5FY-14336-00-00

1
Out of stock

10

SPRING

5LB-14286-00-00

1
Out of stock

11

SCREW

5LB-14216-00-00

1
Out of stock

12

NOZZLE, MAIN

5LB-14341-00-00

1
Out of stock

13

BLEED, MAIN NOZZLE

5LB-14341-10-00

—
Out of stock

14

JET, MAIN (# 125)

288-14343-63-00

1
Out of stock

14

JET, MAIN (#128) (85L)

288-14355-64-00

—
Out of stock

15

JET, PILOT (#31)

5LB-14342-65-00

—
Out of stock

16

PILOT SCREW SET

5LB-14105-00-00

—
Out of stock

17

DIAPHRAGM ASSY 1

5LB-14368-00-00

—
Out of stock

18

SPRING

5LB-14589-00-00

—
Out of stock

19

COVER 1

5LB-14293-00-00

—
Out of stock

20

SCREW, LEVER FITTING

214-24535-00-00

—
Out of stock

21

PLUG

50M-14355-01-00

—
Out of stock

22

PLUNGER, STARTER

5FY-14371-00-00

—
Out of stock

23

FLOAT

5LB-14385-00-00

—
Out of stock

24

PIN, FLOAT

5LB-14386-00-00

—
Out of stock

25

NEEDLE VALVE ASSY

5LB-14390-00-00

—
Out of stock

26

GASKET, FLOAT CHAMBER

5LB-14384-00-00

—
Out of stock

27

AIR SCREW SET

4JP-14104-00-00

—
Out of stock

28

SCREW

5LB-14592-00-00

—
Out of stock

29

BRACKET 2

5LB-14292-00-00

—
Out of stock

30

PIPE

5LB-14197-00-00

—
Out of stock

31

PIPE

5FY-14196-00-00

—
Out of stock

32

PLUG

4KN-1432A-00-00

—
Out of stock

33

SCREW, BIND(6L2)

98980-04006-00

1
Out of stock

34

PIPE

2JX-14193-00-00

—
Out of stock

35

HOSE (L200)

90445-07176-00

—
Out of stock

36

BOLT, FLANGE

95817-08012-00

—
Out of stock
