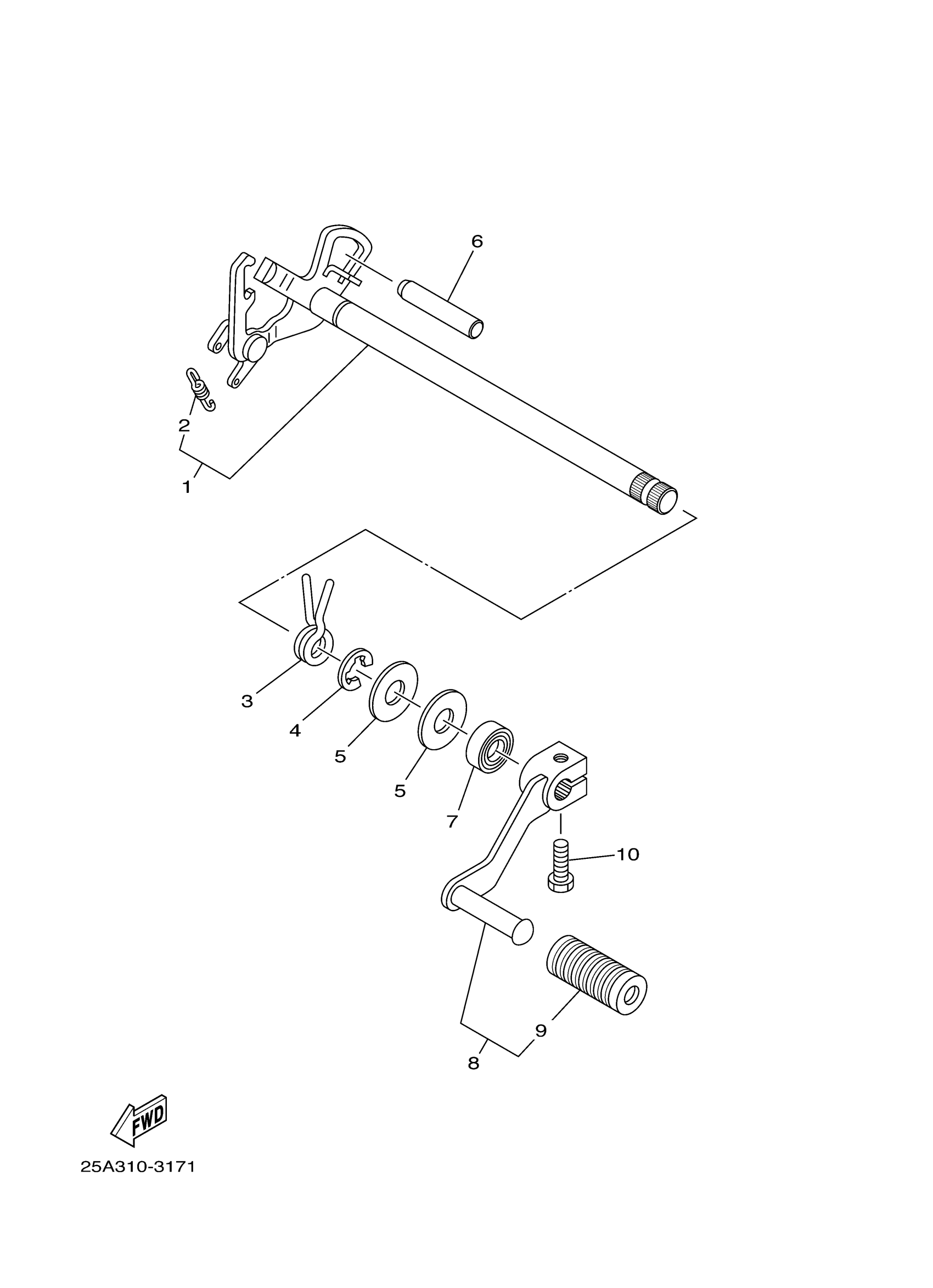

Yamaha TW200VC (TW200 CA) 5FYW 2006 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT LEVER ASSY

5H0-18120-02-00

$87.43

2

SPRING, TENSION (4H7)

90506-08227-00

$2.80

3

SPRING, TORSION (15A)

90508-29540-00

$6.11

4

CIRCLIP

99006-10600-00

$6.45

5

WASHER

90201-12588-00

$5.93

6

PIN, DOWEL (4H7)

93608-50158-00

$6.58

7

OIL SEAL (12X22X5-371)

93102-12106-00

$9.45

8

SHIFT PEDAL ASSY

1RL-18110-00-00

$22.06

9

COVER, CHANGE PEDAL

132-18113-01-00

$5.96

10

BOLT, HEXAGON

97017-06020-00

$2.37
