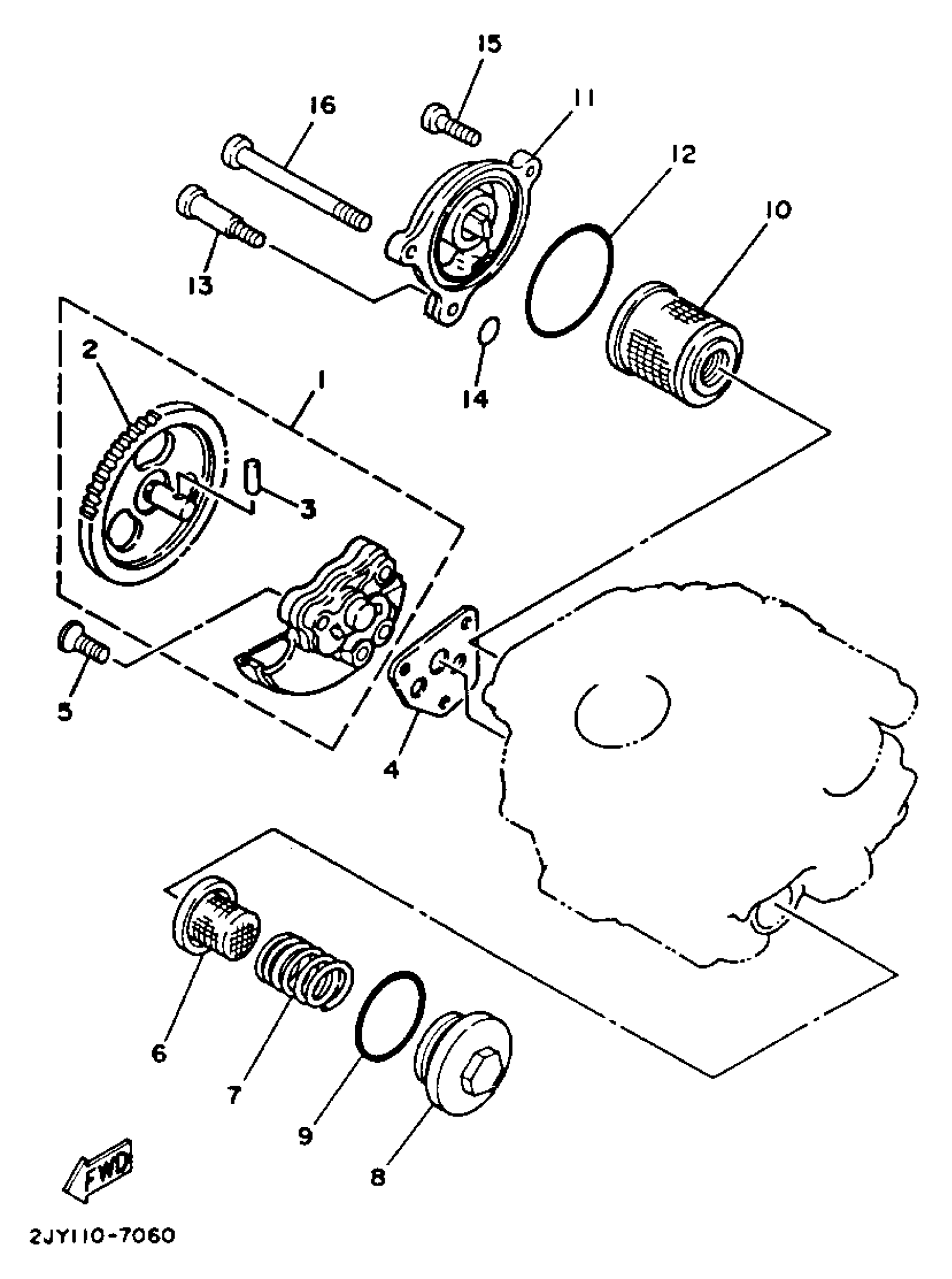

Yamaha TW200UC (TRAILWAY CA) 1988 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

5H0-13300-02-00

$136.79

2

GEAR, PUMP DRIVEN 2

5H0-13326-01-00

$35.24

3

. UNAVAILABLE IN PRICE BOOK

93603-10230-00

Unavailable

4

GASKET, PUMP COVER

3GD-13329-00-00

$6.03

5

SCREW, FLAT

98707-06030-00

$5.67

6

STRAINER, OIL

51Y-13411-00-00

$29.77

7

SPRING, COMPRESSION (3Y1)

90501-18576-00

$5.75

8

PLUG, DRAIN

5H0-15351-00-00

$23.67

9

O-RING

93210-347A1-00

$5.34

10

OIL CLEANER ASSY

5H0-13440-09-00

$9.39

11

COVER, OIL ELEMENT

15A-13447-01-00

Unavailable

12

O-RING (341)

93210-54175-00

$11.00

13

BOLT (583 OIL DRAIN)

90109-06419-00

$5.75

14

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$5.00

15

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

16

SCREW, PAN

98507-06075-00

Unavailable
