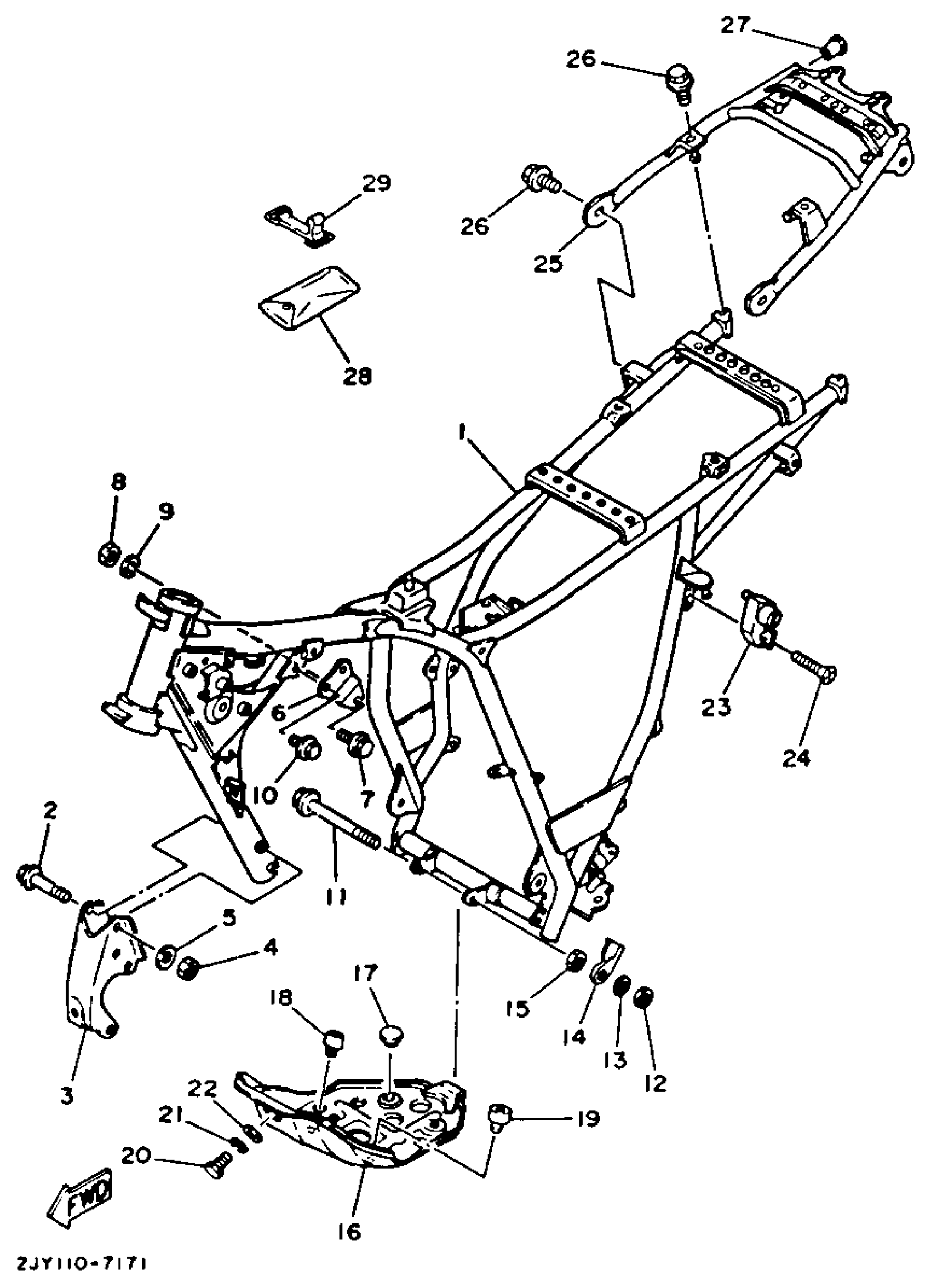

Find the part on the Frame diagram for your 1988 Yamaha Trailway CA (TW200UC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Yamaha Trailway CA (TW200UC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

3AW-21110-00-33

1
Out of stock

1

UNAVAILABLE IN PRICE BOOK

3A-W2111-00-0F

1
Out of stock

2

BOLT, FLANGE

95814-08065-00

1

$3.54

In stock

3

UNAVAILABLE IN PRICE BOOK

1R-L2131-60-0F

1
Out of stock

3

UNAVAILABLE IN PRICE BOOK

2J-X2131-60-0F

1
Out of stock

4

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

5

WASHER, PLATE (33N)

90201-094G1-00

1

$6.98

In stock

6

UNAVAILABLE IN PRICE BOOK

2J-X2131-50-00

1
Out of stock

7

BOLT, FLANGE

95817-08050-00

1

$3.15

In stock

8

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

9

WASHER, PLATE (33N)

90201-094G1-00

1

$6.98

In stock

10

BOLT WASHER BASED (1J7)

90105-08066-00

—

$6.82

In stock

11

BOLT, FLANGE(4EM)

95817-08120-00

1

$3.83

In stock

12

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

13

WASHER, PLATE (33N)

90201-094G1-00

1

$6.98

In stock

14

UNAVAILABLE IN PRICE BOOK

1R-L2133-70-00

1
Out of stock

15

NUT

90185-08055-00

—

$8.31

In stock

16

PROTECTOR, ENGINE

1RL-21471-00-35

—

$114.45

In stock

17

STOPPER, MAIN STAND

128-27114-00-00

—

$6.62

In stock

18

DAMPER, RUBBER 1

34L-21485-00-00

—

$18.72

In stock

19

STOPPER, MAIN STAND

4N0-27114-00-00

—
Out of stock

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

23

HELMET HANGER ASSY

26H-21308-01-00

—

$74.80

In stock

24

SCREW (3H1)

90149-06150-00

—
Out of stock

25

FRAME, REAR

2JX-21190-00-33

1
Out of stock

26

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

27

PLUG(EU0)

90605-50201-00

—

$3.49

In stock

28

TOOL KIT

2JX-28100-00-00

1
Out of stock

29

BAND, BATTERY

3TJ-82131-00-00

—

$19.40

In stock
