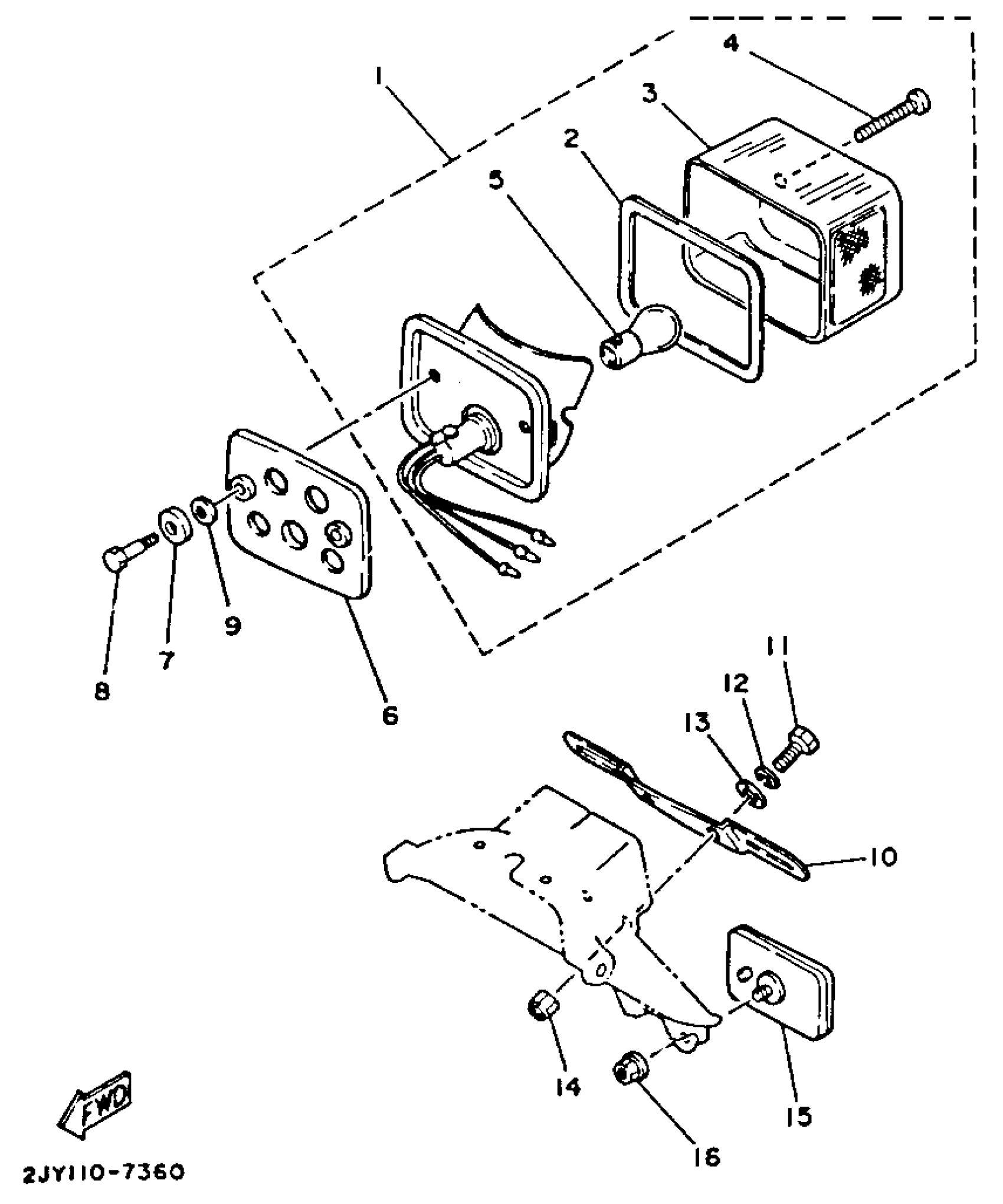

Yamaha TW200TC (TRAILWAY) 1987 TAILLIGHT Diagram

TAILLIGHT UNIT ASSY

1W9-84710-61-00

$110.99

GASKET, TAIL LENS

1M1-84523-60-00

$13.49

LENS, TAIL LAMP

1M1-84521-60-00

$39.99

SCREW, ADJUSTING

5BF-8433E-00-00

$7.99

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

DAMPER

4L0-84753-00-00

Unavailable

WASHER, SPECIAL (498)

90209-08125-00

$11.49

BOLT 337847520000

90109-06005-00

$7.49

WASHER, PLATE (4L0)

90201-083A0-00

$9.49

BRACKET, LICENCE

36A-84551-00-00

Unavailable

BOLT, HEXAGON

97017-06016-00

$8.49

WASHER, SPRING

92907-06100-00

$4.25

WASHER, PLATE

90201-06020-00

$9.49

NUT, SELF-LOCKING

95617-06100-00

$8.49

REAR REFLECTOR ASSY

4KM-85130-00-00

$22.99

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
